How to create Word and PDF documents from Typeform in Power Automate (Microsoft Flow) and Azure Logic Apps

This article demonstrates how to create PDF documents from a DOCX template on Typeform submission with the help of Processes in Power Automate (MS Flow). It may help you to automate the generation of different documents like applications, requests, orders, etc., in your company.

Processes are a Plumsail Documents feature with an intuitive interface for creating documents from templates.

Typeform is an online form builder that allows you to create modern responsive forms for your website.

Let’s see how to connect them in Power Automate (Microsoft Flow) to automatically collect data from a Typeform, apply the data to our template, and generate a new PDF document.

Create a Form

We’ve already created a Typeform. We will use data from its submission in our Flow. If you haven’t created Typeforms before, follow this link to learn how to do it.

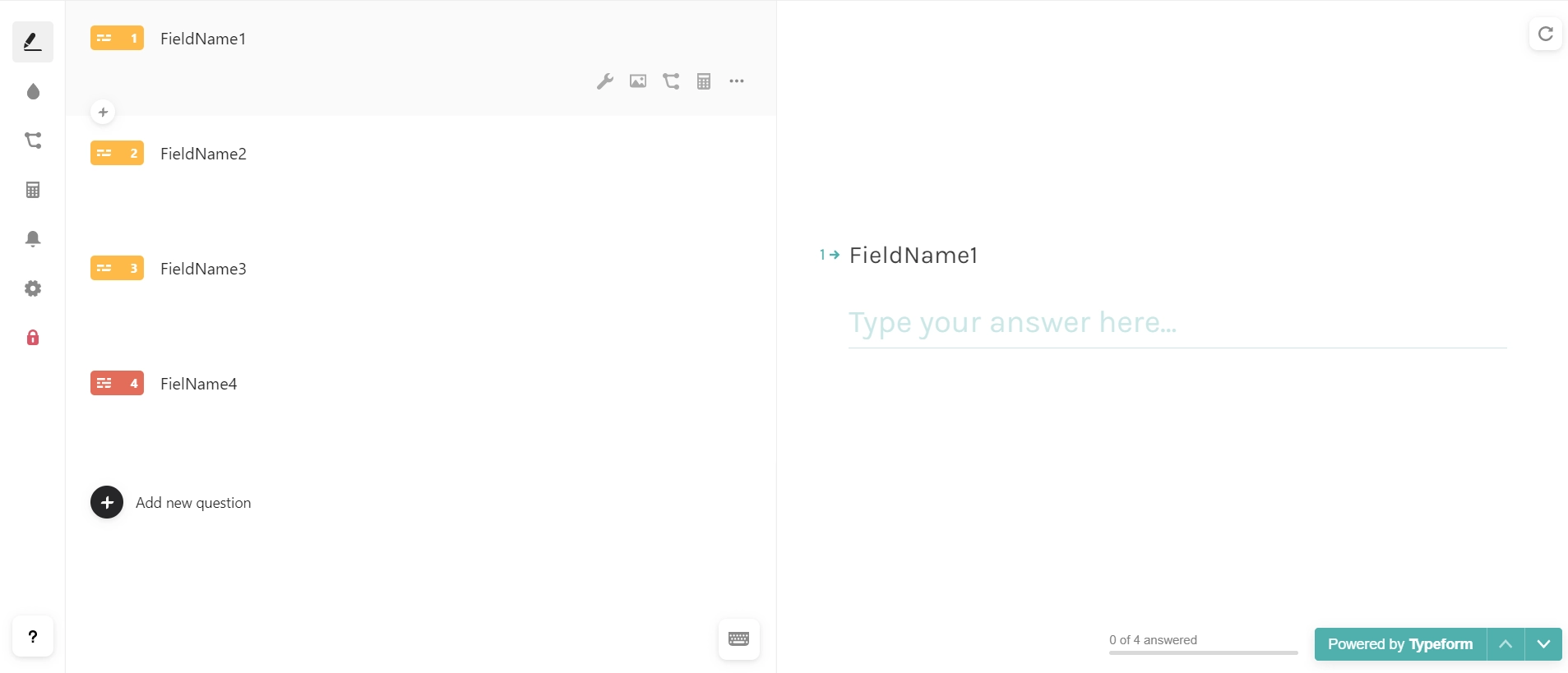

Below is a screenshot of our form:

Typeform

Configure the Process

Then, let’s configure the Process, which will generate PDF documents from a DOCX template.

Create a new process

Go to the Processes section in your Plumsail account.

Click on the Add process button.

add process button

Set the Process name. Select DOCX for a template type.

generate PDF from Typeform Forms

Configure a template

Once you’re done with the first step Create Process, press the Next button, and you’ll proceed to the next step – Configure Template.

It includes two substeps:

  • Editor;

  • Settings.

In Editor, you can compose the template from scratch or upload a pre-made one. It’s also possible to modify the uploaded template online.

Feel free to download a DOCX template that we’re using in this example for demonstration purposes:

Docx template

Then upload it to the process.

upload template file

Tempating syntax

When creating your own templates, mind the templating language. Plumsail Word DOCX templates use a different approach than most other templating solutions. It uses a minimal amount of syntax to make your work done.

In short, the templating engine thinks that everything between curly {{ }} brackets is variables where it will apply your specified data. Read this article to get familiar with the templating engine.

Test template

You can test a template as well, to see how it will look at the end. After clicking on the Test template button, you’ll need to fill in the auto-generated testing form. Fields of this form are created based on tokens from your document template. You can adjust the look of the testing form by changing token types.

test template

It’s testing. We’re going to apply the data from the Cognito form to our template.

Once you’ve tested the template, press Save&Next to proceed further - to the Settings substep.

  • Switch to an active mode to remove Plumsail watermarks from resulting documents

  • Fill in the name of the result file

  • Select PDF format for the output file

  • Protect the result PDF if you wish

Configure template

Delivery

The next step is delivery. For demonstrating purpose, we’ll store the result file in OneDrive. But there are other options.

Select the folder where the ready document will be saved. Fill in the file’s name.

create pdf from template on form submission

You can configure as many deliveries as you need.

Start the Process

We will start our Process from Power Automate (Microsoft Flow).

Create a Flow

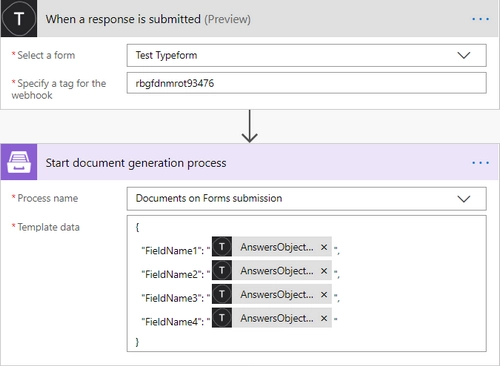

This is how our Flow looks:

pdf from Typeform flow

Check out the Flow steps described below.

Flow trigger

We need to start the Flow everytime somebody submits our Typeform. For that, search for Typeform in Power Automate and set Typeform - When a response is submitted as a trigger.

If this is your first Flow with Typeform, on this step, sign in to your Typeform Account from MS Flow to use your forms inside Flows.

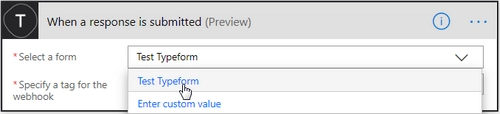

Then, you’ll need to pick the form you want to track in the dropdown.

typeform trigger

Start document generation process

This is the action from Plumsail Documents connector. This action is suitable for starting the Process of generating documents from a template. You can find more information about this action by visiting this page.

Using the action for the first time, you’ll be asked for ‘’Connection Name’’ and ‘’Access Key’’.

create flow connection

You can type any name for the connection. For example, ‘’Plumsail Documents’’.

Then create an API key in your Plumsail Account page, copy and paste it to ‘’Access Key’’ field.

The action has two parameters:

start generation documents action
  • Process name. Select the process you need from available ones.

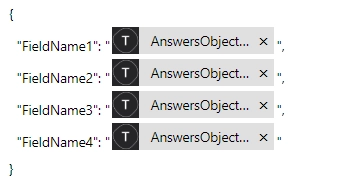

  • Template data. Specify source data in JSON format:

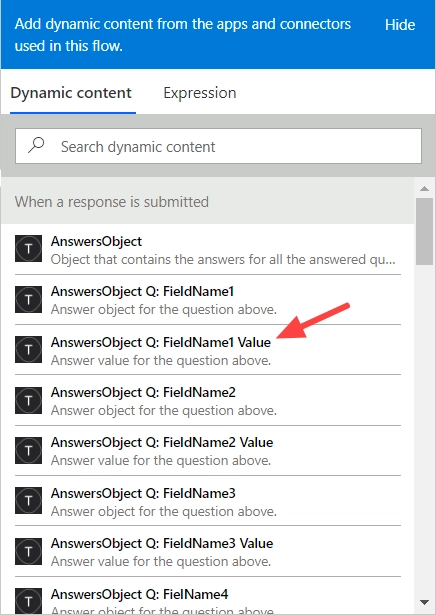

dynamic content of Typeform is submitted

This object contains information from our form. We selected the dynamic content from the output of Typeform - When a response is submitted action:

dynamic content of Typeform is submitted

Use the ready document in Flow

You can stop on the step Start document generation process.

Steps described above are enough for generating PDFs from a DOCX template based on the Typeform submission. Your result file will be saved to OneDrive in this case. See how it will look:

pdf from Typeform result file

But if you need an advanced logic, it’s possible to work with the result file right in the Flow.

Here is an example of how you can send the ready document for approval.

Add an action Create an approval from the Approvals connector. Select an output of the previous step for an attachment.

send pdf for approval

Sign up for Plumsail Documents

As you can see, it’s simple to automize the generation of documents on Typeforms submission. If you’re new to Plumsail Documents, register an account to get a free 30-day trial.

Hint

You can generate PDFs from Web Forms even without Power Automate (Microsoft Flow). Check the article How to generate PDF documents from a DOCX template on Plumsail Forms submission.
