Create Word and PDF documents from Typeform in Zapier
This article demonstrates how to create PDF documents from a DOCX template on Typeform submission with the help of Processes in Zapier. It may help you to automate the generation of different documents like applications, requests, orders, etc., in your company.
Processes are a Plumsail Documents feature with an intuitive interface for creating documents from templates.
Typeform is an online form builder that allows you to create modern responsive forms for your website.
Let’s see how to connect them in Zapier to automatically collect data from a Typeform, apply the data to our template, and generate a new PDF document.
Create a Form
We’ve already created a Typeform. We will use data from its submission in our Flow. If you haven’t created Typeforms before, follow this link to learn how to do it.
Below is a screenshot of our form:
Configure the Process
Then, let’s configure the Process, which will generate PDF documents from a DOCX template.
Create a new process
Go to the Processes section in your Plumsail account.
Click on the Add process button.
Set the Process name. Select DOCX for a template type.
Configure a template
Once you’re done with the first step Create Process, press the Next button, and you’ll proceed to the next step – Configure Template.
It includes two substeps:
Editor;
Settings.
In Editor, you can compose the template from scratch or upload a pre-made one. It’s also possible to modify the uploaded template online.
Feel free to download a DOCX template that we’re using in this example for demonstration purposes:
Then upload it to the process.
Tempating syntax
When creating your own templates, mind the templating language. Plumsail Word DOCX templates use a different approach than most other templating solutions. It uses a minimal amount of syntax to make your work done.
In short, the templating engine thinks that everything between curly {{ }} brackets is variables where it will apply your specified data.
Read this article to get familiar with the templating engine.
Test template
You can test a template as well, to see how it will look at the end. After clicking on the Test template button, you’ll need to fill in the auto-generated testing form. Fields of this form are created based on tokens from your document template. You can adjust the look of the testing form by changing token types.
It’s testing. We’re going to apply the data from the Cognito form to our template.
Once you’ve tested the template, press Save&Next to proceed further - to the Settings substep.
Switch to an active mode to remove Plumsail watermarks from resulting documents
Fill in the name of the result file
Select PDF format for the output file
Protect the result PDF if you wish
Delivery
The next step is delivery. For demonstrating purpose, we’ll store the result file in OneDrive. But there are other options.
Select the folder where the ready document will be saved. Fill in the file’s name.
You can configure as many deliveries as you need.
Start the Process
We will start our Process from Zapier.
Create a Zap
Zap is an automated connection between web services in Zapier. You can create it from scratch following the steps explained below.
Or you can utilize the zap template. Click Use this zap, and then just customize the steps as it’s described further in this article.
This is how our Zap looks:
Below is a step-by-step description.
New entry in Typeform
We need to start the Zap everytime somebody submits our Typeform. For that, search for Typeform in Zapier and add New entry as a trigger.
If this is your first Zap with Typeform, on this step, sign in to your Typeform Account from Zapier to use your forms inside Zaps.

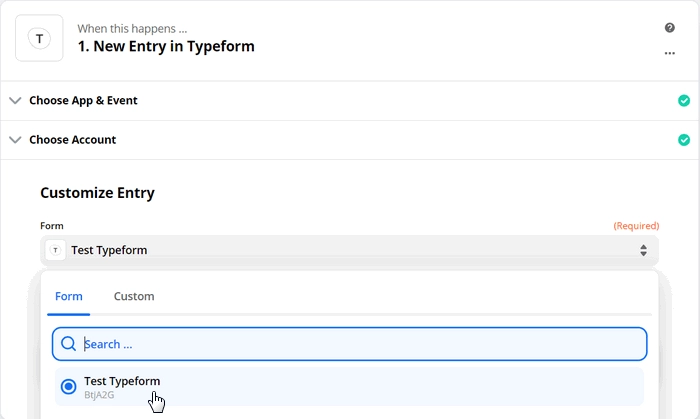

Then, you’ll need to pick the form you want to track in the dropdown.

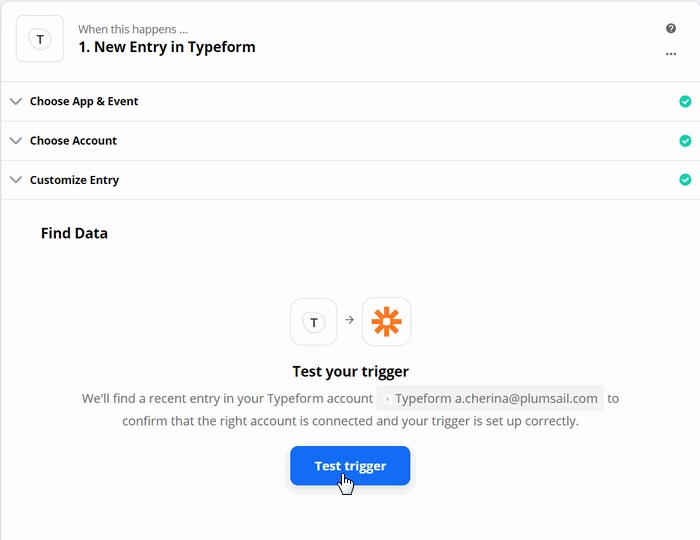

The last thing to do with the trigger - Find data. Press “Test trigger” to find data. It will allow you to use the trigger output on the next step.
Start process in Plumsail Documents

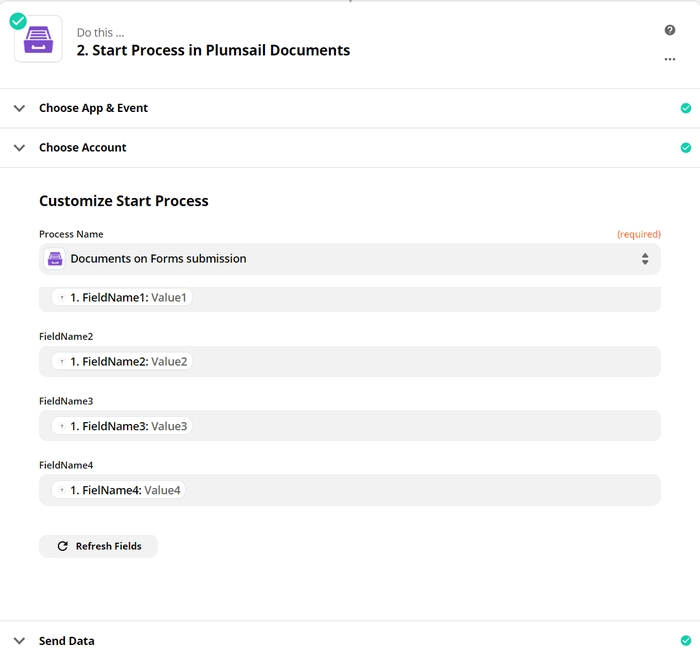

Once the trigger is set, search for Plumsail Documents and add an action Start process.
Click Continue. If this is your first Zap, at this point, you’ll need to Sign in to your Plumsail Account from Zapier to establish a connection between the app and your account. If you already have a Plumsail account tied to the app, you can add another one at this step, and use it instead.
Sign up for Plumsail Documents
As you can see, it’s simple to automize the generation of documents on Typeforms submission. If you’re new to Plumsail Documents, register an account to get a free 30-day trial.
