Create documents from template in Zapier and sign them using signNow

In this article, we will show you how to create documents from a template using processes and sign them with the help of signNow.

Processes are a Plumsail Documents feature with an intuitive interface for creating documents from templates.

signNow is an electronic signature cloud-based software which allows to sign and manage documents on any device. If you have not tried it yet, you can register a free signNow trial account.

We will connect these tools in Zapier to automize the documents exchange and signing. As a result, we will get the sales contract signed electronically:

The contract signed with signNow

Configure process

Before creating a flow, we need to set a process that will create a PDF purchase agreement from a DOCX template.

Create new process

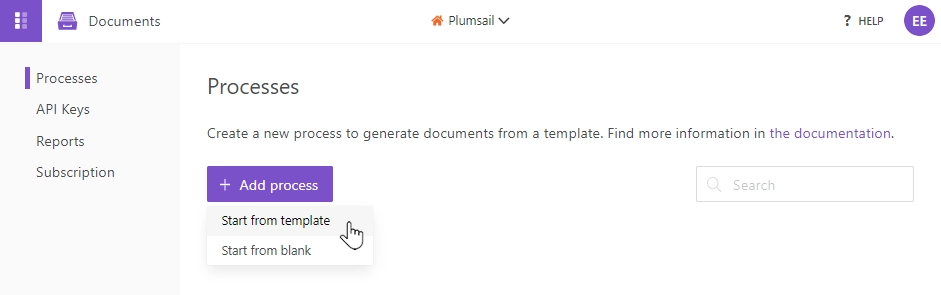

Go to the Processes section in your Plumsail account. Click the Add process button and start from a ready template.

Add process button

Find the sales of goods contract as on the screenshot below, it suits the approach described in this article.

Choose template

Name the process and go to the next step.

Name process

Configure template

Once you are done with the first step Create process, press the Next button and you will jump to the next step – Configure Template. There you will find two substeps:

  • Editor and

  • Settings.

In Editor, you can compose document templates online, or upload pre-made ones and modify them in case of need. It is also possible to modify the current template online if you wish to change the logo or adjust it to your use case.

Edit template

Templating syntax

When creating your own templates, mind the templating language. Plumsail Word DOCX templates use a different approach than most other templating solutions. It uses a minimal amount of syntax to make your work done.

In short, the templating engine thinks that everything between {{curly}} brackets is variables where it will apply your specified data. Read this article to get familiar with the templating engine.

Insert signing tags into the template

At the end of the sales contract template, we put special tags to define the location of signatures and other related fields for signers. These tags are from signNow; they ease the process of signing. Each signer will see where to place his signature and what fields are required to complete.

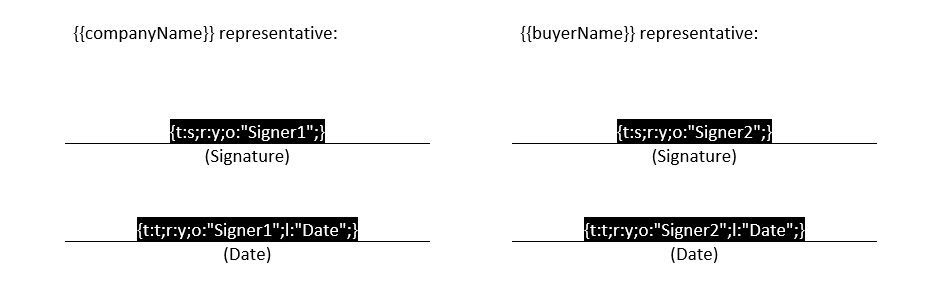

This is how tags should look in the document template. Color them white to hide the tags. For demonstrating purposes, they are highlighted black on the screenshot below:

signNow signature tags

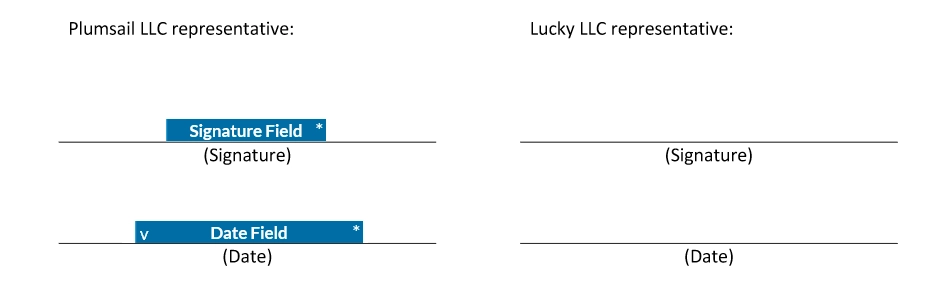

This is how they will appear for a signer:

signNow signature tags result

It is easy to compose such signature tags. The logic is that they include a series of options in a specific order, divided with a ; symbol, and the whole tag is wrapped by {curly brackets}.

For instance, the option going first is a field type. In our template, we have such types as s (for signature) and t. Learn more about using signNow signature and other related tags.

Test template

After you have uploaded the template to the process, you will see the template preview. To get a sight of the resulting document, click the Test template button. You will see a form that is based on your template tokens. You can adjust the default form. Find more information in the documentation.

Test template

To test the DOCX template from the example, fill the fields with some data.


This is testing. You can pass data from an external system or web form to the process. See the Start process section.

Customize output file

On the Settings substep, you customize parameters of the output file.

Configure template

Mode. It affects whether the resulting file will have a Plumsail watermark or not. In the Testing mode, it will, but you will not pay for executions. In the Active one, it will not have the watermark; each process run will spend one credit.

Output filename. Use tokens from the document template to personalize the document name. They will work exactly the same way as in the template.

Output type. By default, it is the same as the template’s. You can change it to PDF like we did.

Additionally, it is possible to set a locale, protect the resulting PDF file with a watermark or other security settings, and manage the document numbering.


The next step is delivery. For demonstrating purpose, we will store the result file in OneDrive. But there are other options.

Select the folder where the ready document will be saved.

OneDrive delivery

You can configure as many deliveries as you need.

Start process

We will start our process from Zapier.


Instead of adding the signNow actions to your Zap, you can use a direct integration on the previous step - a signNow delivery.

Create a Zap

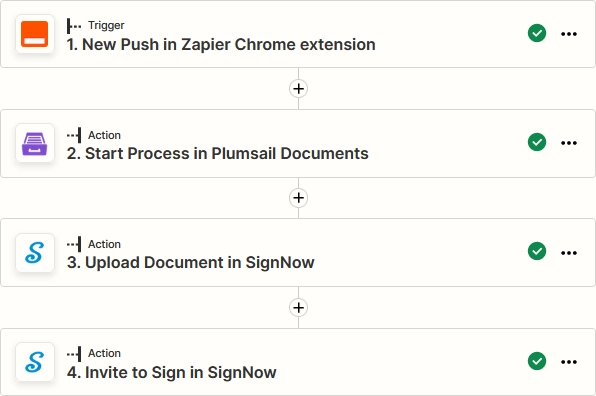

Zap is an automated connection between web services in Zapier. This is how our Zap looks:

Zap create contract and sign

Check out the Zap steps described below.

Zap trigger

After you have opened My Zaps, create a new one and select a trigger. You can pick any, for example, trigger a Zap when an opportunity in your CRM is closed, or a web form is submitted, or some others. We will pick Push by Zapier just for demonstration purposes. This kind of trigger enables you to start Zaps manually by Zapier extension for Google Chrome.

Start process in Plumsail Documents

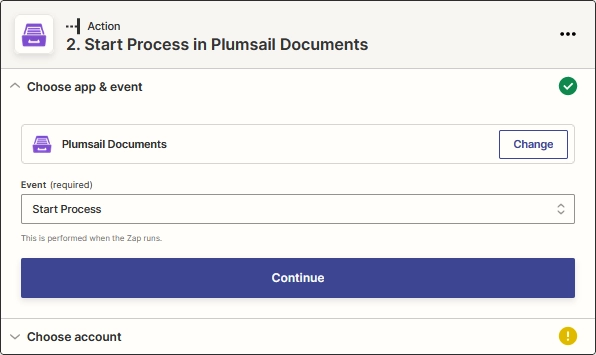

Once the trigger is set, search for Plumsail Documents and add an action Start Process.

Start process from Zapier action

Click Continue. If this is your first Zap, at this point, you will need to sign in to your Plumsail Account from Zapier to establish a connection between the app and your account. If you already have a Plumsail account tied to the app, you can add another one at this step, and use it instead.

Customize Start Process

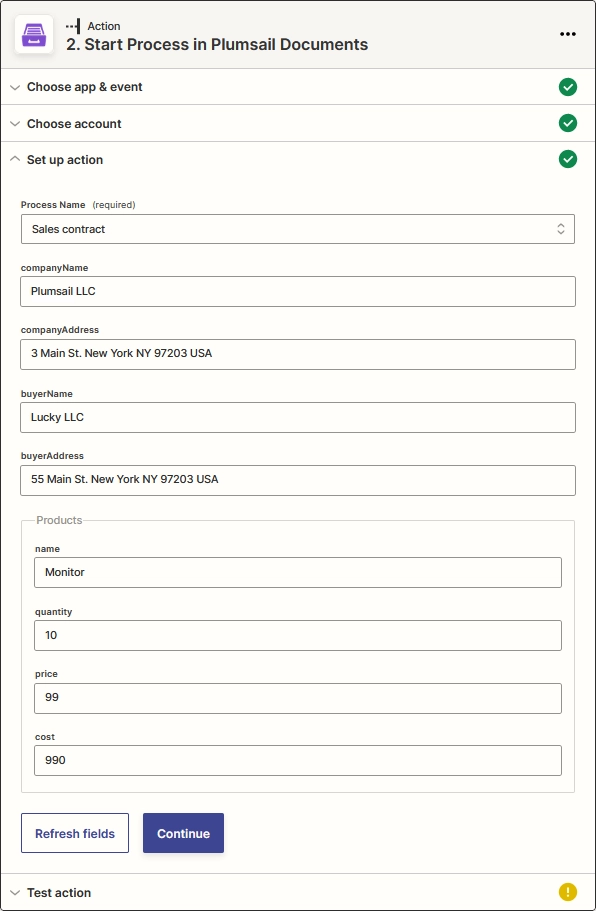

Choose the process you want to start by this Zap from the dropdown. You may see fields to complete - they have the same names as tokens from the template. Actually, these fields are created based on the tokens. You need to fill in them to populate the template.

We used the same values as in testing the template.

Specify data to populate template

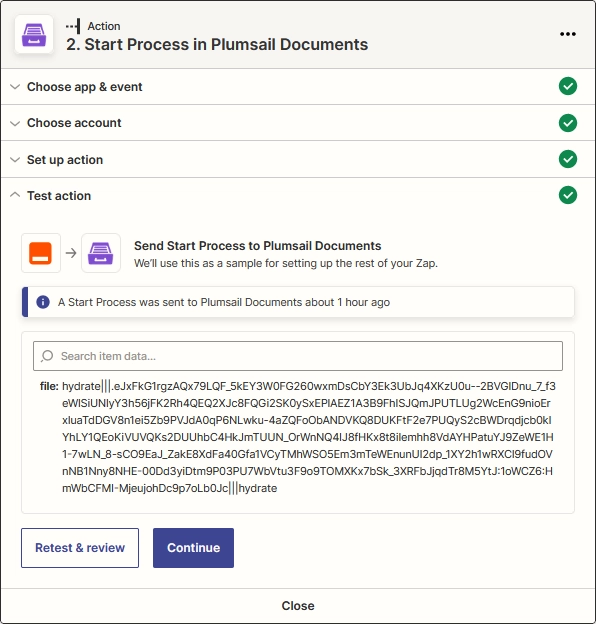

Do not skip testing the ‘Start process action’. It is necessary to do to be able to use the output further in the Zap.

Test Plumsail action

Upload document

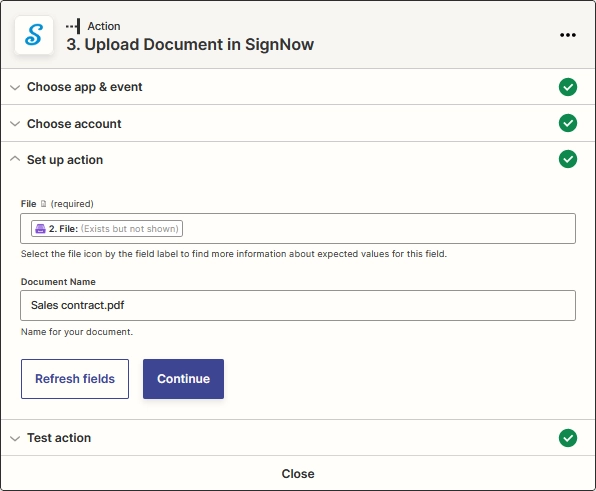

This action is from the signNow integration for Zapier. It will upload the agreement to the signNow account. After that, we can send the document for signature. In the File field put File (Exists but not shown) – output of the ‘Start process in Plumsail Documents’ step. Give a name to the document uploaded to signNow and press Continue.

Upload document action

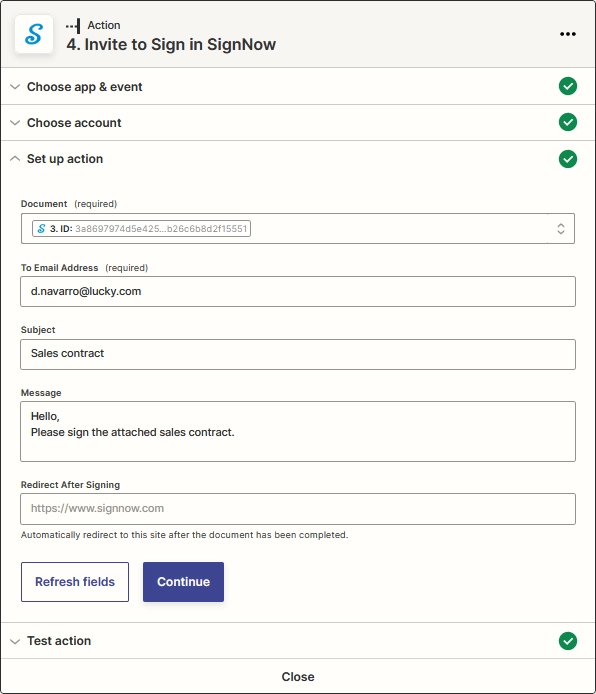

Invite to sign

The last action is from the signNow integration too. It sends the contract for signing.

Invite to sign action

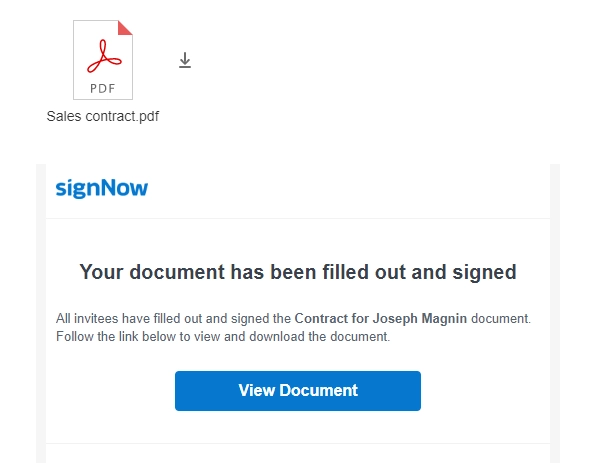

Once the agreement has been signed, you will receive a notification email with the signed document attached.

Email notification
