Power Automate actions and triggers
This connector helps you to automatically generate and convert documents with the help of Power Automate (Microsoft Flow). Before starting, ensure that you added Plumsail Documents connector to Power Automate (Microsoft Flow).
Triggers
The connector has only one trigger. Find it below.
Process finished
The Power Automate trigger starts when a process of document generation is finished.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
Result file’s URL |
URL with the content of the result file generated by a process. |
URL to the blob file. https://actions.blob.core.windows.net/data-storage/ |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Process name |
Select the name of your process from the list of available processes. |
Generate sales contract from template |
Example
Actions
Find all available actions below.
Start document generation process
Starts a process of document generation. Processes are an easy way to automate the creation of documents from templates. You just configure template, test it and specify how to deliver results (email, OneDrive, etc.).
This action automatically adds inputs to the Power Automate interface for entering values based on your template tokens from the process. It may not support deeply nested tokens, and if the Power Automate interface lacks certain inputs, it indicates that the action doesn’t support this kind of nested token structure. In this case, switch to the Start document generation process with JSON action.
Check out the article describing how to use this action.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
Result file |
The content of the result file generated by a process. |
It is the content of the result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Process name |
Select the name of your process from the list of available processes. |
Create employee card |
Properties values or JSON content |
Data to bind to the template. You can get this data from some other Power Automate (Microsoft Flow) connector. For example you can query SharePoint list or some other system. |
You can either enter property values into the automatically generated fields or switch to JSON mode. This is the JSON data example: [
{
"FirstName": "David",
"LastName": "Navarro",
"Email": "d.navarro@contoso.com",
"Photo": "https://picture-public-url"
}
]
|
Example
You can also switch to the JSON mode and enter a JSON.
Start document generation process with JSON
The action does the same as Start document generation process but it only works with JSON data.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
Result file |
The content of the result file generated by a process. |
It is the content of the result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Process name |
Select the name of your process from the list of available processes. |
Create invoice |
Template data |
Data to bind to the template in JSON format. You can get this data from some other Power Automate (Microsoft Flow) connector. For example you can query SharePoint list or some other system. |
JSON data for generating an invoice: {
"companyAddress": "3 Main St.New York NY 97203 USA",
"companyEmail": "sales@sample.com",
"companyPhone": "202-555-0131",
"invoiceNumber": "432",
"total": "18872.94",
"items": [
{
"name": "Monitor",
"quantity": "10",
"cost": "990"
},
{
"name": "Stepler",
"quantity": "1000",
"cost": "12440"
}
]
}
|
Example
Create DOCX document from template
Creates Word DOCX document from template. Review Word DOCX templates section for more information about template syntax.
We have an article describing how to work with this action in case of managing documents.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
The content of the result .docx or .pdf file. |
It is the content of the result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Template file |
The raw content of the source .docx template file. You can extract file content from other connectors like:
|
Review Word DOCX templates section for more information about template syntax. Example of simple table template:
|
data |
Data to bind to the template in JSON format. You can get this data from some other Power Automate (Microsoft Flow) connector. For example you can query SharePoint list or some other system. |
[
{
"firstName": "Efren",
"lastName": "Gaskill",
"email": "egaskill0@opensource.org",
"payments": [
{
"date": "3/10/2018",
"amount": "$8.91"
},
{
"date": "1/7/2018",
"amount": "$0.56"
}
]
}
]
|
Document output type |
You can select the output type of the resulting file: DOCX or PDF. |
DOCX or PDF output. |
Locale |
An optional parameter that allow to specify the desired regional culture format. You can pick the value from predefined list. If you don’t specify value, default value will be “en-US” (english, USA). All allowable regional culture formats you can find here |
Example
Create PPTX document from template
Creates PPTX presentation from template. Review PowerPoint PPTX templates section for more information about template syntax.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
The content of the result .pptx or .pdf file. |
It is the content of the result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Template file |
The raw content of the source .pptx template file. You can extract file content from other connectors like:
|
Review PowerPoint DOCX templates section for more information about template syntax. Example of simple slide template:
|
Template data |
Data to bind to the template in JSON format. You can get this data from some other Power Automate (Microsoft Flow) connector. For example you can query SharePoint list or some other system. |
[
{
"CompanyName": "Contoso",
"CompanyEmail": "support@contoso.com",
"Products": [
{
"Name": "Documents",
"Price": "starting from $29.99/month"
},
{
"Name": "Actions",
"Price": "starting from $29.99/month"
}
]
}
]
|
Document output type |
You can select the output type of the resulting file: PPTX or PDF. |
PPTX or PDF output. |
Locale |
An optional parameter that allow to specify the desired regional culture format. You can pick the value from predefined list. If you don’t specify value, default value will be “en-US” (english, USA). All allowable regional culture formats you can find here |
Example

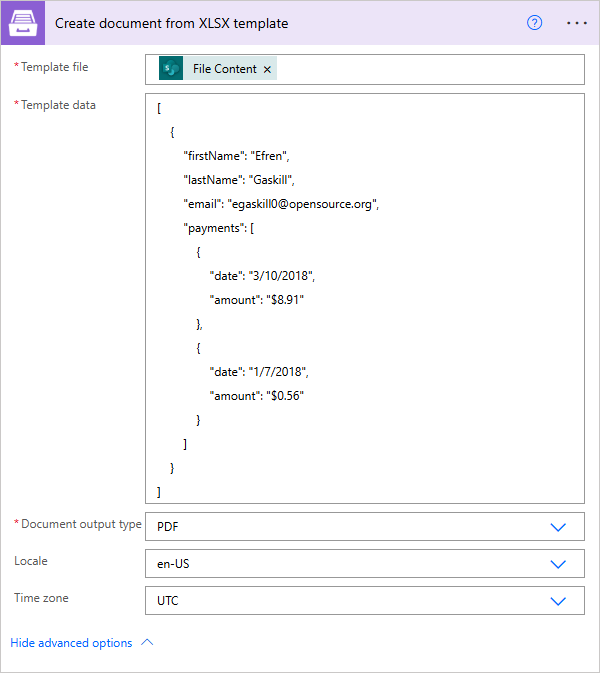

Create XLSX document from template
Creates Word XLSX document from template. Review Excel XLSX templates section for more information about template syntax.
Also there is an article describing how to work with this action in case of managing documents.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
The content of the result .xlsx or .pdf file. |
It is the content of the result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Template file |
The raw content of the source .xlsx template file. You can extract file content from other connectors like:
|
Review Word XLSX templates section for more information about template syntax. Example of simple table template:
|
Template data |
Data to bind to the template in JSON format. You can get this data from some other Power Automate (Microsoft Flow) connector. For example you can query SharePoint list or some other system. |
[
{
"firstName": "Efren",
"lastName": "Gaskill",
"email": "egaskill0@opensource.org",
"payments": [
{
"date": "3/10/2018",
"amount": "$8.91"
},
{
"date": "1/7/2018",
"amount": "$0.56"
}
]
}
]
|
Document output type |
You can select the output type of the resulting file: XLSX or PDF. |
XLSX or PDF output. |
Locale |
An optional parameter that allow to specify the desired regional culture format. You can pick the value from predefined list. If you don’t specify value, default value will be “en-US” (english, USA). All allowable regional culture formats you can find here |
Example
Create HTML from template
Generates raw HTML from a raw HTML template with the help of Power Automate (Microsoft Flow). You can find more examples in this article.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
Result HTML |
Raw HTML result created from a source HTML template. |
<!doctype html>
<html>
<head>
<meta charset="utf-8">
<title>HTML from template</title>
</head>
<body>
<ul>
<li>David Navarro </li>
<li>Jessica Adams</li>
<li>Derek Clark</li>
</ul>
</body>
</html>
|
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Source HTML |
HTML content of a source template. You can specify raw HTML here or extract file content from other connectors like:
|
You can find description of template syntax in this article. <!doctype html>
<html>
<head>
<meta charset="utf-8">
<title>HTML from template</title>
</head>
<body>
<ul>
{{#each data}}
<li>{{name}}</li>
{{/each}}
</ul>
</body>
</html>
|
Template data |
Data to bind to the template in JSON format. You can get this data from some other Power Automate (Microsoft Flow) connector. For example you can query SharePoint list or some other system. |
{
"data": [
{
"name": "David Navarro "
},
{
"name": "Jessica Adams"
},
{
"name": "Derek Clark"
}
]
}
|
Locale |
An optional parameter that allow to specify the desired regional culture format. You can pick the value from predefined list. If you don’t specify value, default value will be “en-US” (english, USA). All allowable regional culture formats you can find here |
Example
Fill Merge Fields in DOCX document
Creates .docx document by filling merge fields in a .docx document with the help of Power Automate (Microsoft Flow). You can find more examples in this article.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
The content of the result .docx file. |
It is a Base64 encoded content of the result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
DOCX document content |
The raw content of the source .docx file with merge fields. You can extract file content from other connectors like:
|
You can find insturctions about creation of a document with merge fields in this article. Use this link to download the sample document. |
Template data |
Data in JSON format that will be used to fill merge fields in the source document. You can get this data from some other Power Automate (Microsoft Flow) connector. For example you can query SharePoint list or some other system. |
{
"EmployerFullName": "David Navarro",
"EmployeeFullName": "Anil Mittal",
"CompanyName": "Contoso LLC",
"Position": "Marketing manager",
"SalaryAmount": 5000,
"ListOfBenefits": "list of any benefits that come with employment",
"BonusesPolicyDescription": "annual evaluation",
"EffectiveDate": "10/27/2017",
"TerminationDate": "10/27/2018",
"State": "New York"
}
|
Example
Convert DOCX to PDF
Converts .docx document to PDF document with the help of Power Automate (Microsoft Flow). You can find more examples in this article.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
The content of the result PDF file. |
It is a Base64 encoded content of the result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Document content |
The raw content of the source .docx file. You can extract file content from other connectors like:
|
It is content of the source file. |
Example
Convert XLSX to PDF
Converts .xlsx document to PDF document with the help of Power Automate (Microsoft Flow). You can find more examples in this article.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
The content of the result PDF file. |
It is a Base64 encoded content of the result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Document content |
The raw content of the source .xlsx file. You can extract file content from other connectors like:
|
It is content of the source file. |
Example
Convert DOC to DOCX
Converts .doc document to .docx document with the help of Power Automate (Microsoft Flow).
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
The content of the result DOCX file. |
It is a Base64 encoded content of the result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Document content |
The raw content of the source .doc file. You can extract file content from other connectors like:
|
It is content of the source file. |
Example

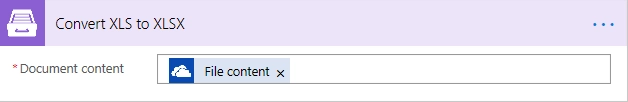

Convert XLS to XLSX
Converts .xls document to .xlsx document with the help of Power Automate (Microsoft Flow). Find the description of how to bulk convert .xls to .xlsx in this article.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
The content of the result XLSX file. |
It is a Base64 encoded content of the result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Document content |
The raw content of the source .xls file. You can extract file content from other connectors like:
|
It is content of the source file. |
Example
Convert PPT to PPTX
Converts .ppt document to .pptx document with the help of Power Automate (Microsoft Flow).
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
The content of the result PPTX file. |
It is a Base64 encoded content of the result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Document content |
The raw content of the source .ppt file. You can extract file content from other connectors like:
|
It is content of the source file. |
Example
Convert PPTX to PDF
Converts .pptx document to PDF document with the help of Power Automate (Microsoft Flow).
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
The content of the result PDF file. |
It is a Base64 encoded content of the result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Document content |
The raw content of the source .pptx file. You can extract file content from other connectors like:
|
It is content of the source file. |
Example
Convert HTML to PDF
Converts HTML document to PDF document with the help of Power Automate (Microsoft Flow). You can find more examples in this article.
Note
There could be an issue converting certain symbols such as £. Add the following line in the HTML head element
<meta http-equiv=”Content-Type” content=”text/html; charset=UTF-8”>
You can find more information about using custom fonts with Convert HTML to PDF action here.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
The content of the result PDF file. |
It is a Base64 encoded content of the result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Source HTML |
HTML content of a source file. You can specify raw HTML here or extract file content from other connectors like:
|
<!doctype html>
<html>
<head>
<meta charset="utf-8">
<title>HTML to PDF example
<style>
div {
border: 1px solid lightgray;
padding: 5px;
float: left;
}
</style>
</head>
<body>
<div>
Text in box1
</div>
<div>
Text in box2
</div>
</body>
</html>
|
Header HTML (Modern engine) |
HTML markup that should be added as a Header. If you want to use styles, add CSS directly to the Header HTML code. |
<!DOCTYPE html>
<html>
<head>
<title>Test</title>
</head>
<body id="header" style="margin-bottom: 130px;">
<div style="font-size:10px !important; color:#808080; padding-left:10px">
This is header
<br/>
Title: <span class="title"></span>
</div>
</body>
</html>
|
Footer HTML (Modern engine) |
HTML markup that should be added as a Footer. If you want to use styles, add CSS directly to the Footer HTML code. Also, with the Modern Engine you can use pageNumber and totalPages as a class of an element to automatically add the values. PageNumber: <span class="pageNumber"></span>
<br/>
TotalPage: <span class="totalPages"></span>
|
<!DOCTYPE html>
<html>
<head>
<title>Test</title>
</head>
<body id="footer">
<div style="font-size:10px !important; color:#808080; padding-left:10px">
Footer Text.
<br/>
PageNumber: <span class="pageNumber"></span>
<br/>
TotalPage: <span class="totalPages"></span>
<br/>
<p>email: <a>contact@plumsail.com</a>.</p>
</div>
</body>
</html>
|
Header HTML (Classic engine) |
HTML markup that should be added as a Header. |
<!DOCTYPE html>
<html>
<head>
<title></title>
</head>
<body>
This is header
</body>
</html>
|
Footer HTML (Classic engine) |
HTML markup that should be added as a Footer. |
<!DOCTYPE html>
<html>
<head>
<title></title>
</head>
<body>
This is footer
</body>
</html>
|
Paper Size |
Paper size for output PDF file. |
|
Orientation |
Page orientation for output PDF file. |
|
Margins |
The page margins in millimeters. The syntax is the same as in CSS. |
This will set top margin as 25mm, right margin as 50mm, bottom margin as 75mm, left margin ias 100mm. |
Engine |
Defines what engine is used when converting the source HTML to PDF. |
|
Example
Add watermark to PDF
“Add watermark to PDF” action support a few types of watermarks: Text, Image, PDF. You can find examples on how yo use the action here.
When you added this action to your Flow, you need to pick of those: text, image, pdf.
You can find the documentation for all watermark types included in “Add watermark to PDF” action below:

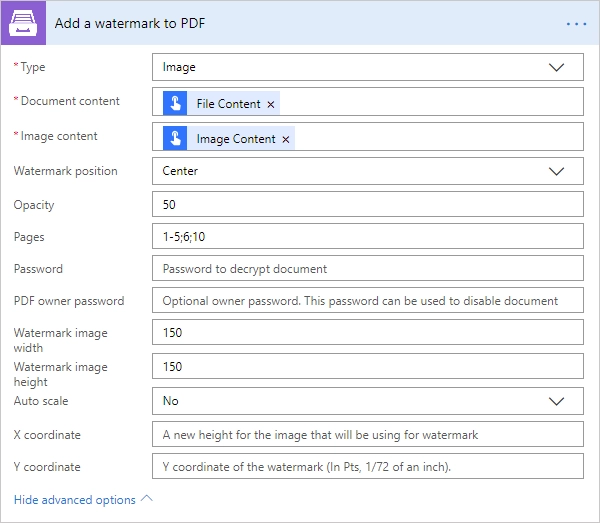

Add image watermark to PDF
Please, see a detailed example here.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
The content of the result PDF file. |
It is a Base64 encoded content of the result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Document content |
Raw content of PDF document. |
You may get the content of the source PDF file by “Get file content” action from “SharePoint” connector or from some other connector. You may use this link to download a sample 10 pages PDF file. |
Image content |
Raw content of image source. Available extensions: png, tiff, jpg, webp, gif, bmp, svg. |
You may get the content of the source image file by “Get file content” action from “SharePoint” connector or from some other connector. |
Watermark position |
You can select one of the predefined position of watermark on the page. Available preset positions on the document page:
|
MiddleRight |
Opacity |
The degree of transparency of the watermark image. This is a percentage value. |
50 |
Pages |
The range of pages or a list of page numbers delimited by ‘;’. |
|
Password |
The password to decrypt the source document. If it was encrypted earlier. |
PAs$word |
PDF owner password |
Enter an optional owner password here. This password can be used to disable document restrictions. |
OwNEr_PAs$word |
Watermark image width |
A new width of the image that will be used for watermark. If set - source image will be resized |
150 |
Watermark image height |
A new height of the image that will be used for watermark. If set - source image will be resized |
100 |
Auto scale |
If true, the image will be scaled as close as possible to the values given in Width and Height while maintaining the original proportions. Otherwise, the image will be converted to the specified Height and Width without preserving the proportions. |
true |
X coordinate |
Absolute X coordinate value. If the predefined positions (see “Watermark position”) do not suit you, then you can set the desired location of the watermark using absolute coordinates. The origin in the bottom left corner. See the picture
If set - “Watermark position” parameter will be ignored |
50 |
Y coordinate |
Absolute Y coordinate value. If set - “Watermark position” parameter will be ignored |
50 |
Example
Add text watermark to PDF
Please, see a detailed example here.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
The content of the result PDF file. |
It is a Base64 encoded content of the result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Document content |
Raw content of PDF document. |
You may get the content of the source PDF file by “Get file content” action from “SharePoint” connector or from some other connector. You may use this link to download a sample 10 pages PDF file. |
Text content |
Text that will be used as watermark |
watermark test |
Angle |
The rotation angle of the text. The value in degrees. |
45 |
Color |
Hex value of html color. You can select the desired color using this tool https://www.w3schools.com/colors/colors_picker.asp |
|
Watermark position |
You can select one of the predefined position of watermark on the page. Available preset positions on the document page:
|
MiddleRight |
Opacity |
The degree of transparency of the watermark image. This is a percentage value. |
50 |
Pages |
The range of pages or a list of page numbers delimited by ‘;’. |
|
Password |
The password to decrypt the source document. If it was encrypted earlier. |
PAs$word |
PDF owner password |
Enter an optional owner password here. This password can be used to disable document restrictions. |
OwNEr_PAs$word |
X coordinate |
Absolute X coordinate value. If the predefined positions (see “Watermark position”) do not suit you, then you can set the desired location of the watermark using absolute coordinates. The origin in the bottom left corner. See the picture
If set - “Watermark position” parameter will be ignored |
50 |
Y coordinate |
Absolute Y coordinate value. If set - “Watermark position” parameter will be ignored |
50 |
Example
Add pdf watermark to PDF
Please, see a detailed example here.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
The content of the result PDF file. |
It is a Base64 encoded content of the result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Document content |
Raw content of PDF document. |
You may get the content of the source PDF file by “Get file content” action from “SharePoint” connector or from some other connector. You may use this link to download a sample 10 pages PDF file. |
PDF watermark document |
Raw content of the PDF file that will be used as a watermark. |
You may use this link to download a sample PDF file for using as PDF watermark. |
Overlay position |
You can select one of the predefined layer for overlay rendering position. Available preset positions:
|
Background |
Pages |
The range of pages or a list of page numbers delimited by ‘;’. |
|
Example
Split PDF
Split PDF document with the help of Power Automate (Microsoft Flow). You can find more examples in this article.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
Result Files Contents |
The array of raw content of result files. |
It is an array of Base64 encoded files. You can iterate through them and save them somewhere. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
PDF Document Content |
Raw content of PDF document. |
You may get the content of the source PDF file by “Get file content” action from “SharePoint” connector or from some other connector. You may use this link to download a sample 10 pages PDF file. |
Start Page |
Index of the first page to start split from (indexes start from 1). |
3 |
End Page |
Index of the last page to split (inclusive). By default will use the last page of the source document. |
7 |
Split at Page |
Number of pages per partition. |
2 |
Password |
The password to decrypt the source document. If it was encrypted earlier. |
PAs$word |
Example
Merge PDF
Merge PDF document with the help of Power Automate (Microsoft Flow). Please, see a detailed example here.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
Raw content of the result file. |
It is a Base64 encoded content of the result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
PDF Documents Content |
The array of raw content of PDF documents. |
You may get the content of the source PDF file by “Get file content” action from “SharePoint” connector or from some other connector. |
Example
You can add individual files:
You can also input an array of files. Click an icon on the right to switch to the view where you can input an entire array and select the array from the dynamic content in Power Automate:
Merge DOCX
Merge DOCX document with the help of Power Automate (Microsoft Flow).
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
Raw content of the result file. |
It is a Base64 encoded content of the result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
DOCX Documents Content |
The array of raw content of DOCX documents. |
You may get the content of the source DOCX file by “Get file content” action from “SharePoint” connector or from some other connector. |
Example
Extract text from PDF document
Extracts text from PDF document to Raw or HTML format with the help of Power Automate (Microsoft Flow).
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
Text or raw HTML from the result file. |
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head><title></title>
<meta http-equiv="Content-Type" content="text/html; charset="UTF-8">
</head>
<body>
<div style="page-break-before:always; page-break-after:always">
<div>
<p>
<b>3</b>
</p>
</div>
</div>
<div style="page-break-before:always; page-break-after:always">
<div>
<p>
<b>4</b>
</p>
</div>
</div>
<div style="page-break-before:always; page-break-after:always">
<div>
<p>
<b>5</b>
</p>
</div>
</div>
<div style="page-break-before:always; page-break-after:always">
<div>
<p>
<b>6</b>
</p>
</div>
</div>
<div style="page-break-before:always; page-break-after:always">
<div>
<p>
<b>7</b>
</p>
</div>
</div>
</div></div>
</body>
</html>
|
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
PDF Document Content |
Raw content of PDF document. |
You may get the content of the source PDF file by “Get file content” action from “SharePoint” connector or from some other connector. |
Start Page |
Index of the first page to start extraction (indexes start from 1). |
3 |
End Page |
Index of the last page to extract (inclusive). By default we will use the last page of the source document. |
7 |
Result Type |
Raw or HTML. |
HTML |
Password |
The password to decrypt the source document. If it was encrypted earlier. |
PAs$word |
Example
Convert PDF to Image
Converts PDF document to image (jpeg, png, gif, bmp) with the help of Power Automate (Microsoft Flow).
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
Result Files Contents |
The array of raw content of result image files. |
It is an array of Base64 encoded contents of result image files. You can iterate through them and save somewhere. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
PDF Document Content |
Raw content of PDF document. |
You may get the content of the source PDF file by “Get file content” action from “SharePoint” connector or from some other connector. |
Start Page |
Index of the first page to start extraction (indexes start from 1). |
3 |
End Page |
Index of the last page to extract (inclusive). By default we will use the last page of the source document. |
7 |
Pages |
Page numbers for extraction separated by ‘;’ (only these pages will be extracted). |
4;6;7 |
Image Format |
The format of the result image. |
|
DPI |
The resolution of the result image (150 based). |
300 |
Password |
The password to decrypt the source document. If it was encrypted earlier. |
PAs$word |
Example
Fill in PDF Form
Fills in PDF form by provided data with the help of Power Automate (Microsoft Flow). Review How to automatically populate fillable PDF based on data from third party system article for more information.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
Raw content of result file. |
It is a Base64 encoded content of result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
PDF Document Content |
Raw content of PDF document. |
You may get the content of the source PDF file by “Get file content” action from “SharePoint” connector or from some other connector. |
JSON Data |
The data that will be used to fill in the form. |
{
"FirstName": "David",
"LastName": "Navarro",
"CompanyName": "Contoso LLC",
"Position": "Marketing manager"
}
|
Lock form fields |
Disable fields editing after filling them. |
If you want to lock the fields after filling the PDF form activate the option. |
Example
Get Form from PDF
Returns data from fillable PDF as JSON with the help of Power Automate (Microsoft Flow). Review these articles for more information:
How to collect data from fillable PDF and create item in SharePoint
How to extract data from PDF form and create leads in Dynamics CRM
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
Form Data |
Data from fillable PDF form as JSON. |
{
"FirstName": "David",
"LastName": "Navarro",
"CompanyName": "Contoso LLC",
"Position": "Marketing manager"
}
|
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
PDF Document Content |
Raw content of PDF document. |
You may get the content of the source PDF file by “Get file content” action from “SharePoint” connector or from some other connector. |
Password |
The password to decrypt the source document. If it was encrypted earlier. |
PAs$word |
Example
Protect PDF document
Protects PDF by adding passwords, copy-, printing-, and other protections to PDF file with the help of Power Automate (Microsoft Flow).
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
Raw content of result file. |
It is a Base64 encoded content of result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
PDF Document Content |
Raw content of PDF document. |
You may get the content of the source PDF file by “Get file content” action from “SharePoint” connector or from some other connector. |
Enable Printing |
Protect the PDF file from being printed out. |
Yes |
Enable Modification |
Protect the PDF file from being edited. |
Yes |
Enable Extract Data |
Allows extraction of text, images, and other media from the PDF file. |
Yes |
Enable Annotate |
Allows annotation (e.g. comments, form fill-in, signing) of the PDF file. |
Yes |
PDF Owner Password |
Enter an optional owner password here. This password can be used to disable document restrictions. |
OwNEr_PAs$word |
PDF User Password |
Enter an optional user password here. Each time an user opens the PDF he will be asked for this password. If you do not want a password prompt then leave this field blank. |
U$er_PAs$word |
Password |
The password to decrypt the source document. If it was encrypted earlier. |
PAs$word |
Example
Get PDF protection information
Returns True if the source PDF is protected and False otherwise.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
isPasswordProtected |
True or False. |
You can use If option in the flow to specify further steps depending on the output. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
PDF Document Content |
Raw content of PDF document. |
You may get the content of the source PDF file by “Get file content” action from “SharePoint” connector or from some other connector. |
Compress PDF document
Compresses a source PDF document. Please check out the article about using the action.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
Raw content of result file |
It is a Base64 encoded content of result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
PDF Document Content |
Raw content of PDF document. |
You may get the content of the source PDF file by “Get file content” action from “SharePoint” connector or from some other connector. |
Parse CSV
Parses a CSV file into an array of objects with properties in Power Automate (Microsoft Flow). Review How to read a CSV file in Power Automate (Microsoft Flow) and bulk generate documents article for more information.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
Items |
The collection of objects. Each object represents a CSV row and has properties corresponding to the CSV headers. |

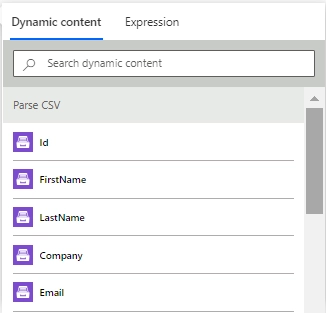

Each CSV header is represented by an output parameter. You can refer to a single item selecting it in MS Flow.
|
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Content of CSV document |
The raw content of the source CSV file. You can extract file content from other connectors like:
|
It is content of the source file. |
Headers |
Comma separated list of columns. |
You need to specify the headers in the same order as in the CSV file. Ex.: Id, FirstName, LastName, Company, Email |
Delimiter |
Delimiter of columns. By default it’s a comma. |
You can select from the following default values: Comma, Semicolon, Tab or specify a custom value. |
Locale |
The locale that will be applied to the source document. |
Specify the locale in order to correctly parse currencies, dates and other depending values. |
Limit |
Returns the first “n” rows |
You can limit the number of returned rows from the source document. |
Skip first Line |
Select ‘Yes’ if your CSV has headers as a first line |
If your CSV file has headers as a first line the select ‘Yes’. In that case the action will start collecting the values from the second line of the CSV file. If you select ‘No’, or the empty value then the action will start collecting values from the first line of the CSV file. |
Example
Convert Csv to Excel
Converts a CSV file to Excel in Power Automate (Microsoft Flow). Review How to convert CSV files to Excel in Power Automate Flow article for more information.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
File Content |
Raw content of result file |
It is a Base64 encoded content of result file. |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Content of CSV document |
The raw content of the source CSV file. You can extract file content from other connectors like:
|
It is content of the source file. |
Delimiter |
Delimiter of columns. By default it’s a comma. |
You can select from the following default values: Comma, Semicolon, Tab, Pipe or specify a custom value. |
Locale |
The locale that will be applied to the document. |
Specify the locale in order to correctly convert currencies, dates and other depending values. |
Limit |
Returns the first “n” rows |
You can limit the number of returned rows from the source document. |
Use first line as headers |
Select ‘Yes’ to read headers from the first line of the source CSV |
If your CSV file has headers as a first line then select ‘Yes’. |
Example
Regular Expression Match
Searches an input string for all occurrences of a regular expression and returns all the matches with the help of Power Automate (Microsoft Flow). We would recommend you to use Regex 101 tool to test your expressions. It supports the same syntax as actions.
Note
By default, Regex101 works with the PCRE2 syntax. You should change it to .NET (C#) in the “Flavor” section under “Save & Share”.
You can find more examples in this article.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
Is Success |
True if the input string has at least one occurrences of a regular expression, otherwise false. |
true |
Matches |
The dynamic response based on a pattern that is used in this action. Contains all matches groups that included in the pattern (named or unnamed). |
Match0, TaskId, status |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Pattern |
Regular expression pattern. This pattern can contain inline options to modify behavior of the regular expression. Such options have to be placed in the beginning of the expression inside brackets with question mark: |
|
Text |
String to search for matches. |
|
Example

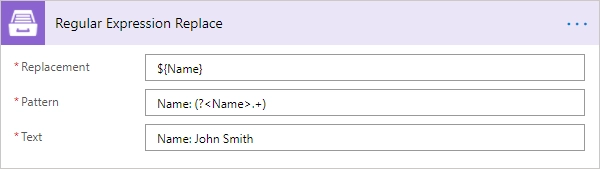

Regular Expression Replace
In a specified input string, replaces all strings that match a regular expression pattern with a specified replacement string. We would recommend you to use Regex 101 tool to test your expressions. It supports the same syntax as actions.
Note
By default, Regex101 works with the PCRE2 syntax. You should change it to .NET (C#) in the “Flavor” section under “Save & Share”.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
Result |
Result string with replaced substrings that match a regular expression pattern. |
|
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Pattern |
Regular expression pattern. This pattern can contain inline options to modify behavior of the regular expression. Such options have to be placed in the beginning of the expression inside brackets with question mark: |
|
Text |
String to search for matches. |
|
Replacement |
Replacement string or backreference. The name or number of a captured group should be put between braces in |
|
Example
Regular Expression Test
Indicates whether the regular expression specified in the Regex constructor finds a match in a specified input string. We would recommend you to use Regex 101 tool to test your expressions. It supports the same syntax as actions.
Note
By default, Regex101 works with the PCRE2 syntax. You should change it to .NET (C#) in the “Flavor” section under “Save & Share”.
Output Parameters
Parameter |
Description |
Example |
|---|---|---|
Is Success |
True if the input string has at least one occurrences of a regular expression, otherwise false. |
true |
Input Parameters
Parameter |
Description |
Example |
|---|---|---|
Pattern |
Regular expression pattern. This pattern can contain inline options to modify behavior of the regular expression. Such options have to be placed in the beginning of the expression inside brackets with question mark: |
|
Text |
String to search for matches. |
|
Example
