Documentation › Installation of Org Chart for SharePoint 2013/2016 as WSP package

Installation of Org Chart for SharePoint 2013/2016 as WSP package

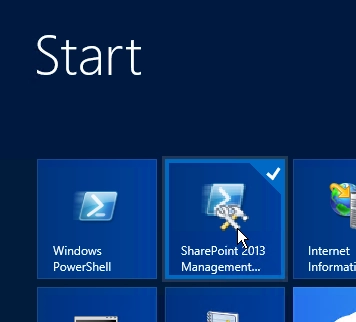

Download wsp-package and place it to one of the servers in your Sharepoint 2013 farm. Run Sharepoint 2013 Management Shell as administrator:

Run as administrator Run as administrator

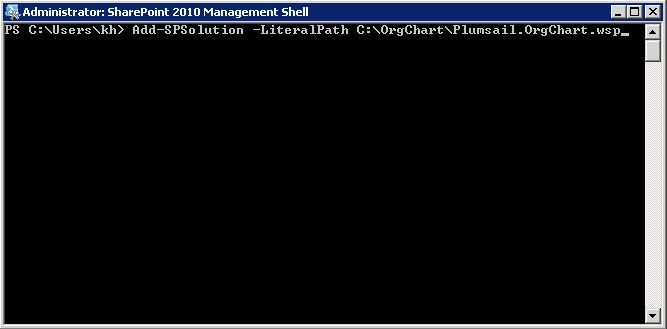

Print Add-SPSolution:

Power Shell add solution

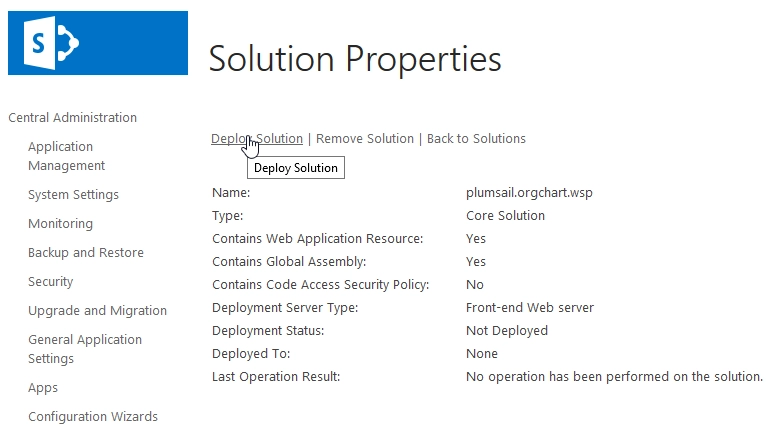

Open Central Administration as administrator > System Settings > Manage farm solutions. Select plumsail.orgchart.wsp and press Deploy Solution link:

Deploy solution

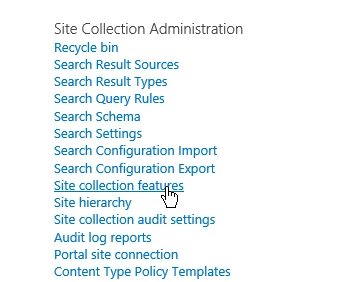

Go to your application. Select Site Settings item in the root of the site collection. Choose Site collection features in Site Collection Administration section:

Site collection features

Activate Plumsail Org Chart feature.

Org Chart feature

Next step is to add web part to a page.
