Drill down to manager of user from URL by default in Org Chart

Note

For the versions earlier than 4.x.x (including on-premises ones), please follow this instruction.

In this quick tip, I will describe how to drill down to a manager of a user based on a URL parameter on Org Chart load. It may be useful if you want Org Chart to behave as standard SharePoint Org Chart. You can place Org Chart on a user profile page. It will take accountname URL parameter and drill down to a manager of this user on Org Chart load. If there no URL parameter it will drill down to a manager of a current user. If there is no manager, it will drill down to this user.

In my case, Org Chart web part is located here:

htts://plumsail.sharepoint.com/orgchart.aspx

I want to be able to drill down to a manager of a user using URL like this:

htts://plumsail.sharepoint.com/orgchart.aspx?accountname=account@plumsail.com

Depending on your configuration Org Chart uses some property as ID of the box. In my case it is an email (account name of a user in Microsoft 365). If you use SharePoint list as a data source it can be other field value. For example, list item ID. Thus, accountname is just identificator of employee.

Open the configuration wizard of Org Chart, navigate to Custom JavaScript step and paste this code into code editor:

const accountNameFromUrl = GetUrlKeyValue("accountname");

const drillDownToManagerOfUser = (accountName) => {
  api.dataProvider.getBoxGroupItemDataById(accountName,
    (itemData) => {
      if (itemData.parentId) {
        console.log("Drilling down to manager: " + itemData.parentId);
        api.drillDown(itemData.parentId);
      } else {
        console.log("Drilling down to user: " + accountName);
        api.drillDown(accountName);
      }

    });
}

//Don't wait for loading of initial root employee
api.config.renderInitialNode = false;

//Wait for web part loading
api.onInitialLoadingFinished(() => {
  //If there is accountNameFromUrl in URL
  if (!accountNameFromUrl) {
    //Drill down to current user's manager if exists
    api.dataProvider.getCurrentUserAccountName((accountName) => {
      drillDownToManagerOfUser(accountName)
    })
  } else {
    //Drill down to a manager of a user from URL if exists
    drillDownToManagerOfUser(accountNameFromUrl)
  }
});
Drill down to manager

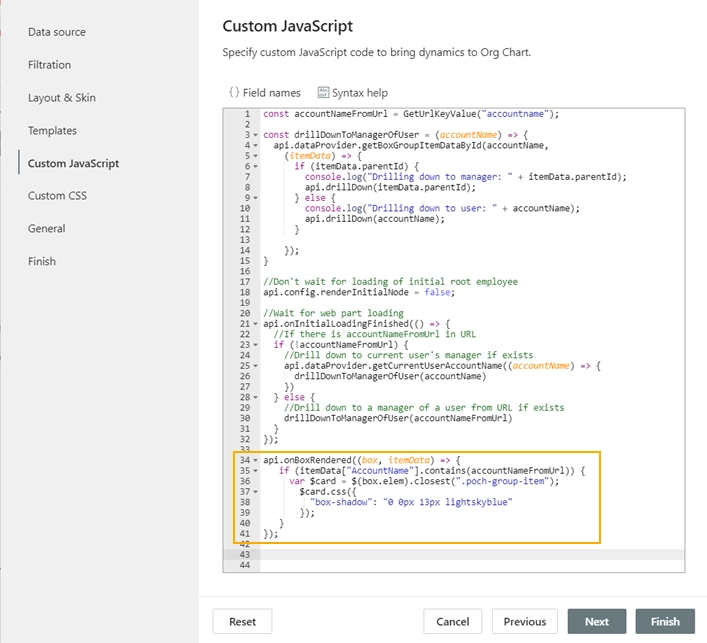

Additionally, you can highlight the user from the URL. Add this code to the onBoxRendered event:

api.onBoxRendered((box, itemData) => {
 if (itemData["AccountName"].contains(accountNameFromUrl)) {
    var $card = $(box.elem).closest(".poch-group-item");
      $card.css({
        "box-shadow": "0 0px 13px lightskyblue"
      });
 }
});
Drill down to manager

The code checks each user ID and if a user ID contains the same account name as in the URL it adds a glow to the user’s box.

Highlight the user

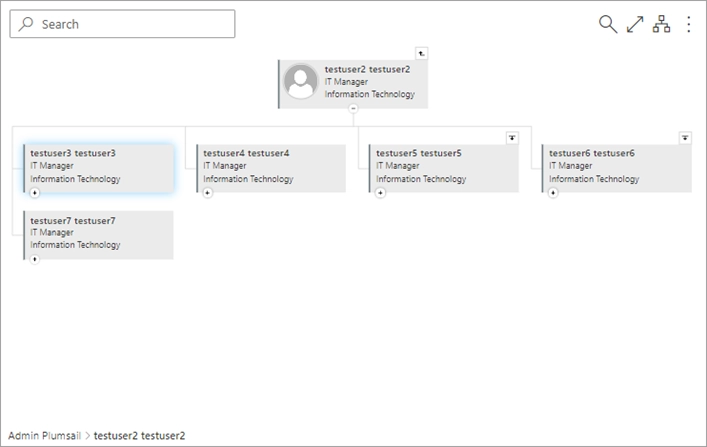

Finish the wizard. That is it! Now you can navigate to manager of a user according to a URL parameter.

How it works

When your web part is loaded, custom JavaScript code is executed. This code disables initial rendering of web part to make drill down instead of waiting for web part loading:

api.config.renderInitialNode = false;

Then it checks if there is URL parameter accountname. If the URL parameter is not specified, it gets current user account name and tries to drill down to a manager of a current user. If there is no manager, it drills down to a current user:

//Drill down to current user's manager if exists
api.dataProvider.getCurrentUserAccountName((accountName) => {
  drillDownToManagerOfUser(accountName)
})

If the URL parameter is specified it tries to drill down to a manager of account name from the URL parameter:

//Drill down to a manager of a user from URL if exists
drillDownToManagerOfUser(accountNameFromUrl)

Drill down logic is implemented in drillDownToManagerOfUser JavaScript function:

const drillDownToManagerOfUser = (accountName) => {
  api.dataProvider.getBoxGroupItemDataById(accountName,
    (itemData) => {
      if (itemData.parentId) {
        console.log("Drilling down to manager: " + itemData.parentId);
        api.drillDown(itemData.parentId);
      } else {
        console.log("Drilling down to user: " + accountName);
        api.drillDown(accountName);
      }
    });
}
