Order employees boxes using custom field for Org Chart


For the versions earlier than 4.x.x (including on-premises ones), please follow this instruction.

You can choose a custom field for ordering the employees boxes in your chart. It can be an existing field or a new one. If you set users profiles as a data source you can create a new user property. In case you use a list, you can create a new list column.

To define the sorting rules use this javascript method. You can find a full description of the method here.

api.setSorting("sortingFieldName", "sortOrder", "sortValueType");
  • sortingFieldName – the internal name of a list field or a user profile property.

  • sortOrder – a sorting order, for example, ASC or DESC.

  • sortValueType – defines ths sorting method: by string or by number. It is String by default, but you can specify Number. If a field contains a non-number value it fallback to zero value and writes a message to the browser console.

Sorting by string

You can either specify the sortValueType parameter as String or leave the option empty.

api.setSorting("PreferredName", "DESC");


api.setSorting("PreferredName", "DESC", "String");

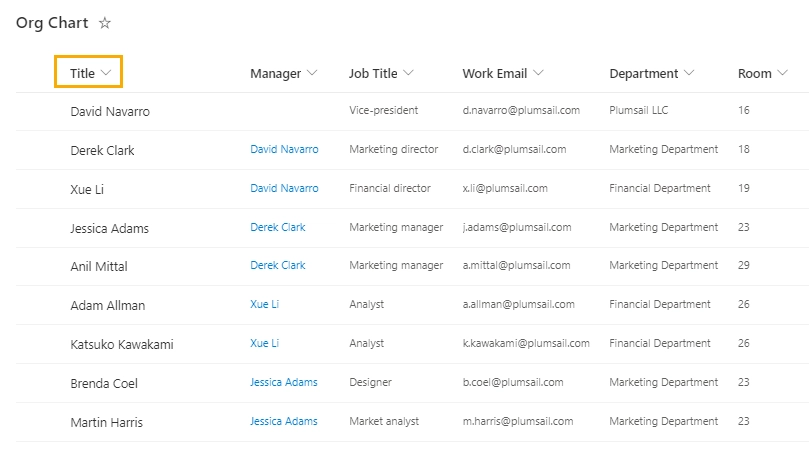

For example, I want to sort the list of employees by their names.


I add the code to the Custom JavaScript section of the Org Chart settings.

api.setSorting("Title", "ASC", "String");

The result looks like this.

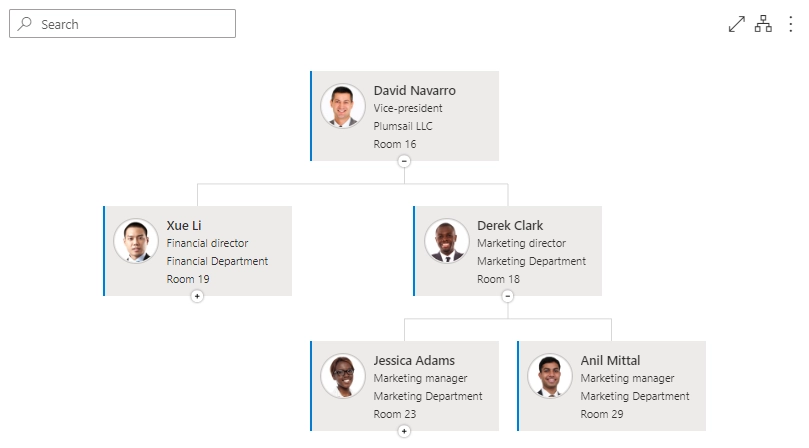

If I use a DESC sorting it looks like this.

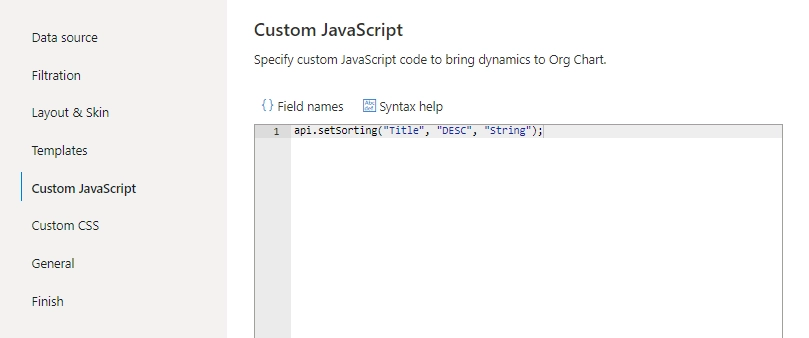

api.setSorting("Title", "DESC", "String");
Sorting Sorting

Sorting by number

If you want to sort the fileds by number you need to specify the parameter.

api.setSorting("NumberFieldName", "DESC", "Number");

For example, I have a list of employees with room numbers for each one.

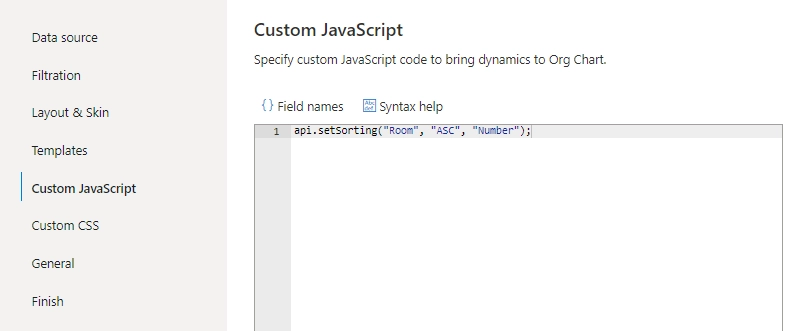

If you want to sort the boxes by number of the rooms, add the following code to the Custom JavaScript section of the Org Chart settings.

api.setSorting("Room", "ASC", "Number");
Number sorting

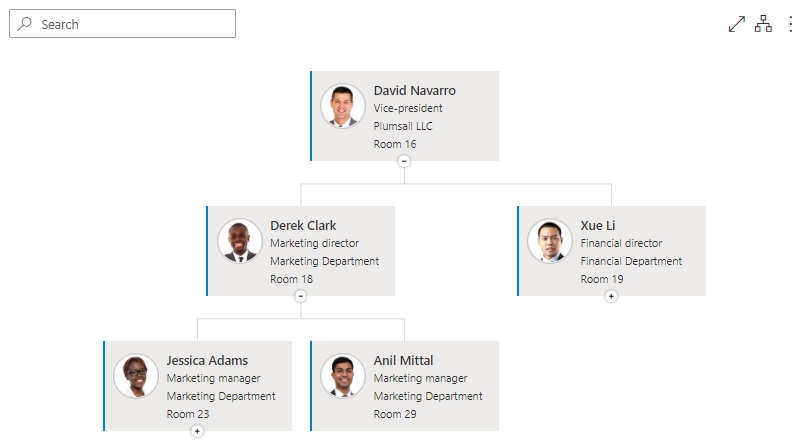

The result looks like this.

Number sorting

You can also use DESC sorting.

api.setSorting("Room", "DESC", "Number");
Number sorting

This is the result.

Number sorting
