Use custom styles for printed Org Chart in SharePoint and Microsoft Teams

Note

For the versions earlier than 4.x.x (including on-premises ones), please follow this instruction.

With Plumsail Org Chart you can also create custom CSS styles that will be applied to the chart only when you print it or generate a multi-page report. That way, you can apply custom styles that will help reading the chart after printing it, but without affecting the chart on your SharePoint site.

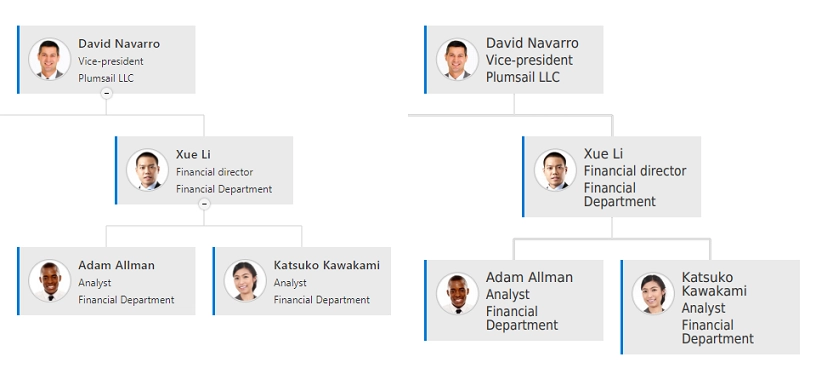

You can change a font size for the generated files only:

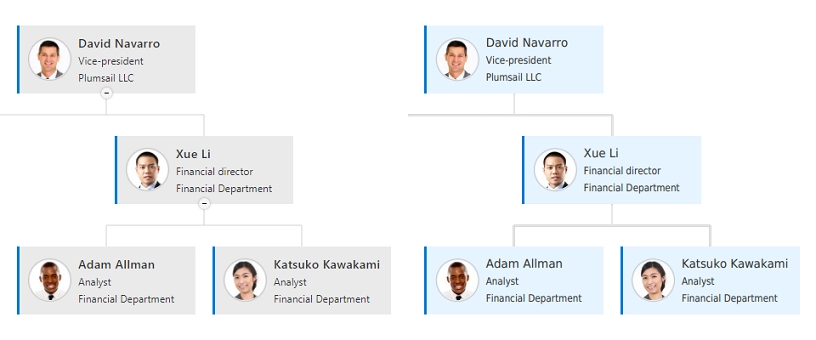

Similarly, you can also change a background color of boxes:

Change the background color when printing

You need to open the configuration wizard and switch to the Custom code step. Then paste the CSS styles described below into the editor.

Org Chart adds the following classes to elements when generating the files:

poch-print-mode for printing and
poch-report-mode for the multi-page reports.

Adding them to the CSS selectors, you can handle styles in the Custom CSS tab that will be applied only for the generated files.

To enlarge the font size for printing, the style used was:

.poch-print-mode .poch-box__field {
  font-size: 16px !important;
}

And to modify the background color of boxes, the following style was added:

.poch-print-mode .poch-group-item__card {
  background-color: #e6f4ff !important;
}

You can also customize the styles of connection lines in your final document.

Use the following CSS specifically for printing:

.poch-print-mode .poch-node-line {
  stroke: chocolate;
  stroke-width: 2px;
}

To customize line appearance in reports, use this CSS:

.poch-report-mode .poch-node-line {
  stroke: #000000;
  stroke-width: 2px;
}

If you want to apply the same styles to lines in both print and report modes, you can combine the selectors:

.poch-print-mode .poch-node-line,
.poch-report-mode .poch-node-line {
  stroke: #000000;
  stroke-width: 2px;
}

Learn more in our detailed guide on how to customize lines.

Note

For a complete overview of exporting Org Chart in different formats and platforms, see this blog post. It applies to both SharePoint and Microsoft Teams.
