Display awards and conditionally format Org Chart

Highlight boxes according to field values

I assume that you’ve already added the web part to your page and configured it with default settings.

I want to change background of boxes according to custom field from the data source. In my case it is Awards field, which has following possible values:

• Gold medal

• Silver medal

• Bronze medal

I want to set light goldenrod background for boxes, where Awards field has value Gold medal, to set lavender background for boxes with Silver medal field value and to set maize background for boxes with Bronze medal field value.

First of all I added Awards field to my data source. I used SharePoint list as a data source, but you can use User Profile Service as well. If you don’t know how to add new field to your data source, read official Microsoft documentation:

• Create a column in a list

• Add a property for a user profile (SharePoint Online)

• Add a property for a user profile (SharePoint On-Premises)

Then I configured the web part using the configuration wizard. Let me show how.

I opened page with Org Chart web part for edit:

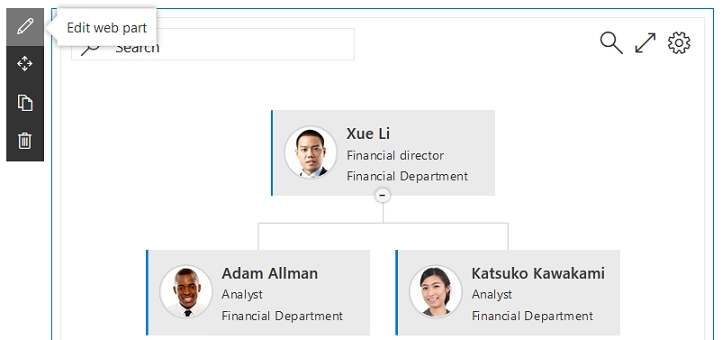

Then I opened Org Chart web part properties, by clicking in right top corner of web part and selecting Edit Web Part:

Then I switched to the General settings wizard step and changed org chart skin to “Modern”. I would prefer to use this skin because it fits modern UI of SharePoint Online more than other skins.

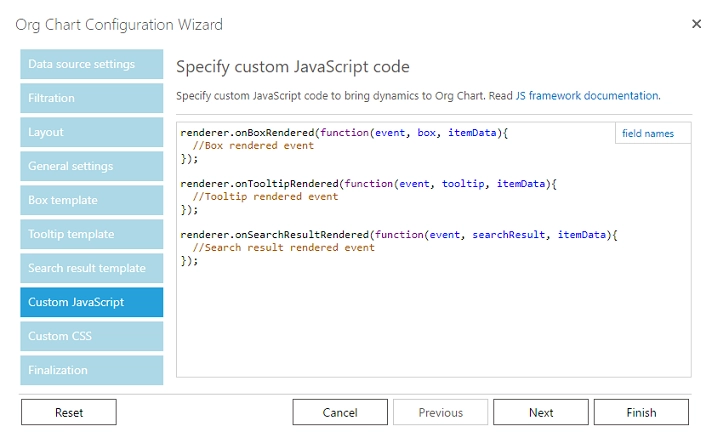

Then I switched to the Custom JavaScript wizard step:

As you can see on the picture above, there is ready to use JavaScript handler with three functions, which allow to subscribe for box, tooltip or search result rendering event. In this article I used only box and search result rendering events to highlight boxes and search results with color. You can find description of JavaScript framework in the documentation.

It is possible to use such code to highlight boxes with Gold medal field values:

//subscribe for box rendering event
renderer.onBoxRendered(function(event, box, itemData){
  //If employee has gold award show medal and add CSS classes
  if(itemData.Awards == 'Gold medal'){
    box.$elem.css({
      'background-color': '#ffec8b' /*light goldenrod*/
    });
  }
});

As you can see from the script above I used onBoxRendered method to subscribe for event. The method receives box and itemData parameters. I used Awards property of the itemData parameter to check if current employee has award. The itemData parameter contains all field values from the data source mentioned in the configuration wizard. Then I applied CSS style using jQuery css function to $elem property of the box. The box parameter represents object of current box and $elem property stores jQuery object for the box element. That is all required to modify color of the box according to the property of employee:

To highlight boxes with other field values you can use the same logic and add if condition for each of them. Such approach also works for search results and tooltips. So, if you need to add simple CSS styles you can do it right in the JavaScript, but to keep code readable I would recommend to move CSS outside from JavaScript code.

That is why I created CSS class for box. You can see the CSS style for gold medal box below:

/*set background color for box with gold medal*/
.pl-item-template.gold-box {
  background-color: #ffec8b !important;
}

To apply CSS style I switched to General settings and copied style to Custom CSS property. Then switched back to JavaScript and changed it to following:

renderer.onBoxRendered(function(event, box, itemData){
  //If employee has gold award show medal and add CSS classes
  if(itemData.Awards == 'Gold medal'){
    box.$elem.addClass('gold-box');
  }
});

As you see, I just added CSS class to $elem instead of adding CSS styles manually.

In this step I showed part of script for my case only. I don’t want to overload this step by code, you can find complete script and CSS styles in the last step of the article.

Add images (awards) or any other HTML into boxes dynamically

In this step I will show how to use JavaScript to modify org chart boxes dynamically. I will add image of award into the box. To keep explanation clear I will not use script from the previous step here, but you can find combined script in the next step.

You can see the JavaScript code I used below:

renderer.onBoxRendered(function(event, box, itemData){
  //If employee has gold award show medal and add CSS classes
  if(itemData.Awards == 'Gold medal'){
    var medalSpan = $('<span class="medal gold-medal"></span>');
    box.getInnerContent().append(medalSpan);
  }
});

The code above checks if current item has Gold medal and adds a span element into box. I used getInnerContent function of the box parameter to get jQuery object for the inner content of current box. I added medal and gold-medal CSS classes to the span. I used medal class to configure position and size for all medals and gold-medal class to set background image for gold medal. You can see CSS style below:

/*set position for all medals*/
.medal {
  display: block;
  position: absolute;
  width: 32px;
  height: 32px;
  top: 60px;
  left: 0px;
}

/*set image URL for gold medal*/
.gold-medal {
  background-image: url(../SiteAssets/OrgChart/gold-medal32x32.png);
}

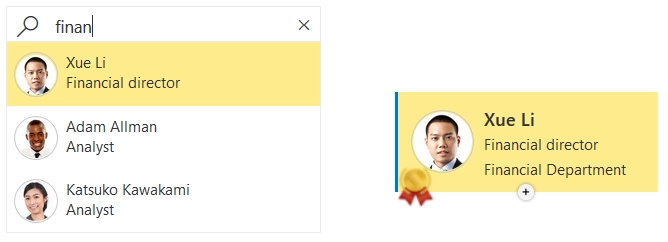

It is enough to add medal to Org Chart box:

In this step I showed how to add HTML elements to boxes dynamically. In my case it was image of the gold medal. I showed part of script and CSS styles for gold medal only, but you can find complete script in the next step.

Step by step guide with ready to copy paste code

Add new Awards field to your data source, SharePoint list or User Profile Service. If you don’t know how to do it, read official documentation from Microsoft:

• Add new field to SharePoint list

• Add new property to User Profile Service

Open the configuration wizard using the context menu in the top right corner of the web part.

Switch to General settings wizard step and choose Light gray skin.

Copy CSS style and paste it to Custom CSS property:

/*set position for all medals*/
.medal {
  display: block;
  width: 32px;
  height: 32px;
  position: absolute;
  top: 60px;
  left: 0px;
}

/*set image URL for gold medal*/
.gold-medal {
  background-image: url(../SiteAssets/OrgChart/gold-medal32x32.png);
}

/*set image URL for silver medal*/
.silver-medal {
  background-image: url(../SiteAssets/OrgChart/silver-medal32x32.png);
}

/*set image URL for bronze medal*/
.bronze-medal {
  background-image: url(../SiteAssets/OrgChart/bronze-medal32x32.png);
}

/*set background color for box with gold medal*/
.pl-item-template.gold-box, .gold-search-result{
  background-color: #ffec8b !important;
}

/*set background color for box with silver medal*/
.pl-item-template.silver-box, .silver-search-result{
  background-color: #e6e6fa !important;
}

/*set background color for box with bronze medal*/
.pl-item-template.bronze-box, .bronze-search-result{
  background-color: #edd19c !important;
}

Switch to Custom JavaScript wizard step and add Awards field to fields included to org chart data object.

Then copy JavaScript code and paste it to the code editor:

//subscribe for box rendering event
renderer.onBoxRendered(function(event, box, itemData){

  //If employee has gold award show medal and add CSS classes
  if(itemData.Awards == 'Gold medal'){
    var medalSpan = $('<span class="medal gold-medal"></span>');
    box.getInnerContent().append(medalSpan);
    box.$elem.addClass('gold-box');
  }

  //If employee has silver award show medal and add CSS classes
  if(itemData.Awards == 'Silver medal'){
    var medalSpan = $('<span class="medal silver-medal"></span>');
    box.getInnerContent().append(medalSpan);
    box.$elem.addClass('silver-box');
  }

  //If employee has bronze award show medal and add CSS classes
  if(itemData.Awards == 'Bronze medal'){
    var medalSpan = $('<span class="medal bronze-medal"></span>');
    box.getInnerContent().append(medalSpan);
    box.$elem.addClass('bronze-box');
  }
});

//subscribe for search result rendering event
renderer.onSearchResultRendered(function(event, searchResult, itemData){

  //add class to search result of employee with gold medal
  if(itemData.Awards == 'Gold medal'){
    searchResult.$elem.addClass('gold-search-result');
  }

  //add class to search result of employee with silver medal
  if(itemData.Awards == 'Silver medal'){
    searchResult.$elem.addClass('silver-search-result');
  }

  //add class to search result of employee with bronze medal
  if(itemData.Awards == 'Bronze medal'){
    searchResult.$elem.addClass('bronze-search-result');
  }
});

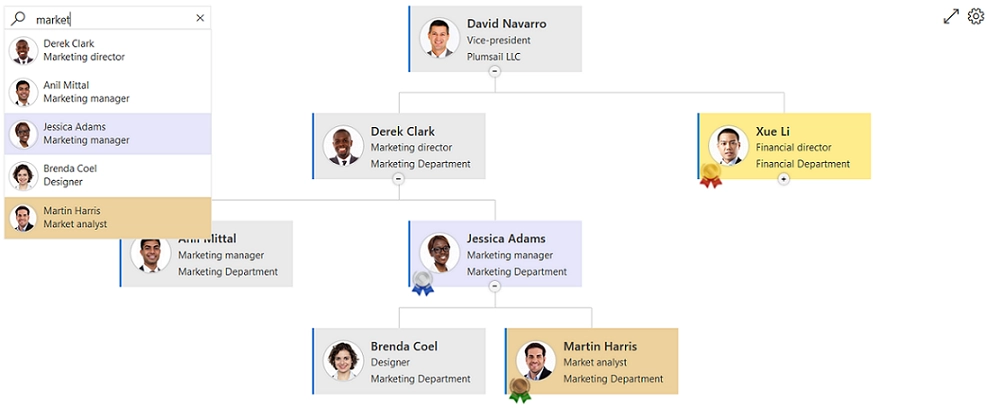

Finish the configuration wizard and you will see the org chart with conditional formatting and awards like on the picture in the beginning of this article.

In this article I showed how to add conditional formatting to SharePoint org chart. Now you know how to change background of boxes according to field values from data source in six lines of code. The same logic is applicable to tooltips and search results of org chart. If you need to implement more complex scenario, you can add HTML elements to boxes dynamically using jQuery framework.

I hope this will help you to build clear and useful organization structure.
