icon Task Outcome

The Task Outcome field allows a user to select a task outcome from a predefined list of options.

This page contains a detailed description of the field properties and JavaScript samples which you can use with this field.

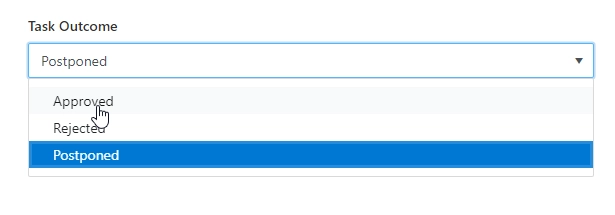

Task Outcome preview

Common Properties

SharePoint Field

General

Title

Control

SharePoint Field

General

Title

Control

JavaScript framework

In this section, you can find basic examples of how to work with the SharePoint fields using JavaScript.

For more examples, check out Working with form fields in JavaScript article. If you are not familiar with the JavaScript framework, get started with the JavaScript basics.

Note

The field is only accessible once the form is rendered, so all calls to the field must be inside fd.spRendered event:

fd.spRendered(function(){
    //make field required
    fd.field('Field1').required = true;
});

Get or set field value

Get or set the field’s value that allows selection of only one option:

//return field value as a string
fd.field('Field1').value;

//set field value
fd.field('Field1').value = 'Approved';

Handle change event

Execute a function when a field value has been changed:

fd.field('Field1').$on('change', function(value) {
    //log new value to browser's console
    console.log(value);
});

Make field required

Make a field required or optional:

//make field required
fd.field('Field1').required = true;

//make field not required
fd.field('Field1').required = false;

Disable field

Make a field non-editable. The field value can still be changed with JavaScript and saved:

//disabled field
fd.field('Field1').disabled = true;

//enable field
fd.field('Field1').disabled = false;

Get HTML element

Access HTML element inside the field in order to modify it, hide it, or do something else.

//access field's control
var htmlField = fd.field('Field1').$el;

//access field's block, which includes title and control
var htmlFullField = fd.field('Field1').$parent.$el;

Hide field

Hide a field from a user. The field value can still be accessed and changed with JavaScript.

//hide field
fd.field('Field1').hidden = true;

//show field
fd.field('Field1').hidden = false;

Clear field

Clear field value.

fd.field('Field1').clear();

Configure widget

You can access the widget used by the field. The widget is based on Kendo UI DropDownList.

// get the widget
fd.field('Field1').widget;

// change the widget's configuration
fd.field('Field1').widgetOptions = { template: '<span style="font-weight: bold">#: data #</span>' }

widgetOptions is the same as widget.setOptions({}) but can be defined before widget initialization.
