icon Image

The Image field allows a user to add a single image file from the device.

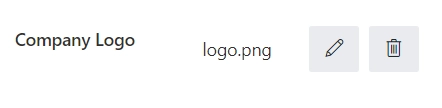

Image field preview

This page contains a detailed description of the field properties and JavaScript samples which you can use with this field.

Common Properties

JavaScript framework

In this section, you can find basic examples of how to work with the SharePoint fields using JavaScript.

For more examples, check out Working with form fields in JavaScript article. If you are not familiar with the JavaScript framework, get started with the JavaScript basics.


The field is only accessible once the form is rendered, so all calls to the field must be inside fd.spRendered event:

    //make field required
    fd.field('Field1').required = true;

Get or set field value

Get or set the field’s value. The Image field value is stored as an object:

// returns the value as an object

//get the file name

Handle change event

Execute a function when a field value has been changed:

fd.field('Field1').$on('change', function(value) {
    //log new value to browser's console

Make field required

Make a field required or optional:

//make field required
fd.field('Field1').required = true;

//make field not required
fd.field('Field1').required = false;

Disable field

Make a field non-editable. The field value can still be changed with JavaScript and saved:

//disabled field
fd.field('Field1').disabled = true;

//enable field
fd.field('Field1').disabled = false;

Get HTML element

Access HTML element inside the field in order to modify it, hide it, or do something else.

//access field's control
var htmlField = fd.field('Field1').$el;

//access field's block, which includes title and control
var htmlFullField = fd.field('Field1').$parent.$el;

Hide field

Hide a field from a user. The field value can still be accessed and changed with JavaScript.

//hide field
fd.field('Field1').hidden = true;

//show field
fd.field('Field1').hidden = false;

Clear field

Clear field value.
