Create Word and PDF documents from Cognito Forms in Zapier
In this article, you will learn how to automate the generation of documents in your company. For example, applications, orders, invoices, cards and others. We’ll show you how to create a PDF document from a DOCX template on a Cognito Form entry with the help of Processes in Zapier.
Processes are a Plumsail Documents feature with an intuitive interface for creating documents from templates.
Cognito Forms are an online form builder that allows you to create powerful forms for your website.
We’ll connect them in Zapier to automatically collect data from a Cognito Form, apply it to our template, and generate a new PDF document.
Create a Form
We have already created a Cognito Form. We will use data from its submission. If you haven’t created Cognito Forms before, follow this link to learn how to do it.

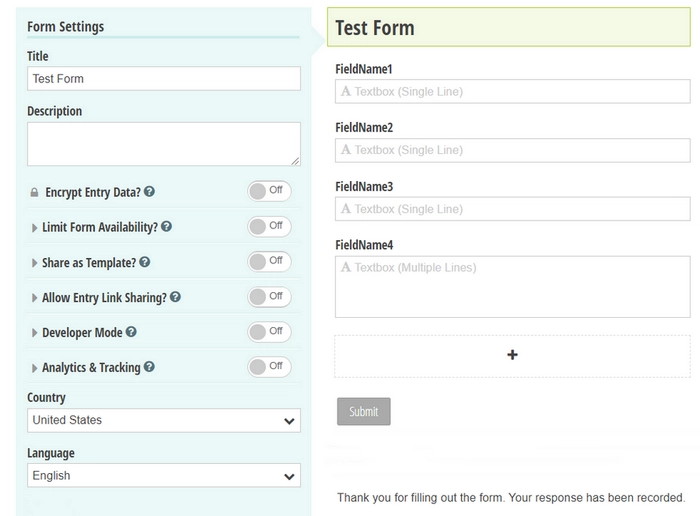

Below is a screenshot of our form:
Configure the Process
Before creating the Flow, we need to set a Process, which will generate PDF documents from a DOCX template.
Create a new process

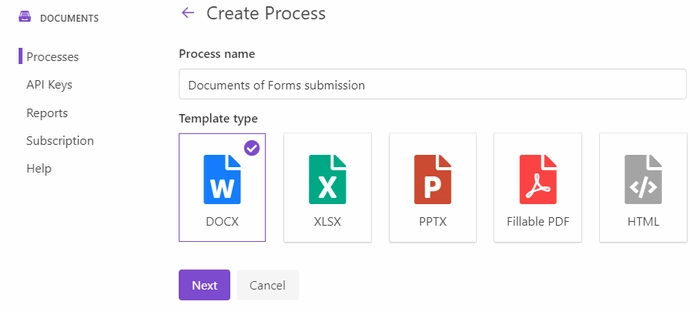

Go to the Processes section in your Plumsail account.
Click on the Add process button.
Set the Process name. Select DOCX for a template type.
Configure a template
Once you’re done with the first step Create Process, press the Next button, and you’ll proceed to the next step – Configure Template.
It includes two substeps:
Editor;
Settings.
In Editor, you can compose the template from scratch or upload a pre-made one. It’s also possible to modify the uploaded template online.

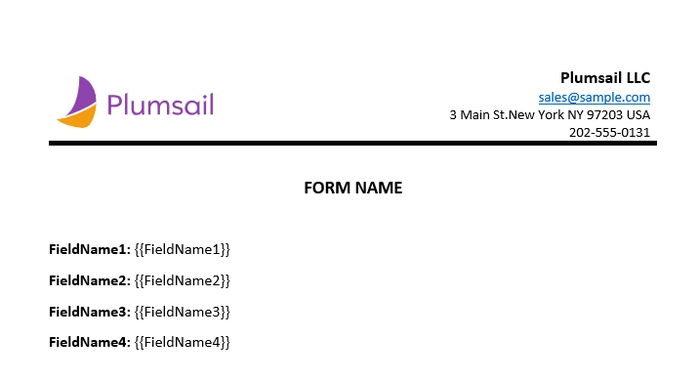

Feel free to download a DOCX template that we’re using in this example for demonstration purposes:
Then upload it to the process.
Tempating syntax
When creating your own templates, mind the templating language. Plumsail Word DOCX templates use a different approach than most other templating solutions. It uses a minimal amount of syntax to make your work done.
In short, the templating engine thinks that everything between curly {{ }} brackets is variables where it will apply your specified data.
Read this article to get familiar with the templating engine.
Test template

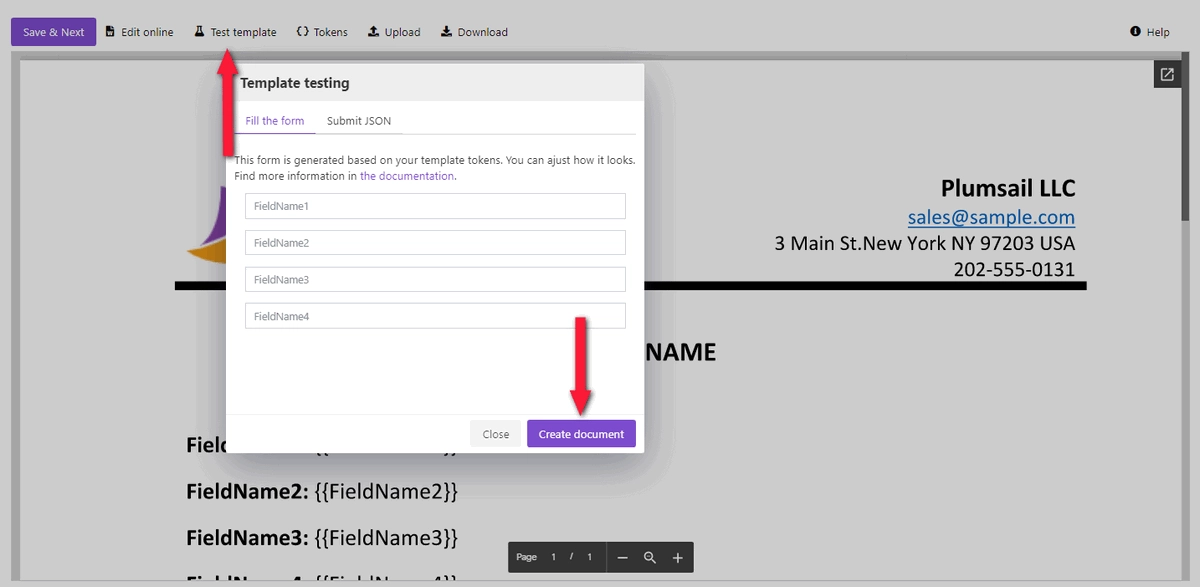

You can test a template as well, to see how it will look at the end. After clicking on the Test template button, you’ll need to fill in the auto-generated testing form. Fields of this form are created based on tokens from your document template. You can adjust the look of the testing form by changing token types.
It’s testing. We’re going to apply the data from the Cognito form to our template.

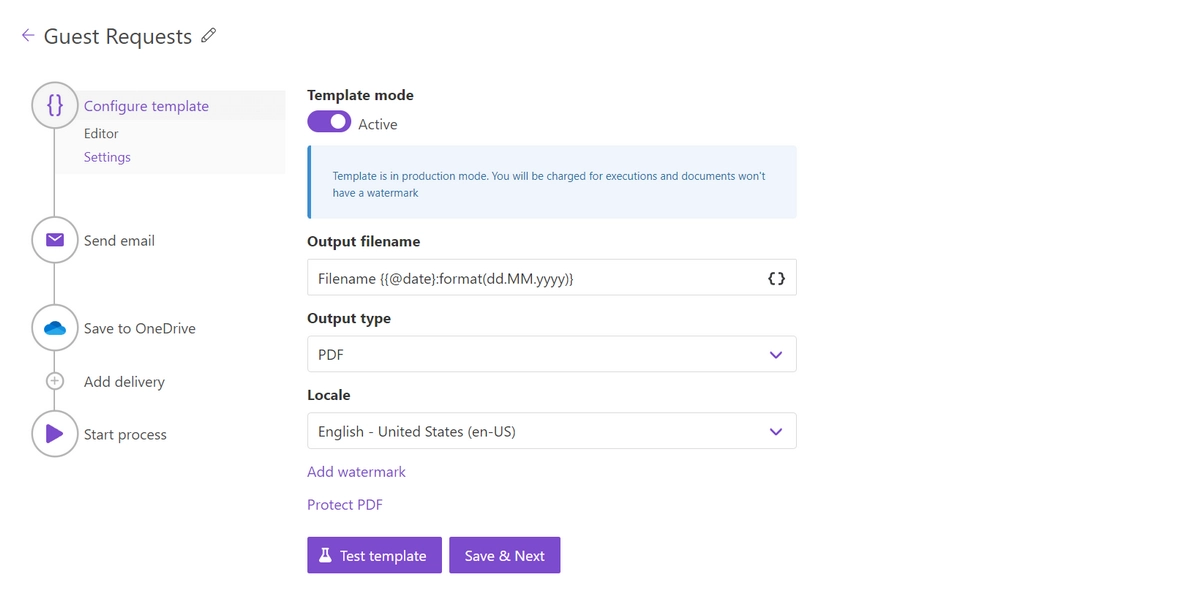

Once you’ve tested the template, press Save&Next to proceed further - to the Settings substep.
Switch to an active mode to remove Plumsail watermarks from resulting documents
Fill in the name of the result file
Select PDF format for the output file
Protect the result PDF if you wish
Delivery
The next step is delivery. For demonstrating purpose, we’ll store the result file in OneDrive. But there are other options.
Select the folder where the ready document will be saved. Fill in the file’s name.
You can configure as many deliveries as you need.
Start the Process
We will start our Process from Zapier.
Create a Zap
Zap is an automated connection between web services in Zapier. You can create it from scratch following the steps explained below.
Or you can utilize the zap template. Click Use this zap, and then just customize the steps as it’s described further in this article.

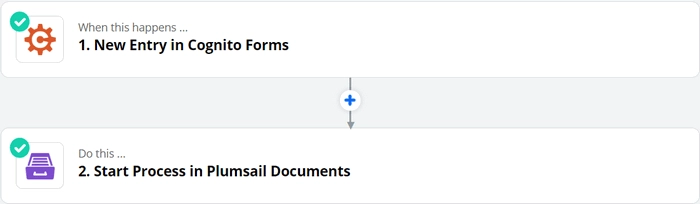

This is how our Zap looks:
Below is a step-by-step description.
New entry in Cognito Forms
We need to start the Zap every time somebody submits our stationery request form. For that, search for Cognito Forms in Zapier and add New entry as a trigger.
If this is your first Zap with Cognito Forms, on this step, sign in to your Cognito Account from Zapier to use your forms inside Zaps.

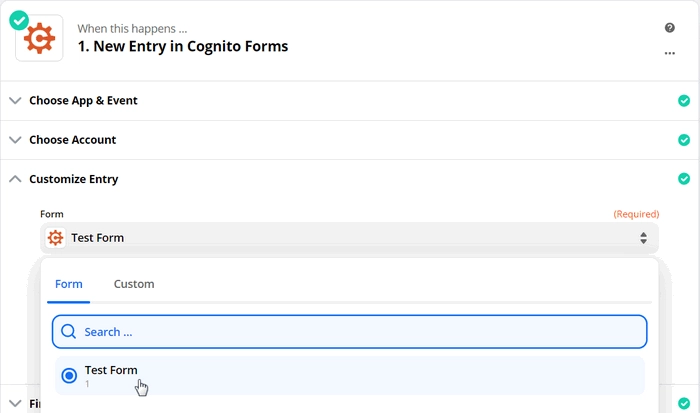

Then, you’ll need to pick the form you want to track in the dropdown.

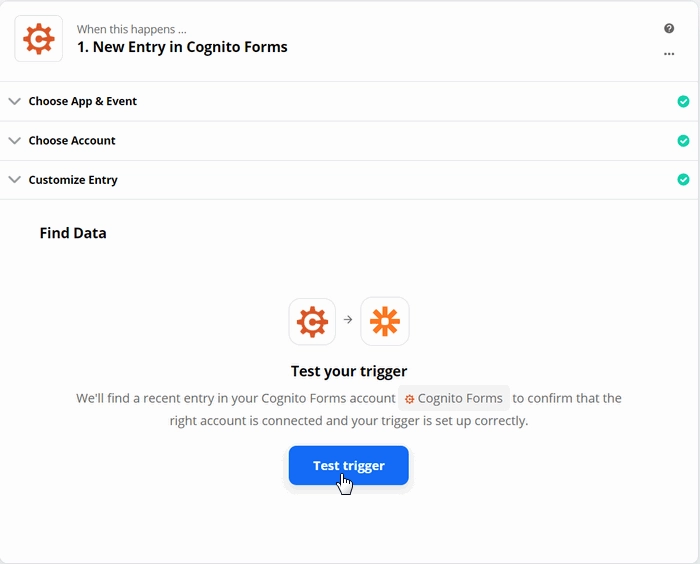

The last thing to do with the trigger - Find data. Press “Test trigger” to find data. It will allow you to use the trigger output on the next step.
Start process in Plumsail Documents
Once the trigger is set, search for Plumsail Documents and add an action Start process.
Click Continue. If this is your first Zap, at this point, you’ll need to Sign in to your Plumsail Account from Zapier to establish a connection between the app and your account. If you already have a Plumsail account tied to the app, you can add another one at this step, and use it instead.

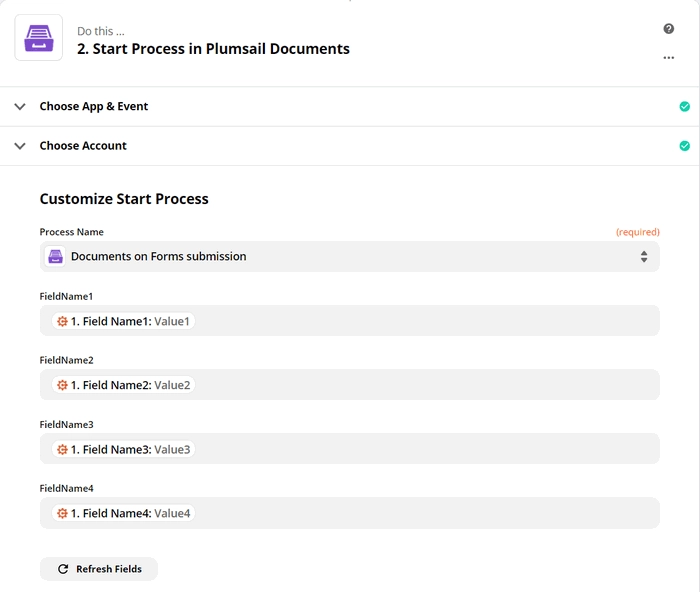

Customize Start Process
Choose the process you want to start by this Zap from the dropdown.
Then, you need to specify data by completing the fields. They have the same names as tokens in the template. This data will be applied to the template to personalize documents every time a Cognito form is entered.
Use the output from the trigger to specify values:

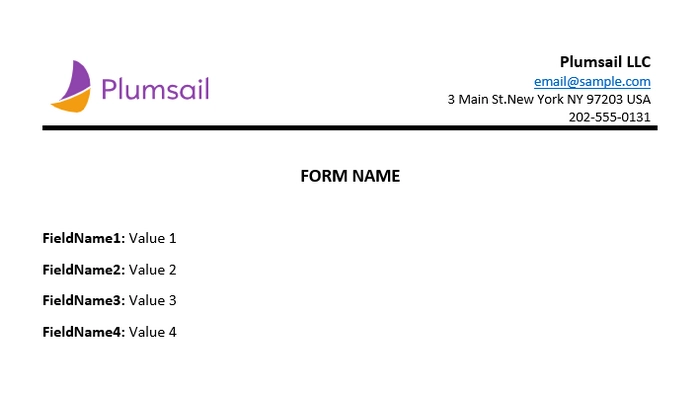

Our Zap is ready. See how the resulting file looks:
Sign up for Plumsail Documents
As you can see, it’s simple to automize the generation of documents on Cognito Forms submission. If you’re new to Plumsail Documents, register an account to get a free 30-day trial.
