Documentation › Control types in SharePoint Forms › Lookup control › Cross-site Lookup for SharePoint forms

How to link lists across different sites using Lookup control¶


Lookup control allows you to link lists across different sites and even site collections. The control has the same functionality as SharePoint lookup field. You can:

  • search through available values;

  • allow adding new items to the source list;

  • filter and create cascading dropdowns;

  • display related items from another site linked via Lookup control with List or Library control.

Selected data for this control is stored in a regular text field and rendered as a lookup field in a list view.

  • Configuration

    • Data Source

    • Save to

    • Other properties

  • List or Library control

    • Bind two lists on different sites

    • Display related items on a form

  • Filtration

    • Depends on/Match to

    • Programmatic filtration

Configuration¶

Data Source¶

In order to select a data source for the Lookup control, go to control’s properties: General → Data Source.

Data Source

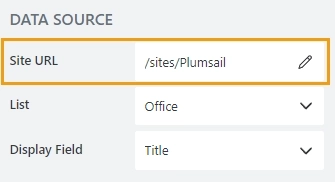

First, you need to specify the site URL where the source list is located. You can select any site or site collection within your tenant.

Site URL

After clicking the checkmark button, all lists and libraries from the selected site will be loaded.

Then, select the source list and the field that will be shown in the control.

Data Source

Save to¶

Since it’s a control and not a SharePoint column, its value should be saved to a SharePoint single-line text field.

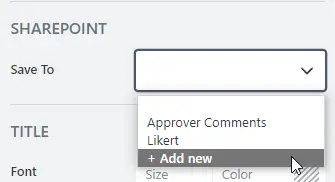

In the control’s properties: General → Save to, click + Add New to create a SharePoint column to store the value of the control.

Save to

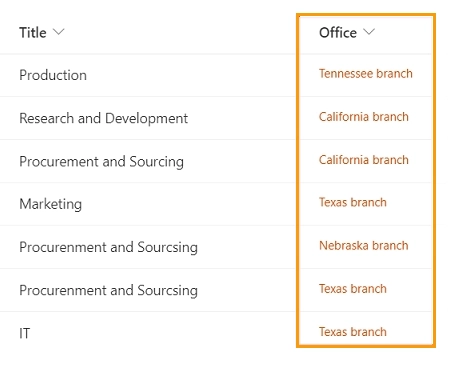

In a list view, the column is rendered as a regular lookup field with the help of a field customizer.

By clicking on the value, you can open a display form of the selected item in a separate tab.

List view

Other properties¶

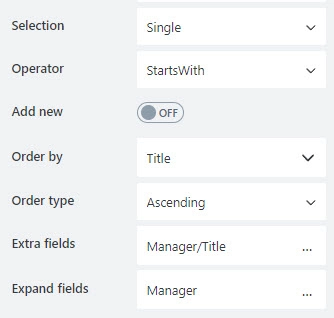

Using other control properties, you can:

  • Сonfigure how the search within the control is handled - Operator property

  • Allow users to add new values to the source list - Add New property

  • Select fields from the source list that also need to be loaded - Extra Fields/Expand properties.

properties

You can learn more about all available properties on the Lookup control page.

List or Library control¶

Lookup control is also supported by List or Library control. Thus, you can design a form with a list of related items from another site.

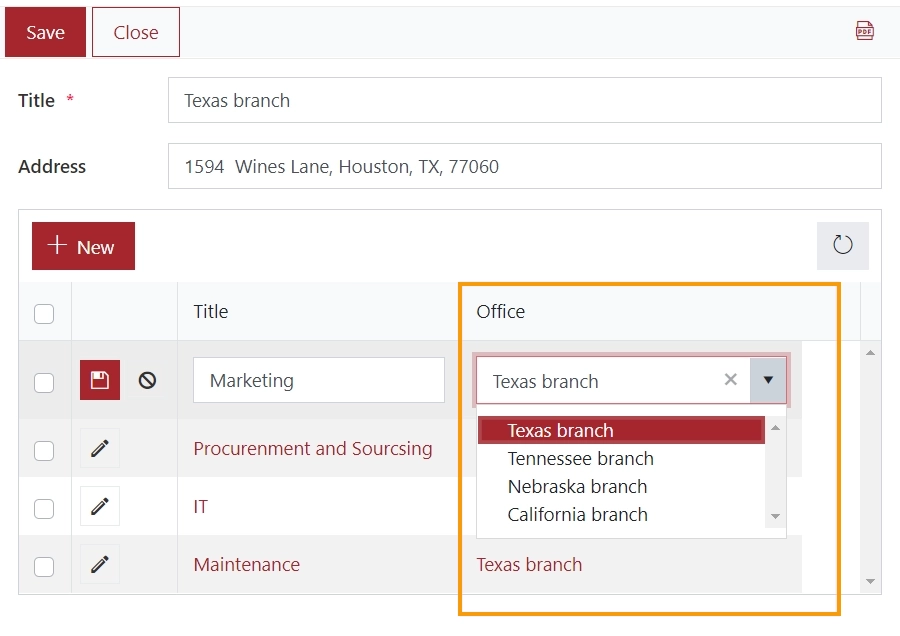

In List or Library control, the column that stores lookup control value is also rendered as a regular SharePoint lookup field, both in a dialog and in inline editing mode, and has the same functionality.

List or Library

Bind two lists on different sites¶

Add a Lookup control to your form and select a list from another site as its Data Source.

Create a new field for storing data in the Save To property. Save the form and navigate to the source list.

Display related items on a form¶

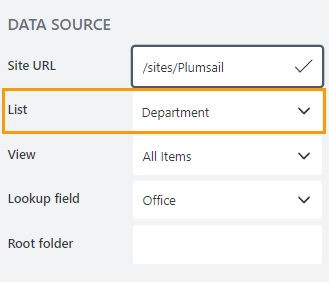

Add a List or Library control to the source list form and specify the list where we’ve just configured the cross-site lookup control as its Data Source.

Data Source

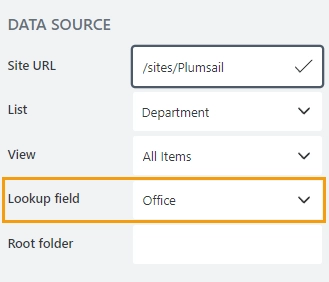

From Lookup Field dropdown select the field where the Lookup control value is stored.

Lookup field

This way, only related items will be displayed on the form and new items will be automatically bound to the parent item.

You can find more information on designing a form with the related items in our documentation here.


Filtration¶

As it is for the SharePoint field, you can configure filtration of items available in the Lookup control. This can be done using Depends on/Match to properties and using JavaScript for creating more complex filter conditions.

Depends on/Match to¶

With these properties, you can filter lookup values by Single Line text and Choice fields, and also by single value Lookup or Person fields. You can find instructions on how to configure filtration by different field types in this article.

For instance, you can create cascading dropdowns which source lists are stored on another site.

Let’s say, Office and ConferenceRoom lists are located on the same site - Assets. The conference rooms are linked to the offices using a regular lookup field. On the form, the list of conference rooms should be filtered by the selected office.

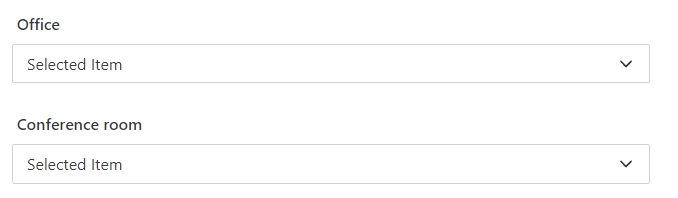

First, add two Lookup controls to the form. Name controls accordingly: Office and ConferenceRoom.

Cascading dropdowns

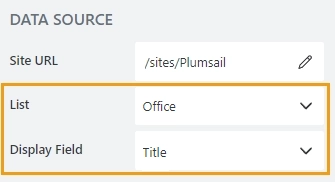

Select a data source for both controls.

Data Source

Next, go to ConferenceRoom control properties: General → Depends on property, select the Office lookup control.

Depends on

Then, in the Match to property, select the Office field from the source list. It’s best to match lookups by ID.

Match to

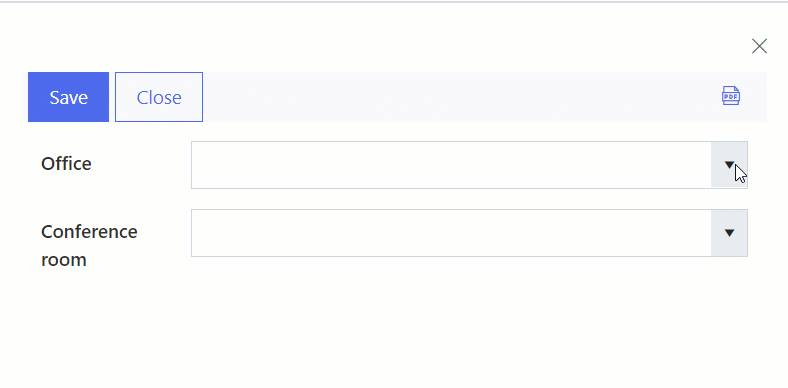

And this is how it works on the form:

Cascading dropdowns

Programmatic filtration¶

Use JavaScript to create more complex filter conditions.

Note

Regular fields are reachable via fd.field() method but since the Lookup control is not a field, use fd.control() for getting it in your code.

For instance, create static filtration of lookup values by two fields.

fd.spRendered(function () {
   fd.control('Lookup0').filter;
   //Show only active items which Title starts with 'A'
   fd.control('Lookup0').filter = " startswith(Title, 'A') and Status eq 'Active' "
});

Or allow users to search within two fields dynamically.

fd.spRendered(function() {
   //search within Title and Status
   fd.control('Lookup0').filter = function(filter) {
      var search = encodeURIComponent(filter);
      return filter
            ? "substringof('" + search + "', Title) or substringof('" + search + "', Status)"
            : '';
   }
   fd.control('Lookup0').useCustomFilterOnly = true;
});
