HTML

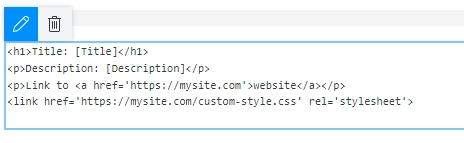

The HTML control allows you to add absolutely any HTML code to your forms. Can be used for variety of reasons, including loading of JavaScript files, creating hidden fields, etc. You can insert field values into the content by wrapping their internal names in square brackets.

This page contains a detailed description of the control properties and JavaScript samples which you can use with this control.

Properties
- Name
- Width
- Content
JavaScript framework

Properties

Here you can find properties available for the HTML control.

Name

A unique identifier for the control.

The Name property is used in JavaScript to select a specific control.

JavaScript

The Name property allows to work with the control via JavaScript code, like this:

fd.spRendered(() => {
    //can access the control using its Name:
    fd.control('Control1');
 });

Width

The property defines the width of the control in pixels.

If left blank, the control takes up the entire available width in the current grid cell.

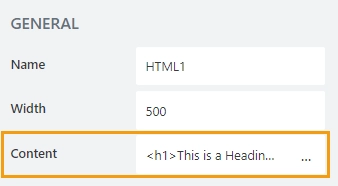

Content

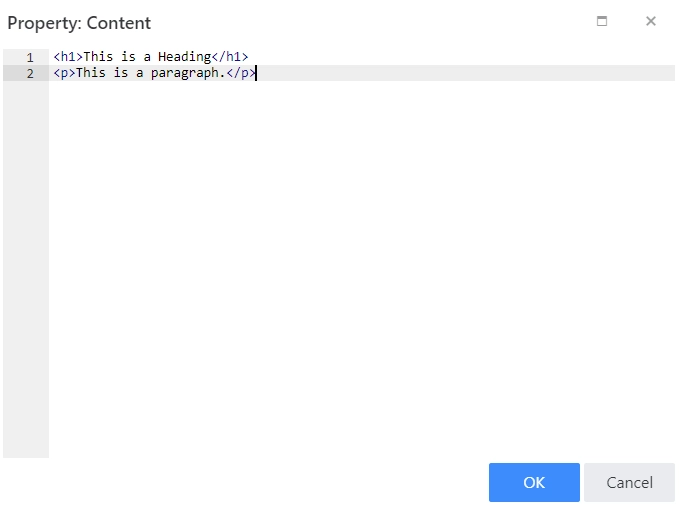

Opens an editor where you can input all the HTML content:

Input the HTML code of the editor and it will appear on the form:

JavaScript framework

In this section, you can find basic examples of how to work with the control using JavaScript.

If you are not familiar with the JavaScript framework, get started with the JavaScript basics.

Note

The control is only accessible once the form is rendered, so all calls to the control must be inside fd.spRendered event:

fd.spRendered(function(){
    //hide the control
    fd.control('Control1').hidden = true;
    //show the control
    fd.control('Control1').hidden = false;
});

Get or set HTML content

Get or set the HTML content with the following property:

//return the text as a string with HTML formatting
fd.control('Control1').html;

//set the text as a string with HTML formatting
fd.control('Control1').html = '<p> New text for the HTML control </p>';

//you can also insert field values with JavaScript
fd.control('Control1').html = '<h1>Title: [Title]</h1>';

Get HTML element

Access HTML element inside the control in order to modify it, hide it, or do something else.

//access control's HTML
const htmlControl = fd.control('Control1').$el;

Hide control

Hide a control from a user. The control value can still be accessed and changed with JavaScript.

//hide control
fd.control('Control1').hidden = true;

//show control
fd.control('Control1').hidden = false;
