How to make notes on images in web forms designed with Plumsail Forms

You can use the ‘Ink Sketch’ control to leave marks over a selected image. The image won’t be changed, but your drawings will be placed on top of it.

preview

This functionality can be useful in many cases: a user can draw directions on a map, leave marks in a patient card, make corrections in blueprints, specify damaged parts of a vehicle in an accident report form.

Configuration

Please follow the instruction below to put an attached image in the background of an ‘Ink Sketch’ control.

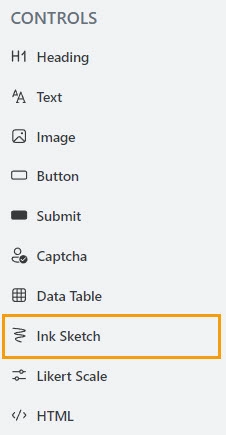

1. Add ‘Attachments’ field and ‘Ink Sketch’ control to the form.

Ink Sketch control

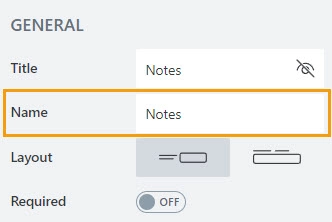

You need to know the internal name of the Ink Sketch control and the Attachments field to use them further in your code. To find the internal name, click on a field or control. In the right pane, you will see the ‘Internal Name’ property.

Internal Name

You can either change the internal name or leave it as it is.

2. Specify the desired height and width of the ‘Ink Sketch’ control.

height and width

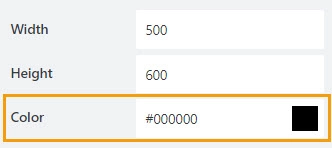

By default, the ink color is black. In the control settings, you can change the color.

InkColor

3. To put an attached image to the background of the ‘Ink Sketch’ control, you need to insert the below snippet to the JavaScript editor of the designer.

var attachmentsName = 'Attachments0';
var inkSketchName = 'Signature0';
var canvasSize = '600px 500px';

function updateBackground() {

    var attachmentsField = fd.field(attachmentsName);
    var inkSketchControl = fd.control(inkSketchName);

    if (attachmentsField.value && attachmentsField.value.length > 0) {

        //Getting URL of the attached file
        var imageURL = attachmentsField.value[0].url;

        //Setting the background
        inkSketchControl.$el.style = 'background-image: url("' + imageURL + '"); background-size:' + canvasSize + '; background-repeat: no-repeat;';

    } else {

        //Clearing the background
        inkSketchControl.$el.style = 'background-image: none;';

    }
}

fd.rendered(function(){

    // updating the background on changing the Attachments field
    fd.field(attachmentsName).$on('change', updateBackground);

    // update the background on form loading
    updateBackground();
});

To apply it to your form, you need to: - replace ‘Attachments0’ and ‘Signature0’ with the internal names of your ‘Attachment’ field and ‘Ink Sketch’ control; - specify the ‘Ink Sketch’ control canvas size in ‘canvasSize’ variable.

View submissions

You can save form submissions in your Plumsail Account:

  • Login to your Plumsail Account

  • Choose ‘Forms’ in the products list

  • Click the ‘Forms’ item in the left menu

  • Select a form which submissions you want to store in your account

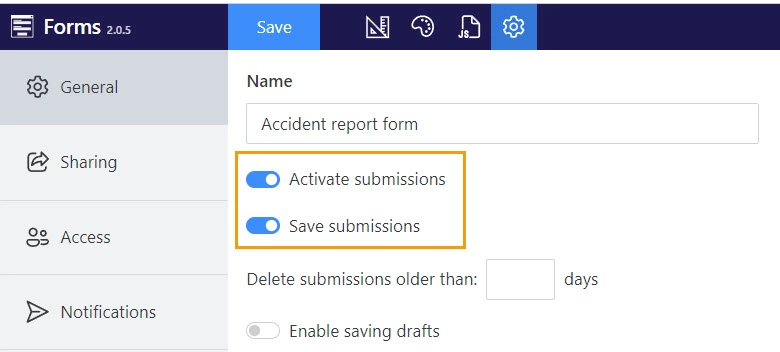

  • And turn on the ‘Save posts’ option

Save posts

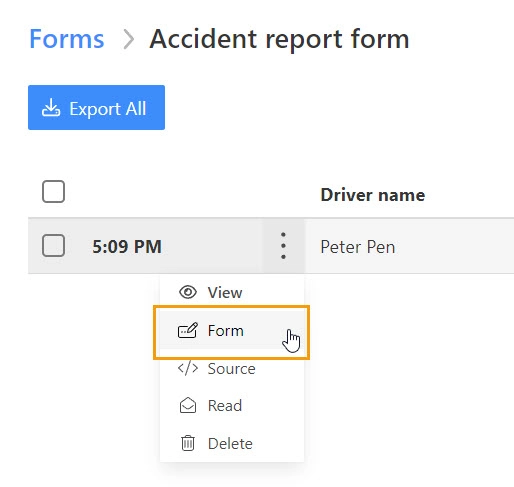

Now, once a user submits a form, you can view the submission by clicking the View icon:

View the submission

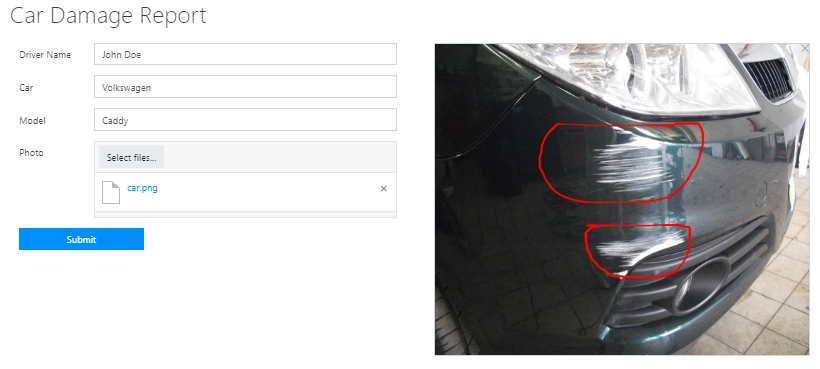

Here is an example of the submitted form:

example

Please see 'Ink Sketch control' documentation for more information about the control.
