Lists in DOCX templates

Bullet lists

You don’t need to declare any loops, the templating engine is smart enough to understand the structure of source object applied to your document. Thus, if you refer a property of an object inside a collection, it understands that we need to iterate it.

Let us assume we have information about customer names. JSON representation of the object:

[
    {
        "firstName": "Efren",
        "lastName": "Gaskill"
    }, {
        "firstName": "Sanly",
        "lastName": "Keyme"
    }, {
        "firstName": "Mark",
        "lastName": "Nigma"
    }
]

Tags in the template will look like this:

{{firstName}} {{lastName}}

Just select the string and change it into a bullet list by clicking the Bullets button:

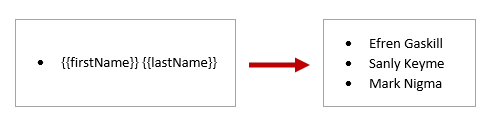

The template on the left side will result in the document on the right side:

Numbered lists

As with the bullet lists, you don’t need to declare any loops, the templating engine will understand the structure of source object applied to your document. Thus, if you refer a property of an object inside a collection, it understands that we need to iterate it.

We take the same information about customer names. Here is JSON representation of the object:

[
    {
        "firstName": "Efren",
        "lastName": "Gaskill"
    }, {
        "firstName": "Sanly",
        "lastName": "Keyme"
    }, {
        "firstName": "Mark",
        "lastName": "Nigma"
    }
]

Tags in the template will look like this:

{{firstName}} {{lastName}}

Select the sting and change it into a numbered list by clicking the Numbering button:

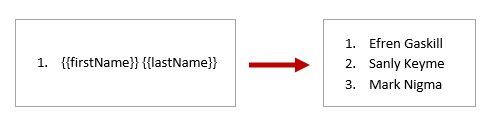

The template on the left side will result in the document on the right side:

Multilevel lists

You don’t need to declare any loops, the templating engine is smart enough to understand the structure of source object applied to your document. Thus, if you refer a property of an object inside a collection, it understands that we need to iterate it.

Let us take information about countries, their population, and cities. JSON representation of the object:

[
    {
        "country": "China",
        "persentOfWorldPopulation": "18.2%",
        "cities": [
            {
            "name" : "Shanghai"
            }, {
            "name" : "Beijing"
            }, {
            "name" : "Guangzhou"
            }
        ]
    }, {
        "country": "India",
        "persentOfWorldPopulation": "17.5%",
        "cities": [
            {
            "name" : "Mumbai"
            }, {
            "name" : "Delhi"
            }, {
            "name" : "Bangalore"
            }
        ]
    }, {
        "country": "United States",
        "persentOfWorldPopulation": "4.29%",
        "cities": [
            {
            "name" : "New York"
            }, {
            "name" : "Los Angeles"
            }, {
            "name" : "Chicago"
            }
        ]
    }
]

Here we have a collection of counties. Each country has a collection of cities.

The source template for this structure will look like this:

You can refer a property inside a collection and a property inside collection nested in another collection.

Tags:

• The {{country}} and {{persentOfWorldPopulation}} tags let the engine know that we want to render the list of countries and its population.

• The {{cities.name}} tag lets the engine know that we want to render the list of city names in a country.

You can learn more about loops and nesting in other sections of the documentation.

To create the template add these tags to your document:

{{country}} – {{persentOfWorldPopulation}}

{{cities.name}}

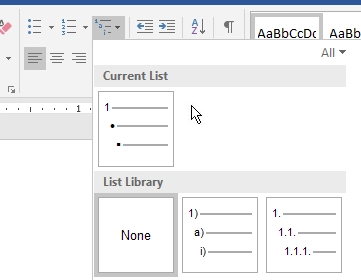

And turn the strings into a multilevel list using Multilevel List button:

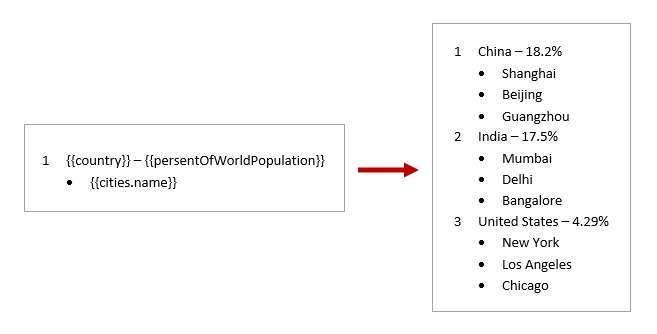

The template on the left side will result in the document on the right side:
