How to design complex and responsive public web forms with grids in Plumsail Forms

The Grid is a flexible container.

It allows you to place fields and controls side by side, control how many columns each row has. It’s used as a basis on every form, and inside of other containers – Tab Control, Accordion, Wizard.

In this article, we describe the advantages of using Grids instead of Tables in Forms.

Embedded Grid

Our Grid is based on Bootstrap Grid.

Key advantages

  • Responsiveness – an ability to design a single layout that is adjusted to any screen size automatically. It makes Grid even more useful when designing mobile-friendly forms.

  • Flexibility – no need to define the number columns for the whole Grid unlike we do for Tables. Each row can contain an arbitrary and unique number of columns. Thus, you can create a pretty complex form by using just a single Grid. The generated code is more compact with Grids and thus is rendered much faster by browsers.

  • Powerfulness – since the Grid is based on very popular Bootstrap grid, it contains a lot of built-in features e.g. predefined classes for adjusting forms to different screen sizes, aligning content inside a Grid, configuring spacing between cells, etc.

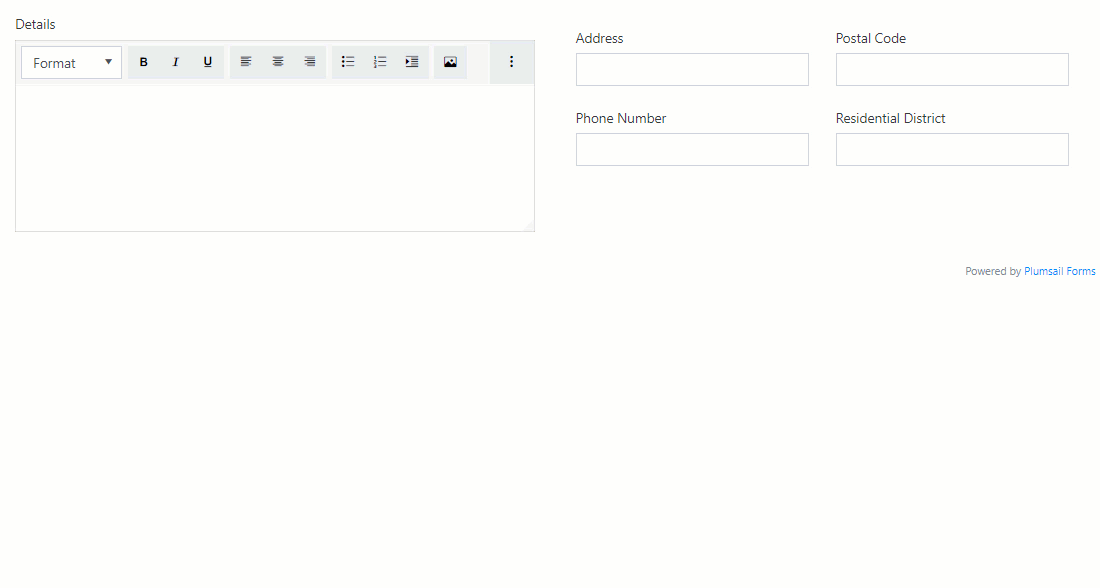

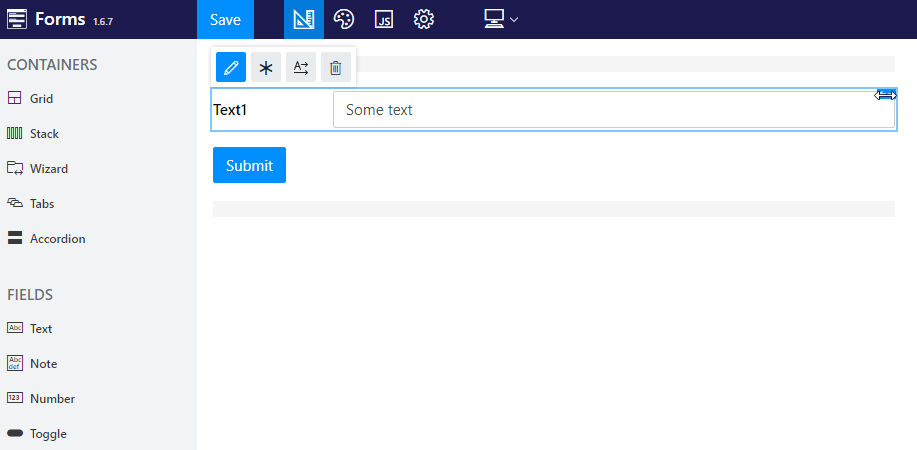

Result gif

Basics of Grid

Plumsail Forms leverages the Bootstrap grid providing a series of containers, rows, and columns to layout and align content in forms. It is built on flexbox and is fully responsive.

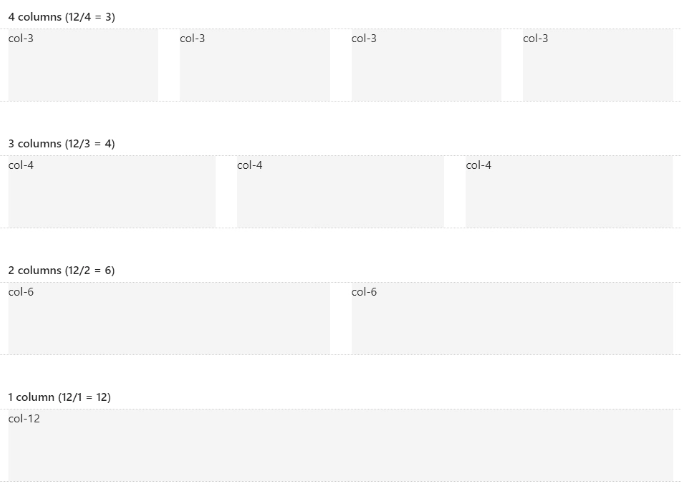

Each row can be split into up to 12 columns. In most cases, you will not use all 12 individual columns. But 12 evenly divides into 6 (halves), 4 (quarters) and 3 (thirds) that gives you a wide range of possibilities to organize content in a form.

Columns

Limit of 12

By default, each field or control placed into a form takes 6 columns of the root Grid and 12 columns of a nested Grid.

Control width

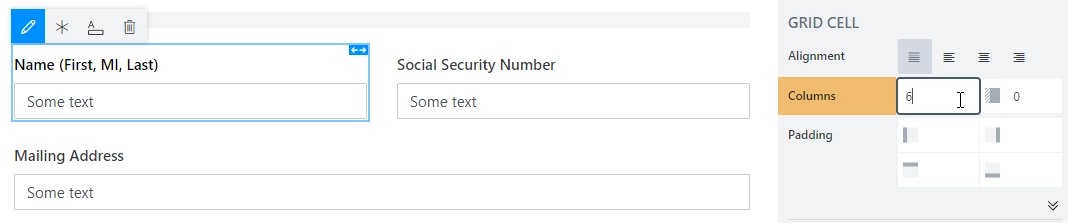

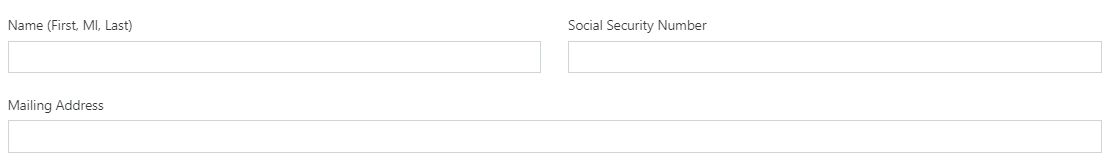

The Width can be changed as demonstrated for the Mailing Address field which size is 12 columns.

Mailing address

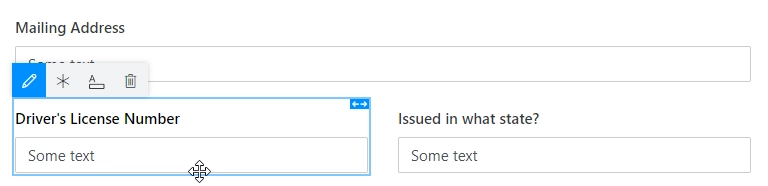

Designer restricts adding new elements into a row if the total width of all items in the row equals to 12.

Designer restriction

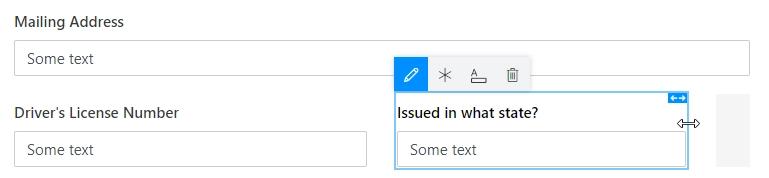

Once you reduce the width of the item(s) in a row, you’ll get a free space for adding new items.

Designer restriction overcome

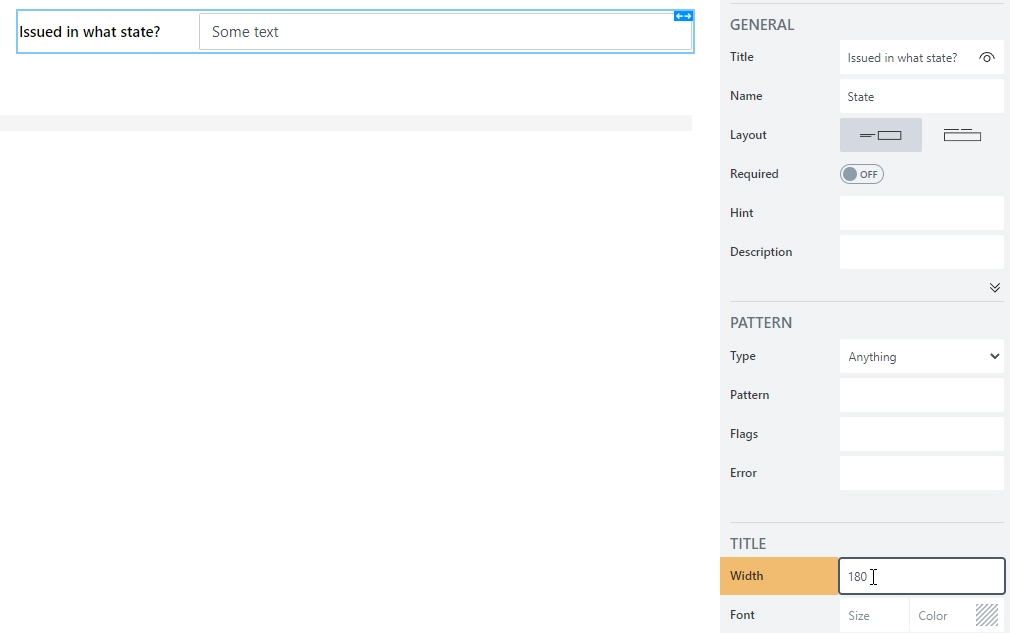

Title width

Standard Field title’s width is 120px but you can change it.

Title width

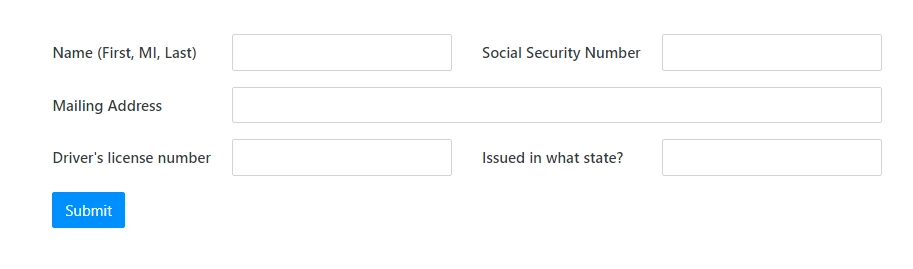

Here, title widths were adjusted to better fit form’s layout.

Title width adjusted

Nested Grid

You don’t need to limit yourself with 12 columns – nested Grids will allow you to adjust the placement of the fields exactly like you want to. Nested Grids also provide you an opportunity to place some vertically organized fields in a single row.

Nested

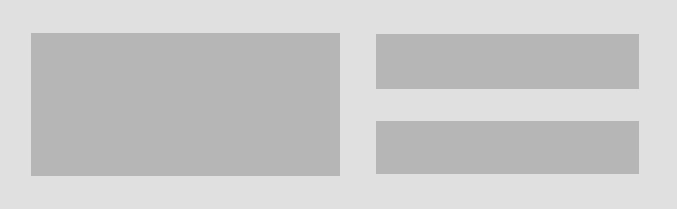

There are a lot of scenarios that require organizing fields in multiple rows in a single row of a parent Grid. Here, the nested Grids come in handy.

Nested handy

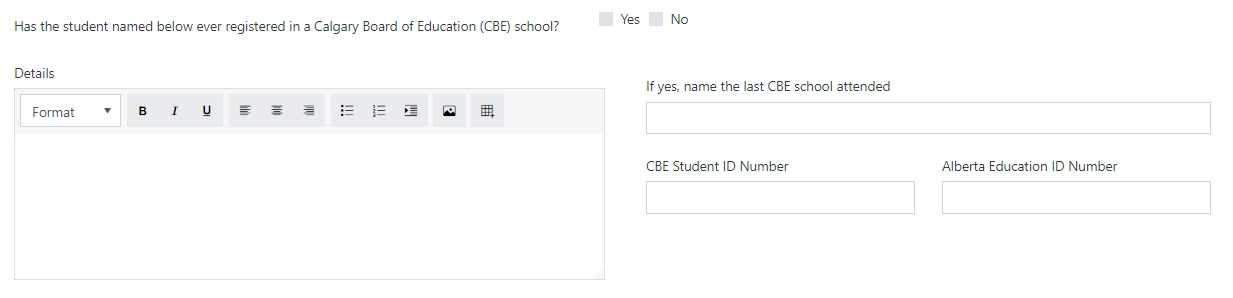

In this sample, we’ve added the Grid container to the form and placed fields inside in two rows. The result is:

Fields in two rows

Note

Another example for nested grids combining fixed and flexible layout can be found in the horizontal alignment with Stack container section.

Offset

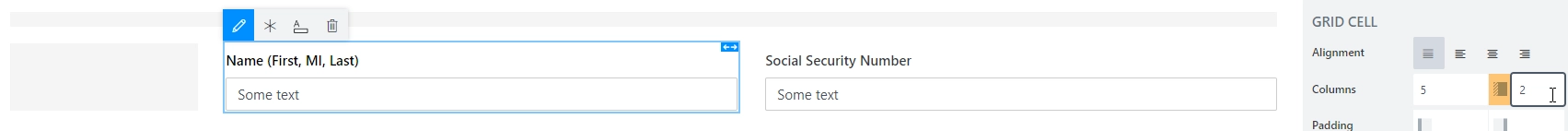

You can easily add spacing between fields or a field and Grid border with the Parent Grid’s Offset property.

Offset property

That’s how it looks like:

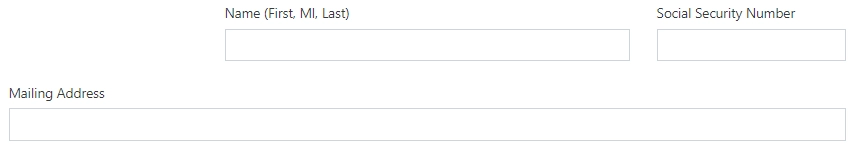

Offset

Stacked property and advanced responsiveness

In addition to the concept of column width, Bootstrap has different breakpoints or grid sizes. Each grid size encompasses a range that is designed to best-fit typical device screen widths such as that of desktops, laptops, tablets, and smartphones. These grid sizes enable you to change the layout of columns to best match different screen widths and device.

Designer implements the breakpoints functionality with Stacked property.

To make the Grid more responsive, Stacked property has four screen sizes on which the columns are stacked: Never (<576 px), Small (>=576px), Medium (>=768px), Large (>=992px). For example, if the Stacked property is set to Small, the columns will be stacked at the size of the screen < 576 px. If the Stacked property is set to Never the columns will not be stacked at all.

By default, the Stacked property of the Parent Grid is set to Small. That means that fields are not stacked on larger screens:

Fields not stacked

But they will be stacked for the screens with size less than 576 px:

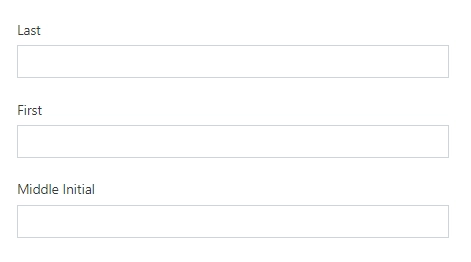

Fields stacked

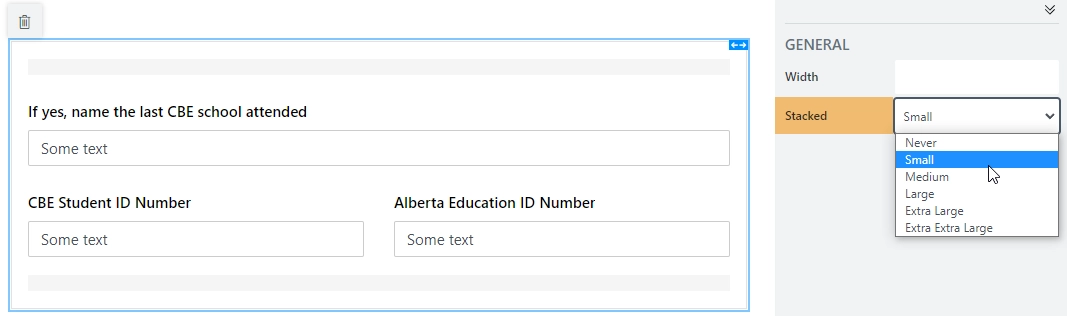

The Stacked property or the root Grid cannot be changed but you can override it in a nested Grid:

Stacked property override

By combining different values of the Stacked property for nested grids, you can define how your form will be adjusted to different screen sizes.

Example form

In the form below, I want to leave the Details field alone in a row even for a medium screen size while the remaining fields should be moved to a separate row as a table and collapse into a single column for a small screen.

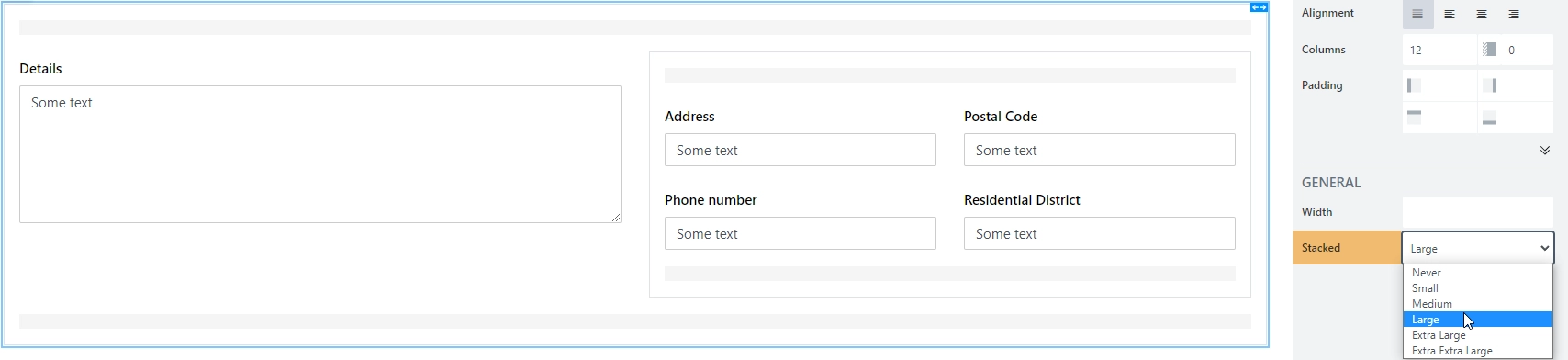

For this purpose, I’ve added a Grid and set its Stacked property to Large:

Stacked property large

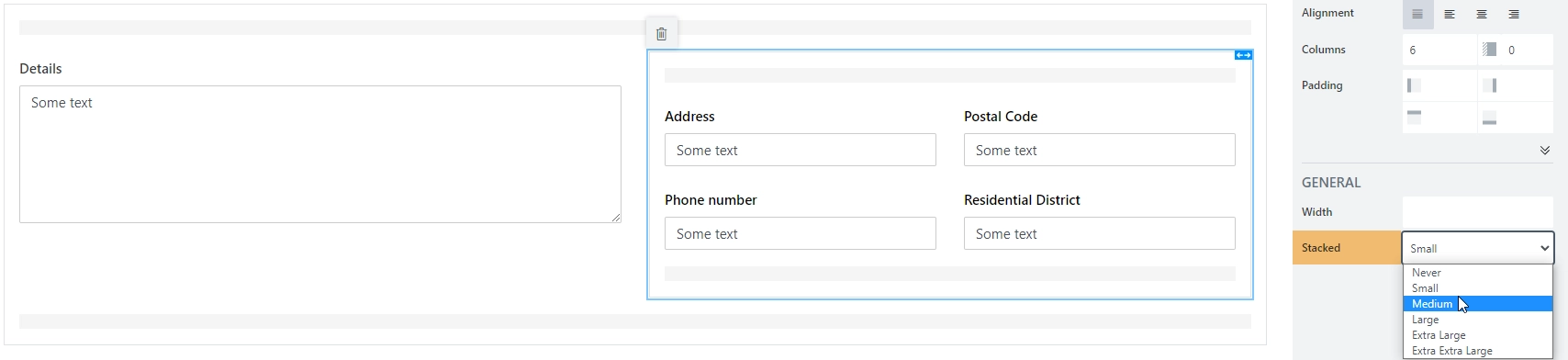

Then, I’ve added a nested Grid for Address, Postal Code, Phone Number and Residential District and set its Stacked property to Small which is default.

Stacked property small

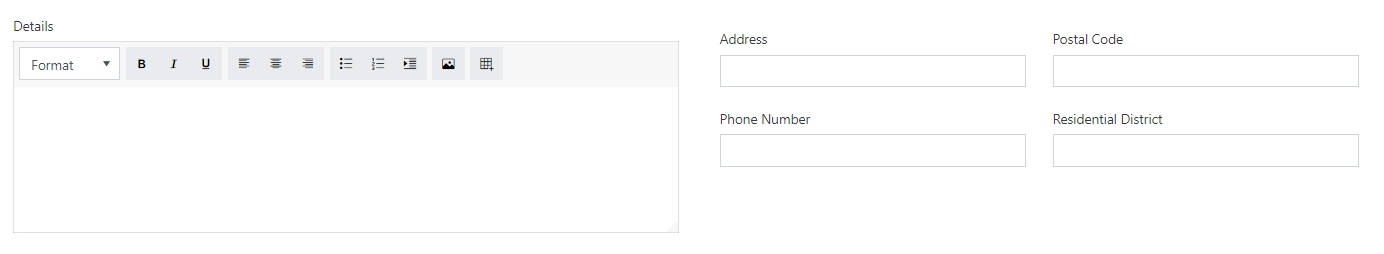

PC Screen

Screen size large

Tablet Screen

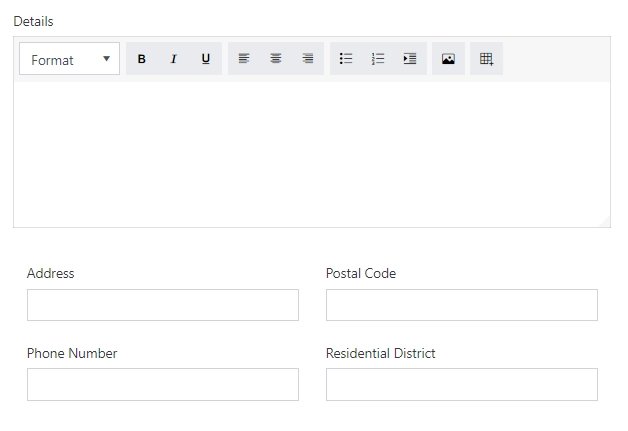

Screen size medium

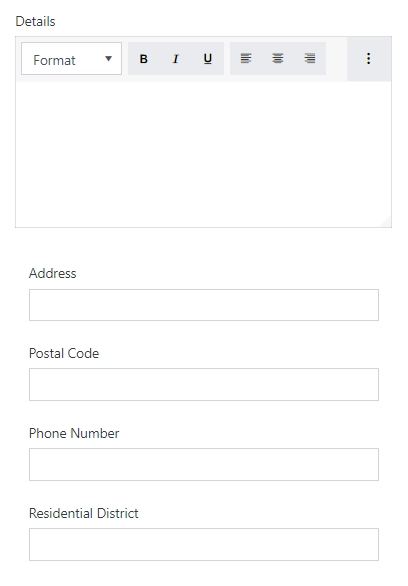

Mobile Screen

Screen size small

Combining Stacked property with extra CSS-classes provided by Bootstrap e.g. col-sm-, col-md-, or col-auto, allows you to define a layout of any complexity which perfectly suits any screen size.

Vertical alignment

Vertical alignment can be changed with the CSS-classes: align-items-start, align-items-center, align-items-end.

Grid wide alignment

Assign a CSS class to a nested Grid such as custom-grid. Use the following code to align items at the center vertically:

fd.rendered(function() {
    $('.custom-grid').find('.row:not(.form-group)').eq(0).addClass('align-items-center');
});

Where eq(0) uses a row index (zero-based).

You’ll get the following result:

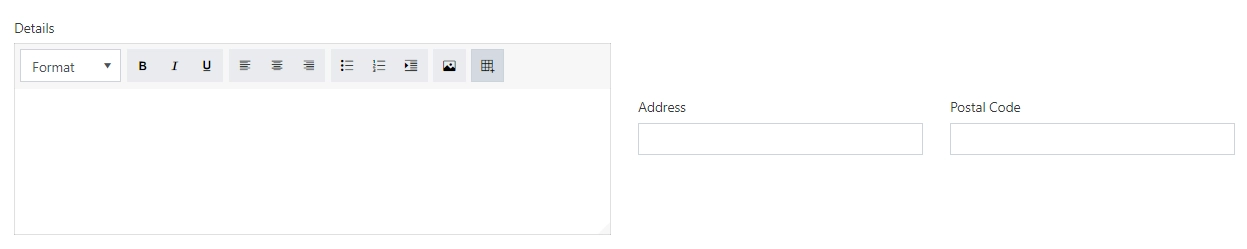

Align items center

Individual alignment

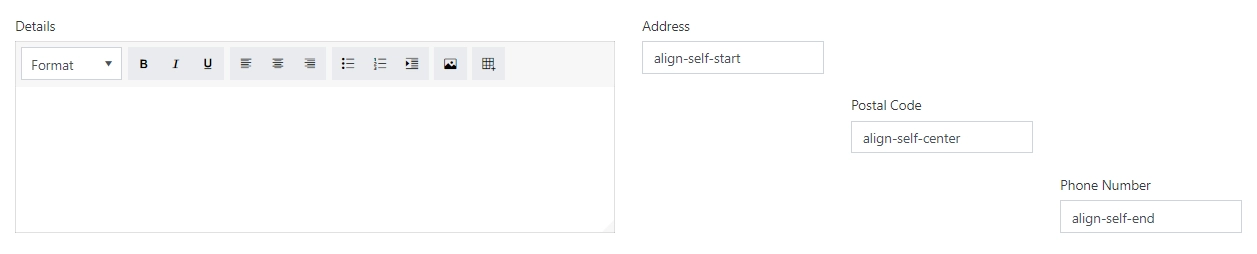

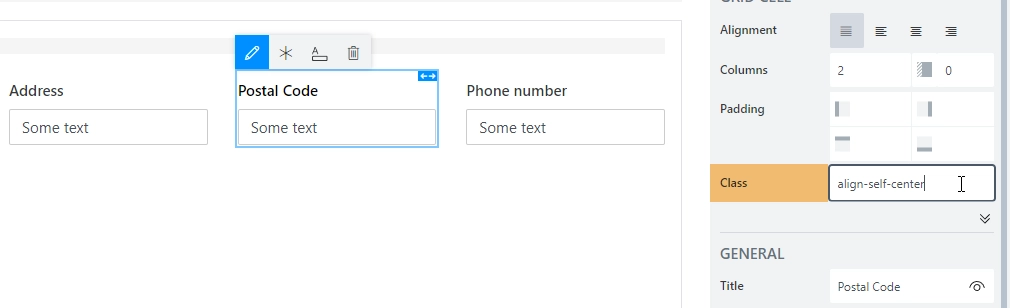

If you need to align fields in each column separately, use align-self-start, align-self-center, align-self-end CSS classes:

Align self center

That’s how it looks like for each class:

Align self

Horizontal alignment

Horizontal alignment can be changed with justify-content-start, justify-content-center, justify-content-end, justify-content-around, and justify-content-between.

We can assign a custom CSS class to our Grid and use the following JavaScript to give each row a different CSS class:

fd.rendered(function() {
    var rows = $('.custom-grid').find('.row:not(.form-group)');
    rows.eq(0).addClass('justify-content-start');
    rows.eq(1).addClass('justify-content-center');
    rows.eq(2).addClass('justify-content-end');
    rows.eq(3).addClass('justify-content-around');
    rows.eq(4).addClass('justify-content-between');
});

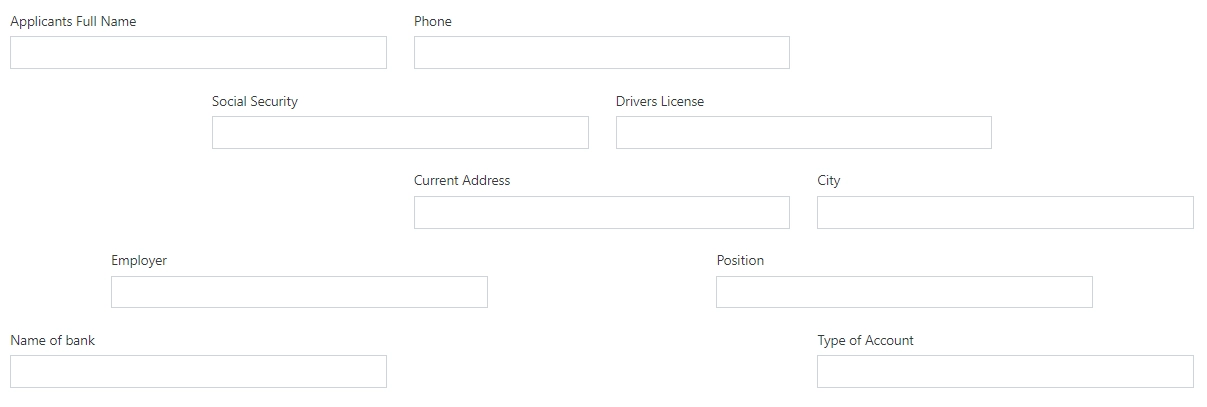

Here’s the result, each row uses different option for horizontal alignment:

Horizontal alignment

You can mix and match these classes, or only use one, depending on your needs.

Horizontal alignment with Stack container

If you combine Grid with Stack container, you can have horizontal alignment where some elements are fixed size in pixels, and others scale with the screen. For example, in the following case, the left column with personal information is fixed, and the last column with the message is filling out the rest of the screen:

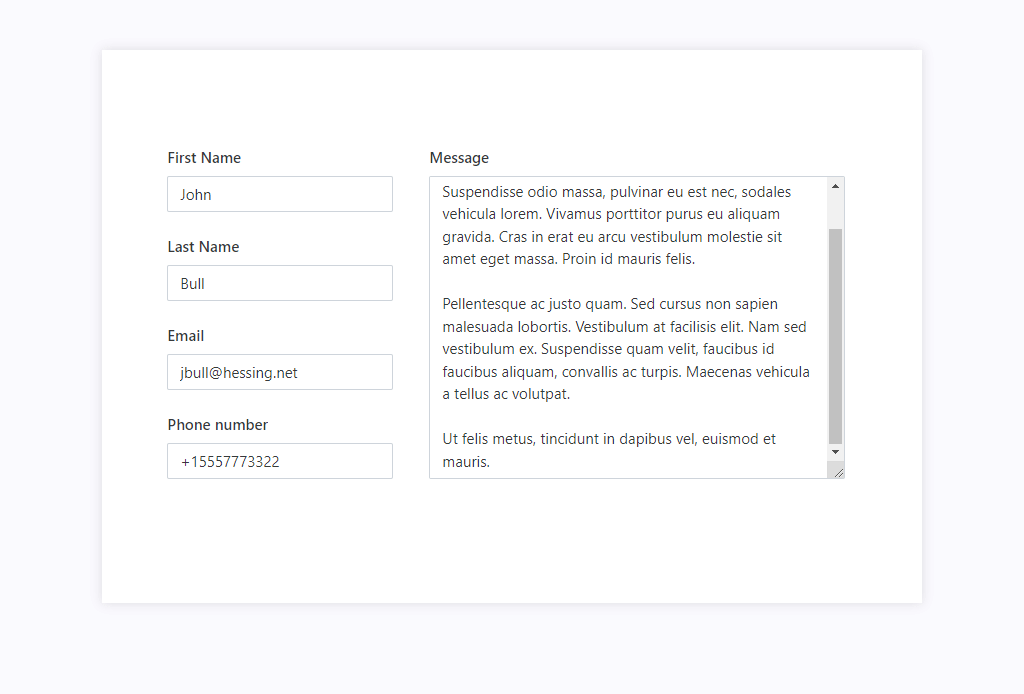

Stack fill animation

This is achieved by using nested Grids and Fill property of the Stack container:

fill

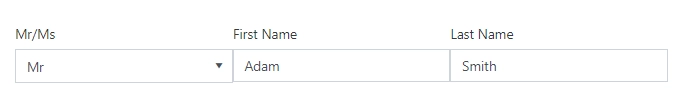

No spacing

The spacing between columns can be removed with g-0 CSS class.

Code sample:

fd.rendered(function() {
    $('.custom-grid').find('.row:not(.form-group)').eq(0).addClass('g-0');
});

No spacing
