icon URL field

The URL field allows to enter a URL. Entries that don’t confirm to the URL format will not be saved.

This page contains a detailed description of the field properties and JavaScript samples which you can use with this field.

../../_images/designer-airtable-field-types-url-preview.webp

Common Properties

Airtable Field

General

Title

Control

URL Properties

Here you can find properties specifically related to the URL field.

Pattern

This section allows you to configure advanced validation for a field. By default, the field is configured to validate URLs. If the value doesn’t fit the pattern, a corresponding error occurs.

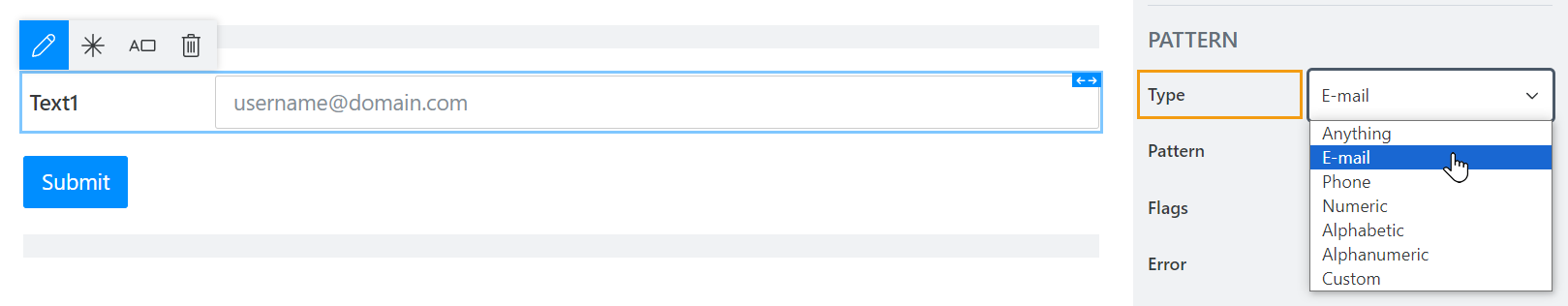

Type

Select the Type of the Text, this will automatically apply a regex pattern to it. Several types are available, such as Email, Phone, Numeric, etc. This will determine what type of text can be input, and will give field a validator to make sure that the input is correct.

Pattern Type property

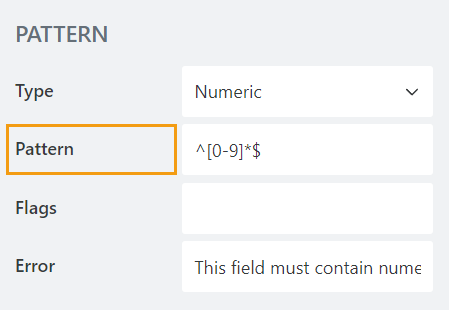

Pattern

A regex pattern which the field has to follow. You can either input your own, or select one of the available Types and it will be automatically set for you.

Pattern property

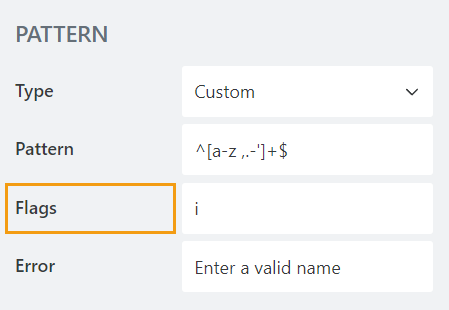

Flags

The flags modify the meaning of the given regex pattern. Each flag is denoted by a single alphabetic character, and serves different purposes in modifying the expression’s searching behavior.

Pattern Flags property

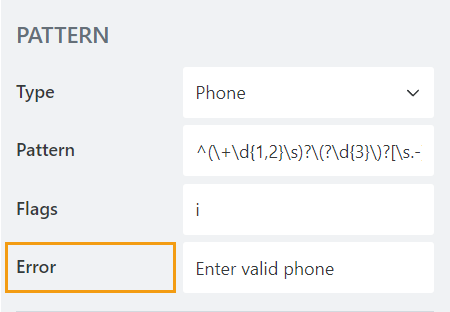

Error

The error message which is displayed when the input field value doesn’t match the regex pattern.

Pattern Error property

JavaScript framework

In this section, you can find basic examples of how to work with the field using JavaScript.

For more examples, check out Working with form fields in JavaScript article. If you are not familiar with the JavaScript framework, get started with the JavaScript basics.

Note

The field is only accessible once the form is rendered, so all calls to the field must be inside fd.rendered event:

fd.rendered(() => {
    // access the field's value and print in the browser's console
    console.log(fd.field('Field1').value);
});

Get or set field value

Access and change field value with the following property:

// get field value
fd.field('Field1').value;

// set field value
fd.field('Field1').value = 'Some URL';

Handle change event

Execute a function when a field value has been changed:

fd.field('Field1').$on('change', value => {
    // log changes to browser's console
    console.log('New value: ' + value);
});

Make field required

Make a field required or optional:

// make field required
fd.field('Field1').required = true;

// make field not required
fd.field('Field1').required = false;

Disable field

Make a field non-editable. The field value can still be changed with JavaScript and saved:

// disabled field
fd.field('Field1').disabled = true;

// enable field
fd.field('Field1').disabled = false;

Get HTML element

Access HTML element inside the field in order to modify it, hide it, or do something else.

// access field's control
let htmlField = fd.field('Field1').$el;

// access field's block, which includes title and control
let htmlFullField = fd.field('Field1').$parent.$el;

Hide field

Hide a field from a user. The field value can still be accessed and changed with JavaScript:

// hide field
fd.field('Field1').hidden = true;

// show field
fd.field('Field1').hidden = false;
