Use Plumsail Forms as REST API

Plumsail Forms provides a REST API to manage forms, submissions, and attachments programmatically.

Swagger API reference

You can find the Swagger API reference for Plumsail Forms at:

This API uses API keys for authentication. To create one, open the Forms section in your Plumsail account and go to the API keys page. Click the Add key button and give your key a descriptive name.

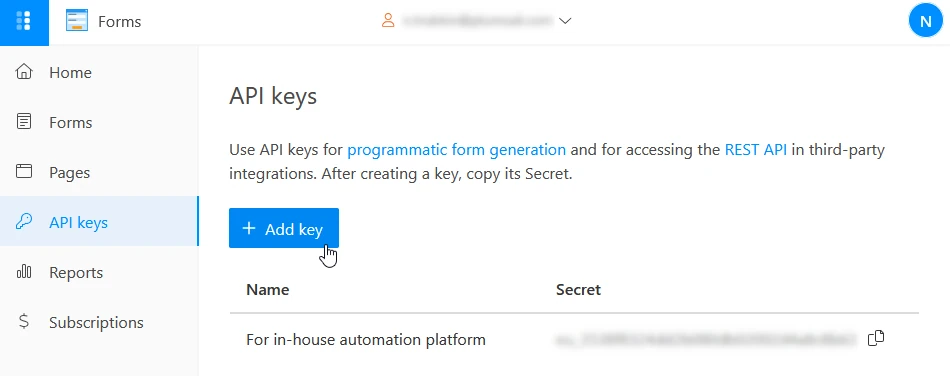

Page for managing API keys used for Forms REST API

Now that you have a key, copy its secret and pass it in the X-Api-Key header for API calls that require authentication.

Call the API from your code

This API is REST-based. Thus, you can use any programming language that can execute web requests, such as C#, PowerShell, Node.js, Python, or PHP.

There are a lot of ready to use helper REST API clients for those languages. Here are some of them:

RestSharp for C#
Invoke-RestMethod cmdlets for PowerShell
request - Simplified HTTP client for Node.js
Requests: HTTP for Humans for Python
Guzzle for PHP

Common API operations

The following endpoints let you manage forms, listen to new submissions, and delete attachments and submissions from your Plumsail account.

Get all public forms

Request an array of your public forms with their configurations and metadata:

curl --location --request GET 'https://forms.plumsail.com/api/v2/designer/forms' \
  --header 'X-Api-Key: <your-api-key>'

Response codes

200 OK — Returns an array of public forms
401 Unauthorized — Authorization information is missing or invalid

Get form schema

Retrieve the schema of a specific form:

curl --location --request GET 'https://forms.plumsail.com/api/v2/designer/forms/{formId}' \
  --header 'X-Api-Key: <your-api-key>'

A successful response returns a JSON object containing the stringified layout, configuration, and metadata of the specified form.

Note

Form layout is a JSON object that describes form structure, theming, and field definitions. It also contains user’s custom CSS and JavaScript. Exported forms use the same layout format.

Parameters

formId — The unique identifier (UUID) of your form. Path parameter.

Response codes

200 OK — Returns form schema
401 Unauthorized — Authorization information is missing or invalid
404 Not Found — Form with such formId was not found

Create new form

Create a new form by passing its name, layout, type, and optional form configuration inside the request body.

For example, to create a duplicate form, retrieve the form layout from the Get form schema endpoint and use the following request:

curl --location --request POST 'https://forms.plumsail.com/api/v2/designer/forms' \
  --header 'X-Api-Key: <your-api-key>' \
  --data-raw '{
    "type": 1,
    "name": "Duplicated form",
    "layout": "{formLayout}"
  }'

A successful response returns a JSON object containing the UUID of the new form.

Parameters

This endpoint expects to receive a JSON object inside the request body with the following properties:

id — A unique identifier (UUID) for the new form. Omit this to automatically generate the UUID.
type — A required enum that describes the markup type used for the form layout. For the current API version its value has to be 1.
name — A required string property describing the new name of the form.
layout — A required string property that holds a stringified JSON object. This object describes form structure, theming, field definitions, and custom CSS and JavaScript.

savePosts — A boolean property that describes whether to save form submissions in your Plumsail account.
postsLifespan — A number property that defines how many days to store the form submissions.
- If its value is 0, form submissions stay in your account indefinitely.
- Otherwise, they are automatically deleted from your Plumsail account after a set number of days.
saveDrafts — A boolean property that describes whether to enable and save form drafts.
draftsLifespan — A number property that defines how many days to store the form drafts.
- If its value is 0, form drafts stay in your account indefinitely.
- Otherwise, they are automatically deleted from your Plumsail account after a set number of days.
notify — An enum that defines who receives email notifications about new form submissions. Possible values are:
- 0 — No one receives email notifications
- 1 — Everyone inside the team receives email notifications
- 2 — Only the form owner receives email notifications
useBetaWidgetVersion — A boolean property that defines whether to use beta widgets for rendering forms.

Response codes

201 Created — The form is successfully created
400 Bad Request — Some passed properties are invalid
401 Unauthorized — Authorization information is missing or invalid
409 Conflict — Another form with the same name or id already exists

Update existing form

Update the form layout and configuration by passing a JSON object inside the request body. Include only those object properties that you want to update.

For example, use the following request to change the form name and enable form drafts:

curl --location --request PUT 'https://forms.plumsail.com/api/v2/designer/forms/{formId}' \
  --header 'X-Api-Key: <your-api-key>' \
  --data-raw '{
    "name": "New form name",
    "saveDrafts": true,
    "draftsLifespan": 30
  }'

Parameters

formId — The unique identifier (UUID) of your form. Path parameter.

The following parameters are passed as JSON properties inside the request body and are optional. Use only those properties that need to be updated.

name — A string property describing the new name of the form.
layout — A string property that holds a stringified JSON object. This object describes form structure, theming, field definitions, and custom JavaScript and CSS.

savePosts — A boolean property that describes whether to save form submissions in your Plumsail account.
postsLifespan — A number property that defines how many days to store the form submissions.
- If its value is 0, form submissions stay in your account indefinitely.
- Otherwise, they are automatically deleted from your Plumsail account after a set number of days.
saveDrafts — A boolean property that describes whether to enable and save form drafts.
draftsLifespan — A number property that defines how many days to store the form drafts.
- If its value is 0, form drafts stay in your account indefinitely.
- Otherwise, they are automatically deleted from your Plumsail account after a set number of days.
notify — An enum that defines who receives email notifications about new form submissions. Possible values are:
- 0 — No one receives email notifications
- 1 — Everyone inside the team receives email notifications
- 2 — Only the form owner receives email notifications
useBetaWidgetVersion — A boolean property that defines whether to use beta widgets for rendering forms.

Response codes

204 No Content — The form is successfully updated
400 Bad Request — Some properties are invalid
401 Unauthorized — Authorization information is missing or invalid
404 Not Found — Form with such formId was not found
409 Conflict — There is already another form with the same name

Delete form

Delete the form with the specified formId.

curl --location --request DELETE 'https://forms.plumsail.com/api/v2/designer/forms/{formId}' \
  --header 'X-Api-Key: <your-api-key>'

Parameters

formId — The unique identifier (UUID) of your form. Path parameter.

Response codes

204 No Content — Form successfully deleted
401 Unauthorized — Authorization information is missing or invalid
404 Not Found — Form was not found

Unsubscribe from form submissions

Remove a subscription to stop receiving new submissions on your endpoint:

curl --location --request DELETE 'https://forms.plumsail.com/api/submissions/{subscriberId}'

Parameters

subscriberId — The unique identifier (UUID) of the subscription you want to remove. Path parameter.

Response codes

200 OK — Subscription successfully removed

Delete form submission

Delete a specific form submission using its identifier:

curl --location --request DELETE 'https://forms.plumsail.com/api/forms/{formId}/submissions/{submissionId}' \
  --header 'X-Api-Key: <your-api-key>'

Parameters

formId — The unique identifier (UUID) of the form. Path parameter.
submissionId — The ID of the submission you want to delete. Path parameter.

Response codes

204 No Content — Submission successfully deleted
401 Unauthorized — Authorization information is missing or invalid
404 Not Found — Form or submission was not found

Delete attachment

Delete an attachment by its URL:

curl --location --request DELETE 'https://forms.plumsail.com/api/attachments' \
  --header 'X-Api-Key: <your-api-key>' \
  --data-raw '{fileUrl}'

Parameters

fileUrl — The URL of the attachment file. Body parameter passed as a JSON string.

Response codes

204 No Content — Attachment successfully deleted
401 Unauthorized — Authorization information is missing or invalid

Best practices

Store credentials securely — Never expose your key secrets in client-side code or public repositories.
Use environment variables — Store key secrets in environment variables for better security.
Handle errors gracefully — Implement proper error handling for all API calls, especially 401 Unauthorized responses.
Use webhooks for real-time data — Use the respective endpoint to Subscribe to form submissions for real-time notifications.
Cache form schemas — Form schemas rarely change (unless you update the form), so you can cache them to reduce unnecessary API calls.
Use HTTPS only — All API requests must use HTTPS.

Complete workflow example

Here’s a complete example workflow showing how to use the API.

Step 1: Get your forms

Get a list with the metadata for all of the forms created under your Plumsail account:

curl --location --request GET 'https://forms.plumsail.com/api/v2/designer/forms' \
  --header 'X-Api-Key: <your-api-key>'

Step 3: Receive submissions at your webhook

Your webhook endpoint will receive POST requests when the form is submitted. Submissions are sent as a JSON object inside the request body. For example, the following is a submission with two fields: PetName and Pictures.

{
  "PetName": "Otto",
  "Pictures": [
    {
      "id": "e24ea958-23e6-498d-bc7b-428902b1385e/bc21ce2a-78b4-4ecc-8cb0-1d2ce6a563fd/8acde94f-otto.png",
      "file": "otto.png",
      "url": "https://plumsailforms.blob.core.windows.net/ae518b6f-af62-4e3d-a3d4-f785b31b5578/e24ea958-23e6-498d-bc7b-428902b1385e/bc21ce2a-78b4-4ecc-8cb0-1d2ce6a563fd/a107a2f9-otto.png",
      "uid": "8acde94f-ee2d-4b6e-8815-2a9b34ae9af1",
      "size": 231
    }
  ],
  "__id": "bc21ce2a-78b4-4ecc-8cb0-1d2ce6a563fd"
}

Step 4: Delete old submissions

Once you received a submission, you can delete it from your Plumsail account:

curl --location --request DELETE 'https://forms.plumsail.com/api/forms/{formId}/submissions/{submissionId}' \
  --header 'X-Api-Key: <your-api-key>'

Step 5: Download or delete attachments

Use the attachment file URL from the received submissions to download and delete attachments.

To download an attachment, make a GET request using the file URL:

curl --location --request GET '{fileUrl}' \
  --output image.png

To delete an attachment, use the Delete attachment endpoint:

curl --location --request DELETE 'https://forms.plumsail.com/api/attachments' \
  --header 'X-Api-Key: <your-api-key>' \
  --data-raw '{fileUrl}'
