icon Tabs

The Tabs container organizes form content into tabs.

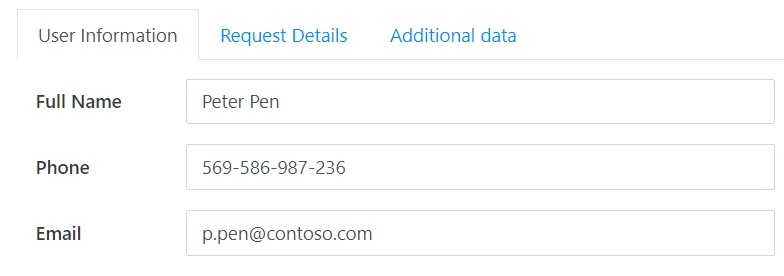

Tabs preview

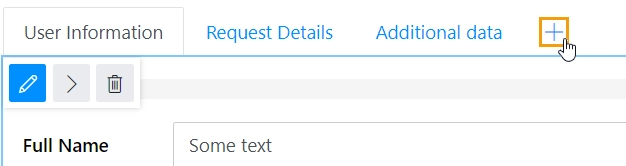

You can add as many tabs as you need. To add a new tab, simply click on the plus symbol:

Add a tab

This page contains a detailed description of the container properties and JavaScript samples that you can use with this container.

Properties

Here you can find properties specifically related to the Tabs container.

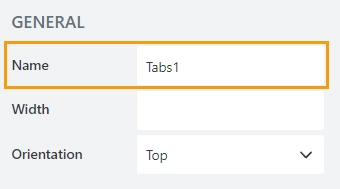

Name

A unique identifier for the container.

Name property

JavaScript

The Name property allows to work with the container via JavaScript code, like this:

fd.spRendered(function(){
   //hide container
   fd.container('Tab1').hidden = true;
});

Width

The property defines the width of the container in pixels.

If left blank, the container takes up the entire available width in the current grid cell.

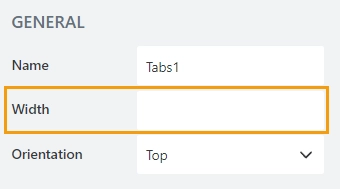

Width property

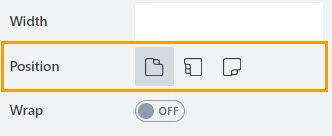

Position

The property defines tabs position relative to the content inside:

Position property

Tabs can be positioned at:

  • Top:

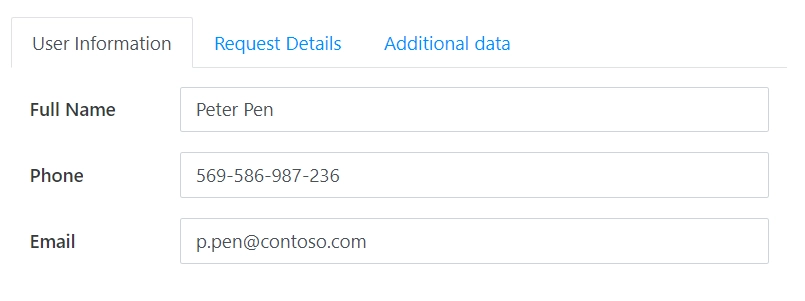

    Top orientation

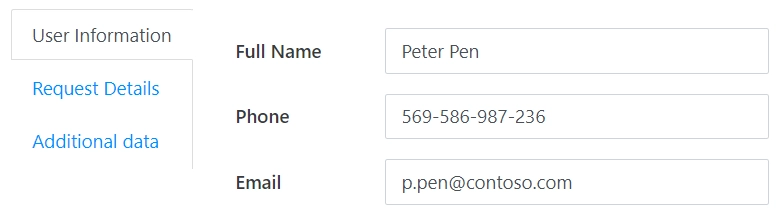

  • Left:

    Left orientation

  • Bottom:

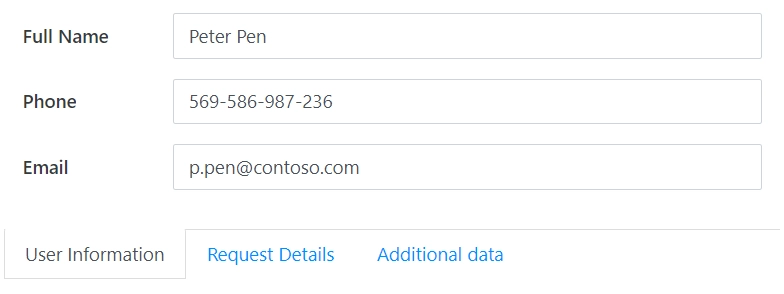

    Bottom orientation

Pills

The property defines the appearance of the container’s navigation:

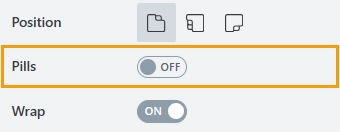

Pills

  • disabled: the navigation appears as tabs:

Disabled

  • enabled: the navigation appears as pills:

Enabled

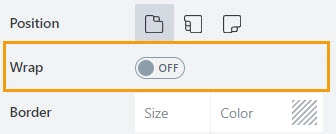

Wrap

The property defines how tabs behave when the container exceeds the window width.

Wrap

  • disabled: users will see arrows for navigating between tabs:

Wrap off

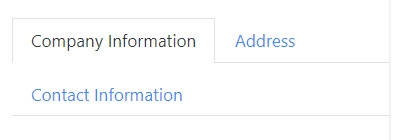

  • enabled: tabs will wrap onto multiple lines:

Wrap on

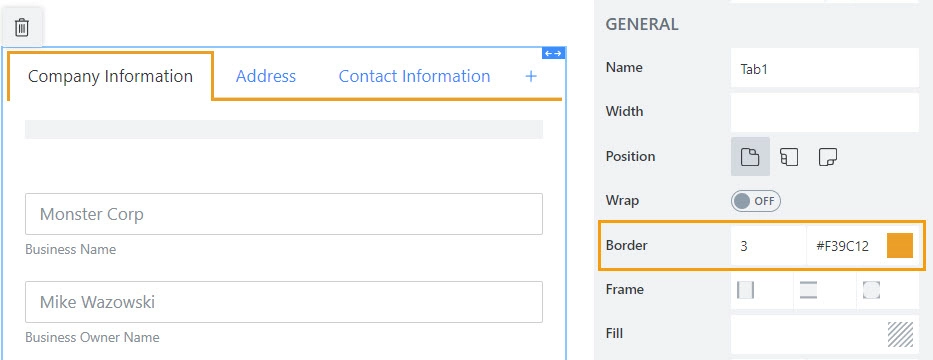

Border

The property defines the tabs’ border width and color:

Border

Frame

The property defines the horizontal and vertical padding (extra space) and border radius (roundness) of the tabs:

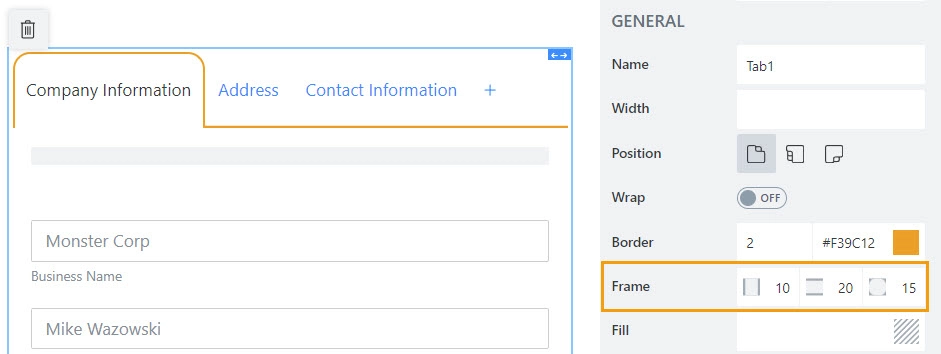

Frame

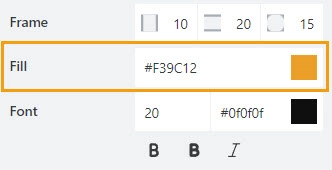

Fill

The property defines the background color of the tabs:

Fill

Font

Format tabs’ titles using these settings:

  • font size:

font-size

  • font color; use the color picker or enter the Hex color code:

font-color

  • font style: Normal, Bold or Italic:

font-style

Tab title

The property defines the header of a tab.

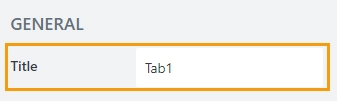

Tab title property

JavaScript framework

In this section, you can find basic examples of how to work with the containers using JavaScript.

If you are not familiar with the JavaScript framework, get started with the JavaScript basics.

Note

The container is only accessible once the form is rendered, so all calls to the containers must be inside fd.spRendered event:

fd.spRendered(function(){
    //hide the container
    fd.container('Container1').hidden = true;
    //show the container
    fd.container('Container1').hidden = false;
});

Get HTML element

Access HTML element inside the container.

//access container's HTML
var htmlcontainer = fd.container('Container1').$el;

Hide container

Hide a container from a user.

//hide container
fd.container('Container1').hidden = true;

//show container
fd.container('Container1').hidden = false;

Tabs

The property holds tabs of the container as an array of objects. Can be used to get tabs and their properties.

fd.container('Container1').tabs

Detect tab change

Execute a function when a user switches between tabs:

fd.container('Container1').$watch('currentTab', function(newIndex, prevIndex) {
    alert('Previous tab: ' + prevIndex);
    alert('Current tab: ' + newIndex);
});

Disable tab

Disable or enable a tab:

//disable the second tab
fd.container('Container1').tabs[1].disabled = true;

//enable the second tab
fd.container('Container1').tabs[1].disabled = false;

Hide tab

Hide or show a tab dynamically using a combination of JavaScript code and CSS.

Disable the tab:

//disable the second tab
fd.container('Container1').tabs[1].disabled = true;

//enable the second tab
fd.container('Container1').tabs[1].disabled = false;

Add CSS styling to hide the disabled tab:

.fd-form .tabset .disabled{
    display: none; /* hide disabled tabs */
}

Highlight tab

Highlight specific tab using CSS:

/* set the second tab background */
.fd-form .tabset li:nth-child(2) a {
        background-color: crimson !important;
        color: white !important;
}

/* set the second tab background when it is opened */
.fd-form .tabset li:nth-child(2) a.active {
        background-color: gold !important;
        color: black !important;
}

Current tab

Get the index of the currently opened tab:

//returns integer
fd.container('Container1').currentTab;

Next/Previous tab

Open the next or previous tab:

//open next tab
fd.container('Container1').nextTab();

//open previous tab
fd.container('Container1').previousTab();

Open tab

Open a tab by index:

//open the first tab
fd.container('Container1').setTab(0);

//oepn the last tab
fd.container('Container1').setTab(
    fd.container('Container1').tabs.length -1
);

Tabs orientation

Get or set tabs position:

//returns the current tabs position
fd.container('Container1').orientation;

//set tabs position
fd.container('Container1').orientation = 'left';
