Add widget to SharePoint site (legacy widgets)

Note

Use this guide for HelpDesk versions earlier than 2.1.24.

Creating widget configuration

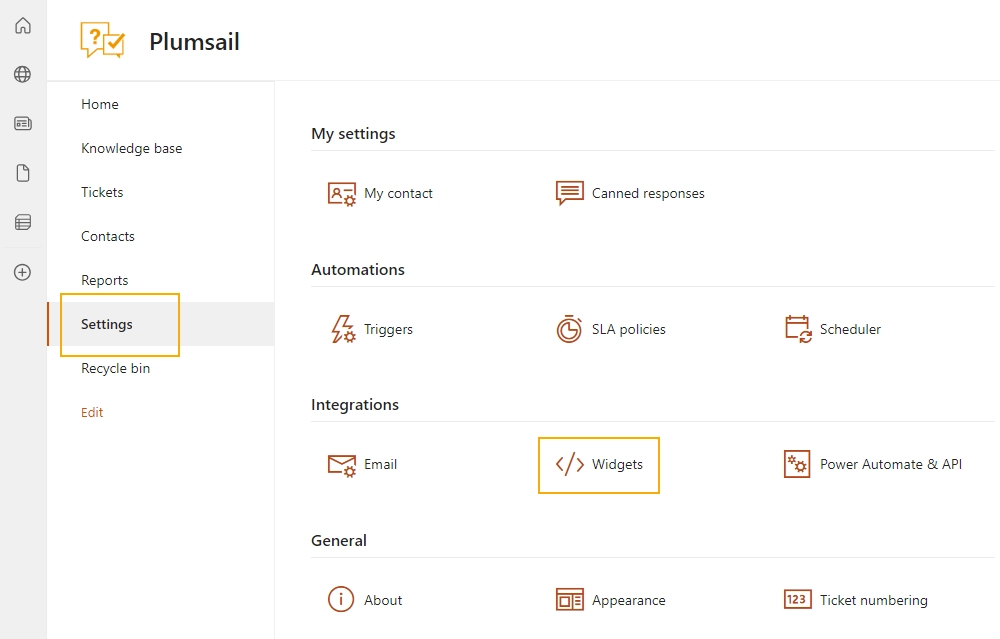

Open HelpDesk site and navigate to the Settings tab using the left navbar. Click on the Widgets button.

Widget button

To create a new widget, click on the + New widget configuration button. You can also edit any existing configuration by clicking on the name of the widget. Please note that editing the widget configuration applies to every existing widget with this configuration.

Create a new item

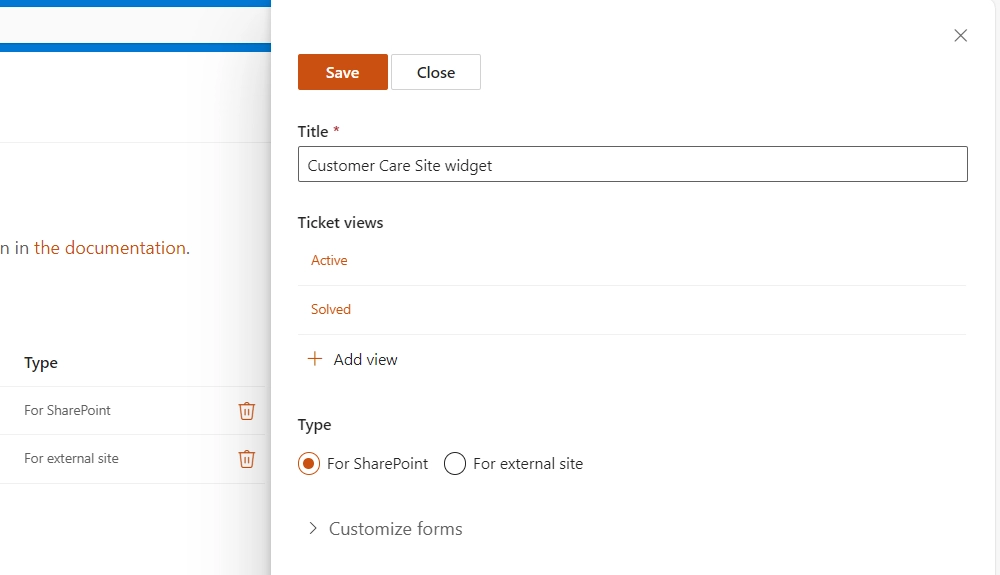

Provide a Title for the widget and choose “For SharePoint” as its Type.

SharePoint widget

Check the configuration of the default views. You can set how many Tickets per page the widget will have for a certain view. The Display fields property specifies what information about tickets will be exposed on the widget list. Just start typing the name of a field and pick it up from the dropdown list. Creation of custom views is also available and described in this article.

To include private comments from a ticket to the widget view activate the option Include private comments.

Edit widget view

Note

Display fields customization is available from version 1.4.7 and custom views—from version 2.1.9.

Note

Display fields are cached for 30 minutes for optimisation purposes. You will need to clear browser cache to apply your changes immediately.

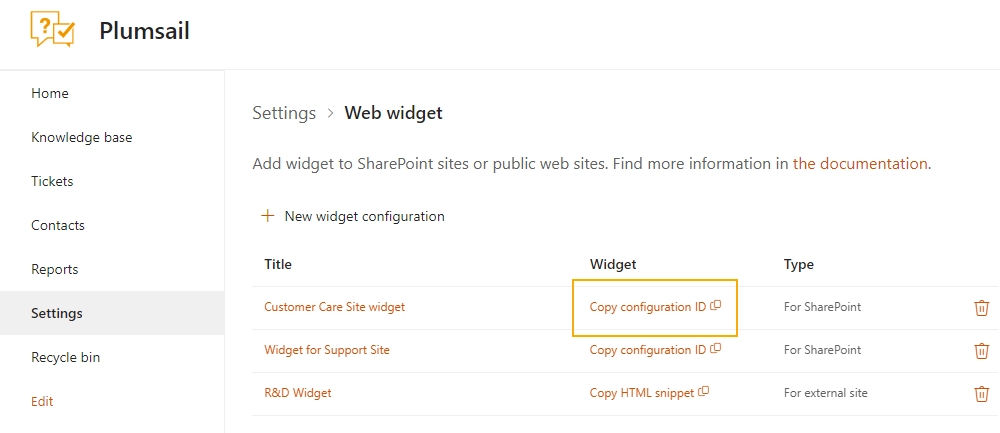

After saving, a configuration ID for SharePoint will be generated—copy it for inserting into the web part on a page.

Generated ID

Adding widget to modern SharePoint page

Navigate to a page where you’d like to place a widget.

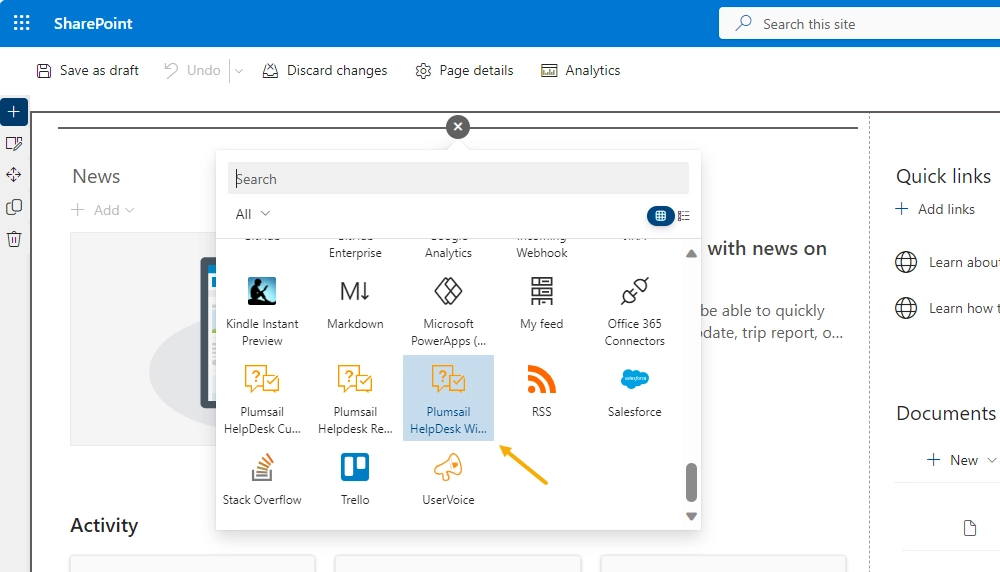

Pick Plumsail HelpDesk Widget web part from the menu to add it to your page:

Pick the HelpDesk web part

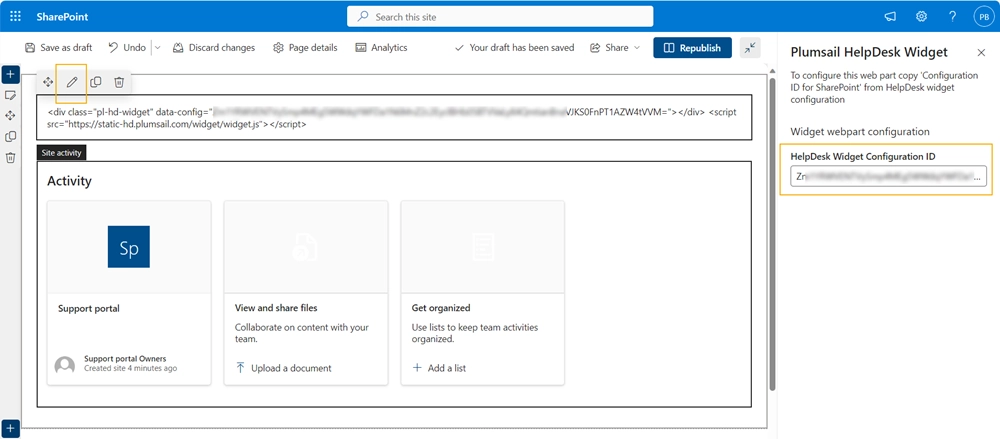

Once you added the web part you need to configure it. Just copy ‘Configuration ID for SharePoint’ from the widget configuration form, click on the pencil button in the widget settings and paste it to the corresponding web part property.

Copy ID to the web part

Publish the page. Your HelpDesk widget is ready to use. When a user opens the page with the widget, it automatically detects the user’s account and shows only their tickets.

The widget on the page
