String Processing Advanced¶

Render Text Template¶

Renders text or HTML template using data from dictionary variable. It uses Mustache templating engine to render text templates and supports tokens for single values as well as iterators to render collections of elements. You can play around with sample template on github. You can find more information about syntax in the documentation for Mustache.

You can receive dictionary data from various sources, such as web services, CAML queries or build dictionary manually. This article provides detailed explanation with use case for this workflow action.

Output parameters¶

Parameter	Description	Example
Result	The result string generated by template.	Dear John Smith, Thank you for your order.

Input parameters¶

Parameter	Description	Example
Template data	Input dictionary data that will be used for rendering. For example it can be result of Build Dictionary or Get Items by Query workflow actions.	`{ "name":"John Smith" }`
Text	The input template string. You can find more information about syntax in the documentation for Mustache.Store your templates in the separate list and query it by name to simplify templates management.	Dear `{{name}}`, Thank you for your order.
ThrowError	Detects whether workflow should be interrupted in case of error or not.	Yes

Example¶

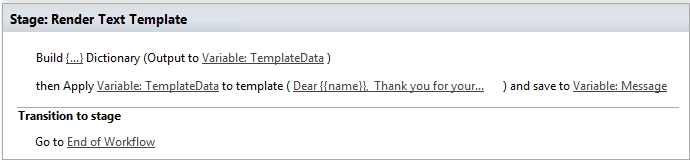

In this example we build dictionary manually using Build Dictionary workflow action. Then we render it using the workflow action.

Convert HTML to PDF¶

This workflow action converts specified HTML to PDF file and uploads it to the document library.

Output parameters¶

Parameter	Description	Example
Result file URL	In specific variable will be stored URL at file	`https://contoso.onmicrosoft.com/Invoices/Invoice_4.pdf`

Input parameters¶

Parameter	Description	Example
Input HTML	Input html for conversion	[Variable:InputHtml] <div> <h1> Hello! </h1> </div>
File name	File name in document library, can contain path	Invoice1.pdf or Folder1/Folder2/Invoice.pdf
List	Name, url or guid of the list	Invoices/Invoices
Paper Size	Size of the page, it supports the following values: A0 A1 A2 A3 A4 A5 Folio Ledger Legal Letter ...	A4
Is landscape	Page orientation	No
AdminLogin	The login of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.	`admin@contoso.com`
AdminPassword	The password of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.	admin’sP@ssw0rd$
SiteUrl	The URL of the current SharePoint site. This property defines context of the workflow action. All actions performed by workflow action will be executed on specified SharePoint site. If this property is blank it will use current SharePoint site by default.	`https://contoso/SiteUrl [%Workflow Context:Current Site URL%]subSite`
ThrowError	Detects whether workflow should be interrupted in case of error or not.	Yes
RunAsPublisher	Detects whether the workflow action has to be ran under the user account who published the workflow (for SharePoint 2013 on-premise only).	Yes

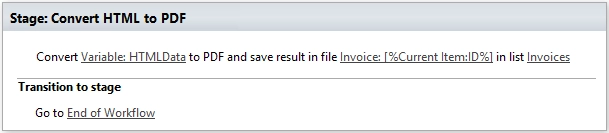

Example¶

Convert HTML to PDF and Save as Attachment¶

This workflow action converts specified HTML to PDF file and save it as attachment in specified item.

Output parameters¶

Parameter	Description	Example
Result file URL	In specific variable will be stored URL at file	`https://contoso.onmicrosoft.com/Invoices/Lists/Employees/Attachments/18/PdfFile.pdf`

Input parameters¶

Parameter	Description	Example
Input HTML	Input html for conversion	[Variable:InputHtml] <div> <h1> Hello! </h1> </div>
File name	The Name of the result PDF file	PdfFile.pdf
Item ID	The ID of the item	18
List Url	Name, url or guid of the list	Employees
Paper Size	Size of the page, it supports the following values: A0 A1 A2 A3 A4 A5 Folio Ledger Legal Letter ...	A4
Is landscape	Page orientation	No
AdminLogin	The login of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.	`admin@contoso.com`
AdminPassword	The password of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.	admin’sP@ssw0rd$
SiteUrl	The URL of the current SharePoint site. This property defines context of the workflow action. All actions performed by workflow action will be executed on specified SharePoint site. If this property is blank it will use current SharePoint site by default.	`https://contoso/SiteUrl [%Workflow Context:Current Site URL%]subSite`
ThrowError	Detects whether workflow should be interrupted in case of error or not.	Yes
RunAsPublisher	Detects whether the workflow action has to be ran under the user account who published the workflow (for SharePoint 2013 on-premise only).	Yes

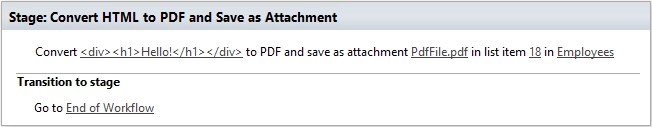

Example¶

Convert HTML to PDF and Save as Attachment in Current Item¶

This workflow action converts specified HTML to PDF file and save it as attachment in current item.

Output parameters¶

Parameter	Description	Example
Result file URL	In specific variable will be stored URL at file	`https://contoso.onmicrosoft.com/Invoices/Lists/Employees/Attachments/18/PdfFile.pdf`

Input parameters¶

Parameter	Description	Example
Input HTML	Input html for conversion	[Variable:InputHtml] <div> <h1> Hello! </h1> </div>
File name	The Name of the result PDF file	PdfFile.pdf
Paper Size	Size of the page, it supports the following values: A0 A1 A2 A3 A4 A5 Folio Ledger Legal Letter ...	A4
Is landscape	Page orientation	No
AdminLogin	The login of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.	`admin@contoso.com`
AdminPassword	The password of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.	admin’sP@ssw0rd$
SiteUrl	The URL of the current SharePoint site. This property defines context of the workflow action. All actions performed by workflow action will be executed on specified SharePoint site. If this property is blank it will use current SharePoint site by default.	`https://contoso/SiteUrl [%Workflow Context:Current Site URL%]subSite`
ThrowError	Detects whether workflow should be interrupted in case of error or not.	Yes
RunAsPublisher	Detects whether the workflow action has to be ran under the user account who published the workflow (for SharePoint 2013 on-premise only).	Yes

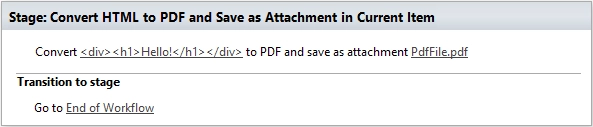

Example¶

Convert HTML to PDF and Save as Attachment in Current Item

Regular Expression Match¶

Searches an input string for all occurrences of a regular expression and returns all the matches. We would recommend you to use Regex Hero to test your expressions. It supports the same syntax as the workflow actions.

Output parameters¶

Parameter	Description	Example
Result	Result dictionary contains list of match groups, each match group consists of self name and match result, if you didn’t define named group the name will be numeric. As you can see in the example it contains two matches with 3 groups inside each match.General structure of dictionary looks like this:- Collection of matches - (0) - GroupName1 - Value - GroupName2 - Value - (1) - GroupName1 - Value - GroupName2 ValueYou can use the workflow action ‘Get an Item from a Dictionary’ to get values from matches. Read the article to understand how to get values from a dictionary using this workflow action. For example you can extract value from the first match and from the named group ‘TaskId’ using such path: (0)/TaskId	[ { "0": "Taks 43:Reject" }, { "TaskId": "43" }, { "Status": "Reject" } ], [ { "0": "Taks 52:Approve" }, { "TaskId": "52" }, { "Status": "Approve" } ]

Input parameters¶

Parameter	Description	Example
String	String to search for matches	Task 43:Reject Task 52:Approve
Expression	Regular expression pattern. This pattern can contain inline options to modify behavior of the regular expression. Such options have to be placed in the beginning of the expression inside brackets with question mark: `(?YOUR_OPTIONS)`. For example options `(?mi)` will allow to process multi line text with case insensitivity. Example of regular expression with options:`(?mi)(?[^>]@[^<])` List of available options: x - allow whitespace and comments s - single line mode m - multi line mode i - case insensitivity n - only allow explicit capture You can find additional information about inline options in the MSDN article.	`Task (?\d+):(?Approve\|Reject)`
ThrowError	Detects whether workflow should be interrupted in case of error or not.	Yes

Parameter

Description

Example

String

String to search for matches

Task 43:Reject Task 52:Approve

Expression

Regular expression pattern. This pattern can contain inline options to modify behavior of the regular expression. Such options have to be placed in the beginning of the expression inside brackets with question mark: (?YOUR_OPTIONS). For example options (?mi) will allow to process multi line text with case insensitivity. Example of regular expression with options:(?mi)(?[^>]*@[^<]*) List of available options:

x - allow whitespace and comments
s - single line mode
m - multi line mode
i - case insensitivity
n - only allow explicit capture

You can find additional information about inline options in the MSDN article.

Task (?\d+):(?Approve|Reject)

ThrowError

Detects whether workflow should be interrupted in case of error or not.

Yes

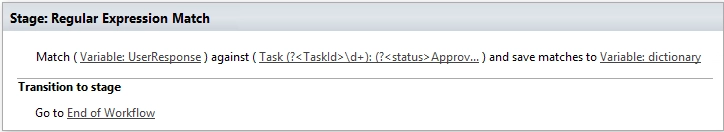

Example¶

Regular Expression Replace¶

In a specified input string, replaces all strings that match a regular expression pattern with a specified replacement string. We would recommend you to use Regex Hero to test your expressions. It supports the same syntax as the workflow actions.

Output parameters¶

Parameter	Description	Example
Result	Result string	`Too_much_whitespace`.

Input parameters¶

Parameter	Description	Example
Expression	Regular expression pattern. This pattern can contain inline options to modify behavior of the regular expression. Such options have to be placed in the beginning of the expression inside brackets with question mark: `(?YOUR_OPTIONS)`. For example options `(?mi)` will allow to process multi line text with case insensitivity. Example of regular expression with options:`(?mi)(?[^>]@[^<])` List of available options: x - allow whitespace and comments s - single line mode m - multi line mode i - case insensitivity n - only allow explicit capture You can find additional information about inline options in the MSDN article.	`\s+`
String	String to search for a match	`Too much whitespace`
Replacement	Replacement string	`_`
ThrowError	Detects whether workflow should be interrupted in case of error or not.	Yes

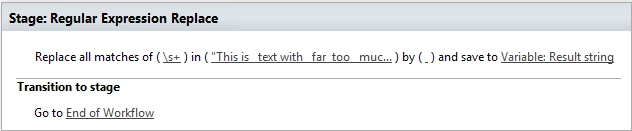

Example¶

Regular Expression Test¶

Indicates whether the regular expression specified in the Regex constructor finds a match in a specified input string. We would recommend you to use Regex Hero to test your expressions. It supports the same syntax as the workflow actions.

Output parameters¶

Parameter	Description	Example
Result	Result boolean	True

Input parameters¶

Parameter	Description	Example
String	String to search for matches	`1298-673-4192`
Expression	Regular expression pattern. This pattern can contain inline options to modify behavior of the regular expression. Such options have to be placed in the beginning of the expression inside brackets with question mark: `(?YOUR_OPTIONS)`. For example options `(?mi)` will allow to process multi line text with case insensitivity. Example of regular expression with options:`(?mi)(?[^>]@[^<])` List of available options: x - allow whitespace and comments s - single line mode m - multi line mode i - case insensitivity n - only allow explicit capture You can find additional information about inline options in the MSDN article.	`\d{4}-\d{3}-\d{4}`
ThrowError	Detects whether workflow should be interrupted in case of error or not.	Yes

Parameter

Description

Example

String

String to search for matches

1298-673-4192

Expression

x - allow whitespace and comments
s - single line mode
m - multi line mode
i - case insensitivity
n - only allow explicit capture

You can find additional information about inline options in the MSDN article.

\d{4}-\d{3}-\d{4}

ThrowError

Detects whether workflow should be interrupted in case of error or not.

Yes

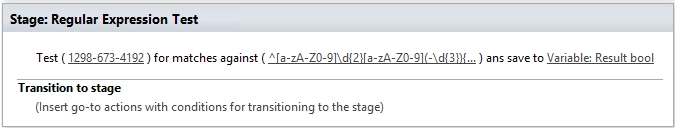

Example¶
