icon Ink Sketch

Allows a user to leave a drawing or handwritten note. Use the control to collect signatures, drawings, diagrams, schemes, or notes on an image.

This page contains a detailed description of the control properties and JavaScript samples, which you can use with this control.

Ink Sketch control preview


Properties

Here you can find properties available for the Ink Sketch control.

Title

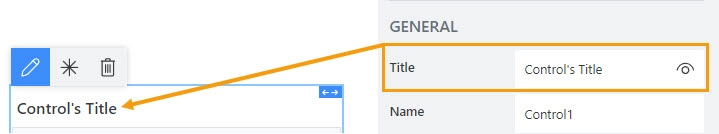

Specify text of the title that will appear next to the control.

Control's title

Can also toggle Title’s visibility on/off:

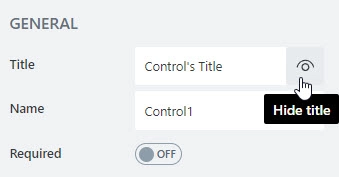

Hide control's title

Title can be changed directly on the form after a double click:

Edit control's title

JavaScript

This code will allow you to get or set the control’s title dynamically:

// returns the control's title as a string
fd.control('Control1').title;

// sets the control's title
fd.control('Control1').title = 'Last Name';

Name

A unique identifier for the control.

Control's name

The Name property is used in JavaScript to select a specific control.

JavaScript

The Name property allows to work with the control via JavaScript code, like this:

fd.spRendered(() => {
    // can access the control using its Name:
    fd.control('Control1');
 });

Layout

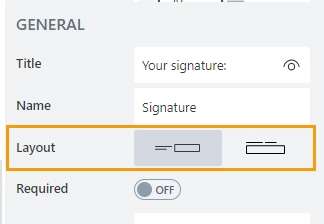

Define whether the Title will appear to the left of the control or directly above it:

Layout property

Orientation can also be changed directly in the context menu of the selected control:

Edit layout property

Required

Define whether the control will be required to submit the form or not:

Control's required status

Required status can also be changed directly on the form via the Asterisk button:

Control's required status button on the form

JavaScript

This code allows you to get and set control’s required status

// returns the control's required status as true/false
fd.control('Control1').required;

// sets the control's required status
fd.control('Control1').required = true;

Width/Height

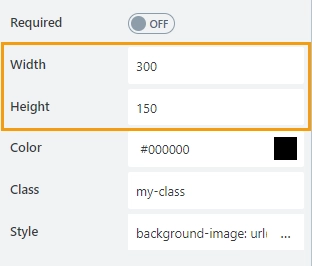

The properties define the width and height of the canvas in pixels.

Width and height properties

Color

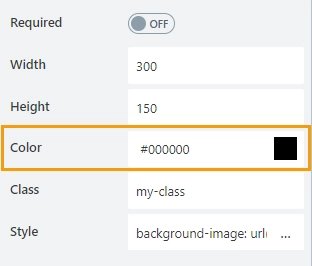

Defines the ink color.

Color property

Class

Add a CSS class to the control, which comes in handy with CSS or even JavaScript code. This will work like class attribute for an HTML tag.

Control's class

Same class can be applied to multiple controls, and then you can use CSS to modify the appearance of these controls.

Style

Add custom CSS style to the control. This will work like style attribute for an HTML tag.

Control's style

You can apply different styles to the control. For example, the following style will add a shadow under the control:

box-shadow: 0 9px #999;

And this makes the control invisible to user (but still usable with JavaScript):

display: none;

Save to

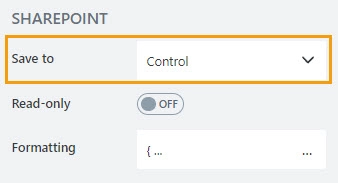

Select an existing Multiline Plain Text column or create a new one in the current SharePoint List to store control’s data. It will automatically render control in SharePoint list view.

Save to property

Read-only

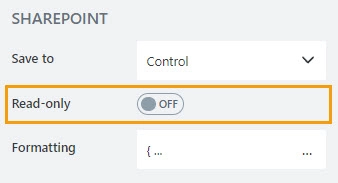

Define whether a user can view or edit the contents of the control:

Read-only property

Width

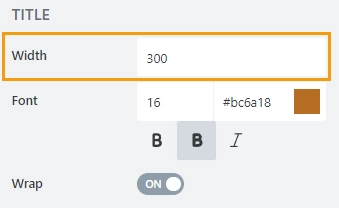

Specify in pixels how much space should the control’s title take.

Control's Title width

Font

Change the formatting of the control’s title using these settings:

  • font size,

  • font color; use the color picker or enter the Hex color code,

  • font style: normal, bold, or italic.

Control's Title font size

Wrap

Select if the title’s text should wrap in multiple lines when there is not enough space, or just be shortened until it fits (with dots… at the end).

Control's Title wrap

JavaScript framework

In this section, you can find basic examples of how to work with the control using JavaScript.

If you are not familiar with the JavaScript framework, get started with the JavaScript basics.

Note

The control is only accessible once the form is rendered, so all calls to the control must be inside fd.spRendered event:

fd.spRendered(() => {
    // hide the control
    fd.control('Control1').hidden = true;
    // show the control
    fd.control('Control1').hidden = false;
});

Get or set control value

Get or set the Ink Sketch control value. The control value is stored as a Base64 string.

// get control value as a Base64 string
fd.control('Control1').value;

Get HTML element

Access HTML element inside the control in order to modify it, hide it, or do something else.

// access control's HTML
const htmlControl = fd.control('Control1').$el;

Hide control

Hide a control from a user. The control value can still be accessed and changed with JavaScript.

// hide control
fd.control('Control1').hidden = true;

// show control
fd.control('Control1').hidden = false;

Clear canvas

Clear the control value.

fd.control('Control1').clear();

Handle change event

Execute a function when a control value has been changed:

fd.control('Control1').$on('change', value => {
    // log changes to browser's console
    console.log('New value: ' + value);
});

Make control required

Make a control required or optional:

// make control required
fd.control('Control1').required = true;

// make control not required
fd.control('Control1').required = false;

Disable control

Disable the control. The control value can still be changed with JavaScript and saved.

// disable control
fd.control('Control1').disabled = true;

// enable control
fd.control('Control1').disabled = false;

Change canvas size

Define the canvas dimensions in pixels.

// define canvas width
fd.control('Control1').width = 300;

// define canvas height
fd.control('Control1').height = 300;

Set ink color

Set the ink color. Define the color in the text, hex, or RGB format.

// set the ink color to red
fd.control('Control1').inkColor = 'red';

// set the ink color to black
fd.control('Control1').inkColor = 'rgb(0,0,0)';

// set the ink color to blue
fd.control('Control1').inkColor = '#0000FF';
