SharePoint Utils

Start a List Workflow (2013)

Start a list level workflow and pass input parameters, if they were specified Attention! The workflow action can run only 2013 workflows, to run 2010 workflow you can use Coordination actions

Input parameters

Parameter

Description

Example

Workflow name

Name of the workflow which will be started

Send notifications

Item ID

Item ID

44 or [Variable:ItemId]

List name

Title, Url or guid of list

Clients

Input parameters

Dictionary that contains input parameters for workflow

[Variable:InputParameters]

AdminLogin

The login of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.

admin@contoso.com

AdminPassword

The password of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.

admin’sP@ssw0rd$

SiteUrl

The URL of the current SharePoint site. This property defines context of the workflow action. All actions performed by workflow action will be executed on specified SharePoint site. If this property is blank it will use current SharePoint site by default.

https://contoso/SiteUrl [%Workflow Context:Current Site URL%]subSite

ThrowError

Detects whether workflow should be interrupted in case of error or not.

Yes

RunAsPublisher

Run under user account who published workflow (for OnPremise only)

Yes

Example

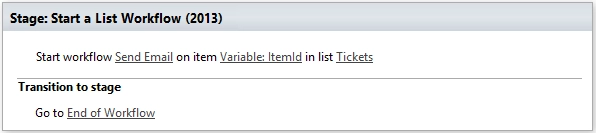

Start a List Workflow (2013)

Stop a List Item Workflow (2013)

Stops a workflow on the specified list item.

Input parameters

Parameter

Description

Example

Workflow name

Name of the workflow which will be started

Send notifications

Item ID

Item ID

44 or [Variable:ItemId]

List name

Title, Url or guid of list

Clients

AdminLogin

The login of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.

admin@contoso.com

AdminPassword

The password of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.

admin’sP@ssw0rd$

SiteUrl

The URL of the current SharePoint site. This property defines context of the workflow action. All actions performed by workflow action will be executed on specified SharePoint site. If this property is blank it will use current SharePoint site by default.

https://contoso/SiteUrl [%Workflow Context:Current Site URL%]subSite

ThrowError

Detects whether workflow should be interrupted in case of error or not.

Yes

RunAsPublisher

Run under user account who published workflow (for OnPremise only)

Yes

Example

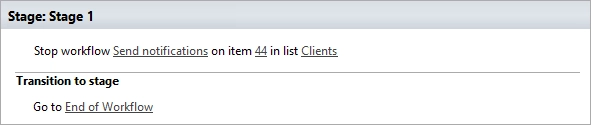

Stop a List Workflow (2013)

Get List Item Workflows

Gets workflows that were run on the specific list item.

Output parameters

Parameter

Description

Example

Result

Dictionary with information about the specified workflow

[Variable:ResultDictionary]

The result dictionary contains next fields:

Name

Type

Description

Id

Guid

Guid of the workflow instance

Started

DateTime

Date when the workflow was started

Updated

DateTime

Date when the workflow was updated

InternalStatus

String

Started
Running
Terminated
Suspended

UserStatus

String

Name of the current stage in the workflow

Name

String

Name of the workflow

Input parameters

Parameter

Description

Example

Item ID

Item ID

44 or [Variable:ItemId]

List name

Title, Url or guid of list

Clients

AdminLogin

The login of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.

admin@contoso.com

AdminPassword

The password of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.

admin’sP@ssw0rd$

SiteUrl

The URL of the current SharePoint site. This property defines context of the workflow action. All actions performed by workflow action will be executed on specified SharePoint site. If this property is blank it will use current SharePoint site by default.

https://contoso/SiteUrl [%Workflow Context:Current Site URL%]subSite

ThrowError

Detects whether workflow should be interrupted in case of error or not.

Yes

RunAsPublisher

Run under user account who published workflow (for OnPremise only)

Yes

Example

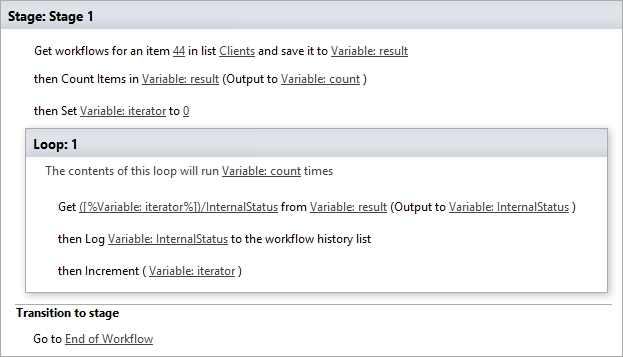

Get List Item Workflows

Start a Site Workflow (2013)

Start a site level workflow and pass input parameters, if they were specified Attention! The workflow action can run only 2013 workflows, to run 2010 workflow you can use Coordination actions

Input parameters

Parameter

Description

Example

Workflow name

Name of the workflow which will be started

Send notifications

Input parameters

Dictionary that contains input parameters for workflow

[Variable:InputParameters]

AdminLogin

The login of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.

admin@contoso.com

AdminPassword

The password of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.

admin’sP@ssw0rd$

SiteUrl

The URL of the current SharePoint site. This property defines context of the workflow action. All actions performed by workflow action will be executed on specified SharePoint site. If this property is blank it will use current SharePoint site by default.

https://contoso/SiteUrl [%Workflow Context:Current Site URL%]subSite

ThrowError

Detects whether workflow should be interrupted in case of error or not.

Yes

RunAsPublisher

Run under user account who published workflow (for OnPremise only)

Yes

Example

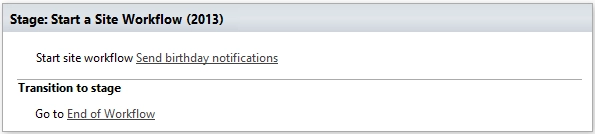

Start a Site Workflow (2013)

Stop a Site Workflow (2013)

Stops a site level workflow.

Input parameters

Parameter

Description

Example

Workflow name

Name of the workflow which will be started

Send notifications

AdminLogin

The login of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.

admin@contoso.com

AdminPassword

The password of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.

admin’sP@ssw0rd$

SiteUrl

The URL of the current SharePoint site. This property defines context of the workflow action. All actions performed by workflow action will be executed on specified SharePoint site. If this property is blank it will use current SharePoint site by default.

https://contoso/SiteUrl [%Workflow Context:Current Site URL%]subSite

ThrowError

Detects whether workflow should be interrupted in case of error or not.

Yes

RunAsPublisher

Run under user account who published workflow (for OnPremise only)

Yes

Example

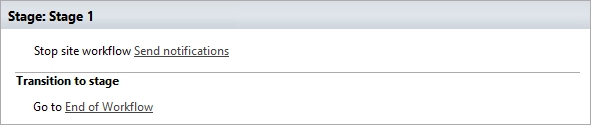

Stop a Site Workflow (2013)

Get Site Workflows

Get workflows that were run on the site.

Output parameters

Parameter

Description

Example

Result

Dictionary with information about the specified workflow

[Variable:ResultDictionary]

The result dictionary contains next fields:

Name

Type

Description

Id

Guid

Guid of the workflow instance

Started

DateTime

Date when the workflow was started

Updated

DateTime

Date when the workflow was updated

InternalStatus

String

Started
Running
Terminated
Suspended

UserStatus

String

Name of the current stage in the workflow

Name

String

Name of the workflow

Input parameters

Parameter

Description

Example

AdminLogin

The login of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.

admin@contoso.com

AdminPassword

The password of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.

admin’sP@ssw0rd$

SiteUrl

The URL of the current SharePoint site. This property defines context of the workflow action. All actions performed by workflow action will be executed on specified SharePoint site. If this property is blank it will use current SharePoint site by default.

https://contoso/SiteUrl [%Workflow Context:Current Site URL%]subSite

ThrowError

Detects whether workflow should be interrupted in case of error or not.

Yes

RunAsPublisher

Run under user account who published workflow (for OnPremise only)

Yes

Example

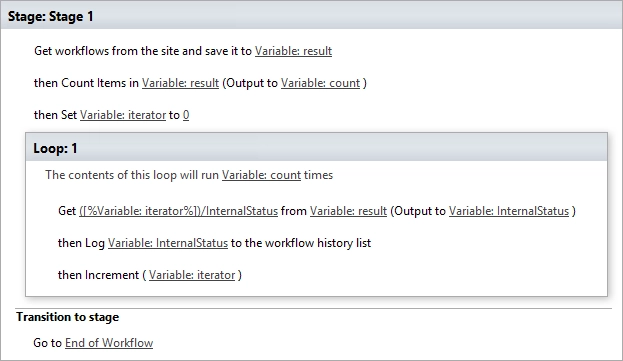

Get Site Workflows

Call SharePoint REST Service

The action simplifies using of SharePoint REST API it automatically setup HTTP header and adds form digest.

Output parameters

Parameter

Description

Example

Response Status Code

The status code of the executed query

Variable:StatusCode

Response Content

The result of the executed query

Variable:ResponseContent

Input parameters

Parameter

Description

Example

Address

Uri of the remote resource

https://plumsail.sharepoint.com/sites/dev/_api/web/lists/getbytitle('Users')/Fields

RequestType

Type of the request. The action supports the following values: GET, POST, PUT, DELETE, MERGE

POST

RequestHeaders

Dictionary value that will be added to request headers. Basically the action fill-in the following headers: Authorization, X-RequestDigest, Content-Type, Content-Lenght

{
  "X-SomeCustomHeader": "CustomHeaderValue"
}

Request Content

Dictionary value that will be send as JSON to the resource

{
  "__metadata": {
    "type": "SP.Field"
  },
  "Title": "My New Field",
  "FieldTypeKind": 2,
  "Required": "true",
  "EnforceUniqueValues": "false",
  "StaticName": "MyNewField"
}

AdminLogin

The login of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.

admin@contoso.com

AdminPassword

The password of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.

admin’sP@ssw0rd$

SiteUrl

The URL of the current SharePoint site. This property defines context of the workflow action. All actions performed by workflow action will be executed on specified SharePoint site. If this property is blank it will use current SharePoint site by default.

https://contoso/SiteUrl [%Workflow Context:Current Site URL%]subSite

ThrowError

Detects whether workflow should be interrupted in case of error or not.

Yes

RunAsPublisher

Run under user account who published workflow (for OnPremise only)

Yes

Example

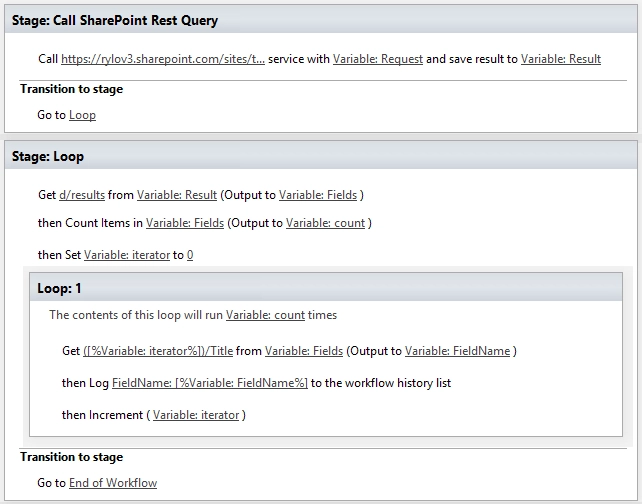

Call SharePoint REST Query from workflow

Get User Properties

Get User Properties to a Dictionary

Output parameters

Parameter

Description

Example

Properties

Dictionary with found user properties and their values

[Variable:Properties]

Input parameters

Parameter

Description

Example

UserIdentity

User ID, Email or login name

roman@plumsail.onsharepoint.com

AdminLogin

The login of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.

admin@contoso.com

AdminPassword

The password of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.

admin’sP@ssw0rd$

SiteUrl

The URL of the current SharePoint site. This property defines context of the workflow action. All actions performed by workflow action will be executed on specified SharePoint site. If this property is blank it will use current SharePoint site by default.

https://contoso/SiteUrl [%Workflow Context:Current Site URL%]subSite

ThrowError

Detects whether workflow should be interrupted in case of error or not.

Yes

RunAsPublisher

Run under user account who published workflow (for OnPremise only)

Yes

Example

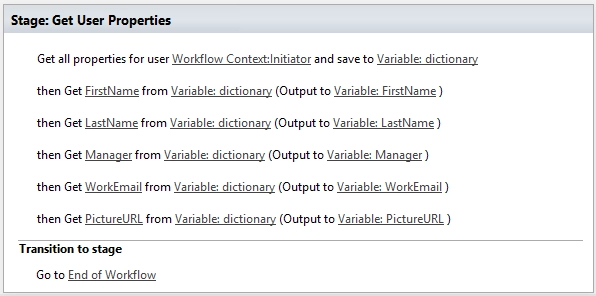

Get user profile properties

Get User Property by Name

Get specific user property as string value

Output parameters

Parameter

Description

Example

Property value

The string value of the property

[Variable:PropertyValue]

Input parameters

Parameter

Description

Example

Property Name

Name of the property

WorkEmail

UserIdentity

User ID, Email or login name

roman@plumsail.onsharepoint.com

AdminLogin

The login of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.

admin@contoso.com

AdminPassword

The password of the user who has appropriate permissions to perform operation. This parameter doesn’t exist in the version for SharePoint 2013 on-premise.

admin’sP@ssw0rd$

SiteUrl

The URL of the current SharePoint site. This property defines context of the workflow action. All actions performed by workflow action will be executed on specified SharePoint site. If this property is blank it will use current SharePoint site by default.

https://contoso/SiteUrl [%Workflow Context:Current Site URL%]subSite

ThrowError

Detects whether workflow should be interrupted in case of error or not.

Yes

RunAsPublisher

Run under user account who published workflow (for OnPremise only)

Yes

Example

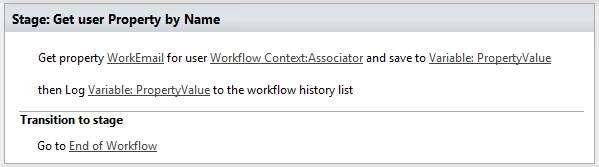

Get specific user profile property

Get Site Option Value as String

Read string value from Site Options (Property Bag)

Output parameters

Parameter

Description

Example

Property value

The string value of the property

[Variable:ResultString]

Input parameters

Parameter

Description

Example

Property Name

Name of the property

PortalSettings [Variable:SettingsKey]

Example

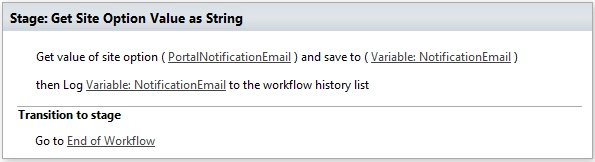

Get Site Option Value as String

Get Site Option Value as Dictionary

Read json value from Site Options (Property Bag) and save it to Dictionary variable

Output parameters

Parameter

Description

Example

Property value

Dictionary with found user properties and their values

[Variable:ResultDictionary]

Input parameters

Parameter

Description

Example

Property Name

Name of property

PortalSettings [Variable:SettingsKey]

Example

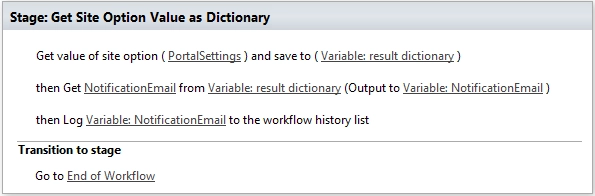

Get Site Option Value as Dictionary

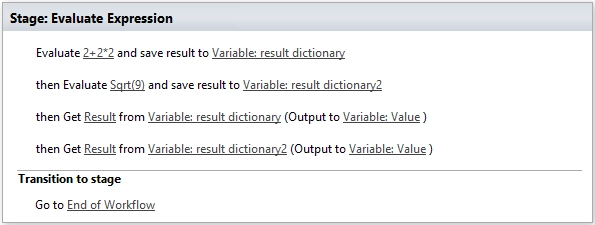

Evaluate expression

Evaluate mathematical expressions and save result to Dictionary with Resultas key We use NCalc framework as mathematical expressions evaluator. You can use it to evaluate logical or arithmetical expressions. For example 2 * 2 or if(3 % 2 = 1, true, false). This workflow action can help you to calculate complex formulas as well as evaluate complex logical expressions.

To get more informaiton about available operators, values and functions visit following links:

Output parameters

Parameter

Description

Example

Result dictionary

Dictionary that contains output result in “Result” key

[Variable:ResultDictionary]

Input parameters

Parameter

Description

Example

Expression

Expression for evaluation

2+2*2
sqrt(9)
sin(1)
true or false = true

ThrowError

Detects whether workflow should be interrupted in case of error or not.

Yes

RunAsPublisher

Run under user account who published workflow (for OnPremise only)

Yes

Example

Evaluate expression

Parse XML to Dictionary

The workflow action receives XML string and convert it to a Dictionary.

Output parameters

Parameter

Description

Example

Result dictionary

Output dictionary value. Please check out the following article to know more. How to work with dictionaries in SharePoint 2013 and Office 365 workflow

{
   "recurrence":{
      "rule":{
         "firstDayOfWeek":"su",
         "repeat":{
            "daily":{
               "@dayFrequency":"1"
            }
         },
         "repeatInstances":"10"
      }
   }
}

Input parameters

Parameter

Description

Example

Expression

Input XML string

<recurrence>
    <rule>
        <firstDayOfWeek>su</firstDayOfWeek>
        <repeat>
            <daily dayFrequency="1" />
        </repeat>
        <repeatInstances>10</repeatInstances>
    </rule>
</recurrence>

ThrowError

Detects whether workflow should be interrupted in case of error or not.

Yes

RunAsPublisher

Run under user account who published workflow (for OnPremise only)

Yes

Example

Parse XML to Dictionary

HTML Encode

The workflow action receives HTML string and encode it.

Output parameters

Parameter

Description

Example

Result

Output string value

&lt;div&gt;
    &lt;span&gt;
            Hello!
    &lt;/span&gt;
&lt;/div&gt;

Input parameters

Parameter

Description

Example

HTML

Input HTML string

 <div>
     <span>
            Hello!
     </span>
</div>

ThrowError

Detects whether workflow should be interrupted in case of error or not.

Yes

RunAsPublisher

Run under user account who published workflow (for OnPremise only)

Yes

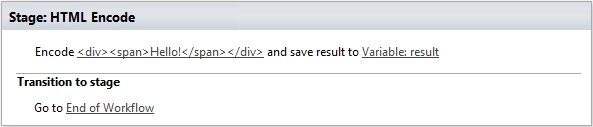

Example

HTML Encode

Build Dictionary from JSON string

The workflow action receives JSON string and convert it to a Dictionary.

Output parameters

Parameter

Description

Example

ResultDictionary

Output dictionary value. Please check out the following article to know more. How to work with dictionaries in SharePoint 2013 and Office 365 workflow

{
   "recurrence":{
      "rule":{
         "firstDayOfWeek":"su",
         "repeat":{
            "daily":{
               "@dayFrequency":"1"
            }
         },
         "repeatInstances":"10"
      }
   }
}

Input parameters

Parameter

Description

Example

JsonString

Input JSON string

{
   "recurrence":{
      "rule":{
         "firstDayOfWeek":"su",
         "repeat":{
            "daily":{
               "@dayFrequency":"1"
            }
         },
         "repeatInstances":"10"
      }
   }
}

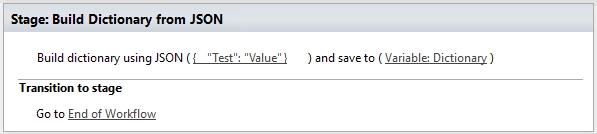

Example

Build Dictionary from JSON string

Increment

Increment an integer variable

Input parameters

Parameter

Description

Example

IntValue

Name of an integer variable

[Variable:Iterator]

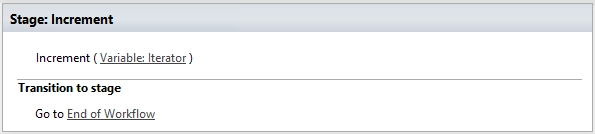

Example

Increment a Variable

Decrement

Decrement an integer variable

Input parameters

Parameter

Description

Example

IntValue

Name of an integer variable

[Variable:Iterator]

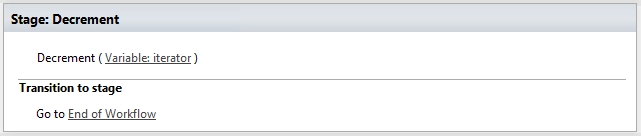

Example

Decrement a Variable
